STEP 1
Please Select an Axis

STEP 2

MGS-HBG-08
MGS-HBG-08

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 5[5]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

MGS-PSC-XZ
MGS-PSC (X/Z)

Orientation: Horizontal, Vertical
Max Load – Vertical – lbs.: 10
Max Speed – Horizontal [Vertical] – mm/sec: 2000[1000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 500mm

View and Configure

MCS-HBG-12
MCS-HBG-12

Orientation: Horizontal
Max Load – Vertical – lbs.: 10
Max Speed – Horizontal [Vertical] – mm/sec: 5000[500]
Acceleration (Gs): 5
Z-axis Stroke: 100mm - 300mm

View and Configure

MGS-TBG-12
MGS-TBG-12

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 10[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-HBG-12
MGS-HBG-12

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 10[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MGS-R6D-SCREW-Z
MGS-R6D (Screw Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 300mm

View and Configure

MGS-R5D-SCREW-Z
MGS-R5D (Screw Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 300mm

View and Configure

MCS-R15-SCREW-Z
MCS-R15 Screw

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[500]
Acceleration (Gs): 2
Z-axis Stroke: 100mm - 300mm

View and Configure

MGS-R5D
MGS-R5D (Belt Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 500mm

View and Configure

MCS-R15-BELT-Z
MCS-R15 Belt

Orientation: Horizontal
Max Load – Vertical – lbs.: 15
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 500mm

View and Configure

MGS-PSC-XXYY
MGS-PSC XXYY

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

MDS-PSC
MDS-PSC

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

MCS-R6S SCREW Z
MCS-R6S Screw Z

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 650mm

View and Configure

MCS-R6S BELT Z
MCS-R6S Belt Z

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

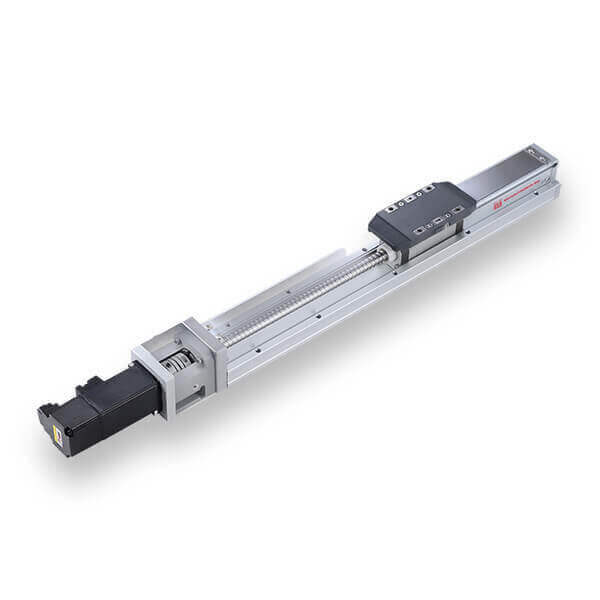

GTH5 Actuator

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20]
Moment Load: 911 in-lbs[103 N-m]

View and Configure

MSA-PSC
MSA-PSC Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 15[15]
Max Speed – Horizontal [Vertical] – mm/sec: 1270[635]
Moment Load: 15 in-lbs[1.7 N-m]

View and Configure

MSA-NBC
MSA-NBC Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 17[17]
Max Speed – Horizontal [Vertical] – mm/sec: 2540[1270]
Moment Load: 300 in-lbs[34 N-m]

View and Configure

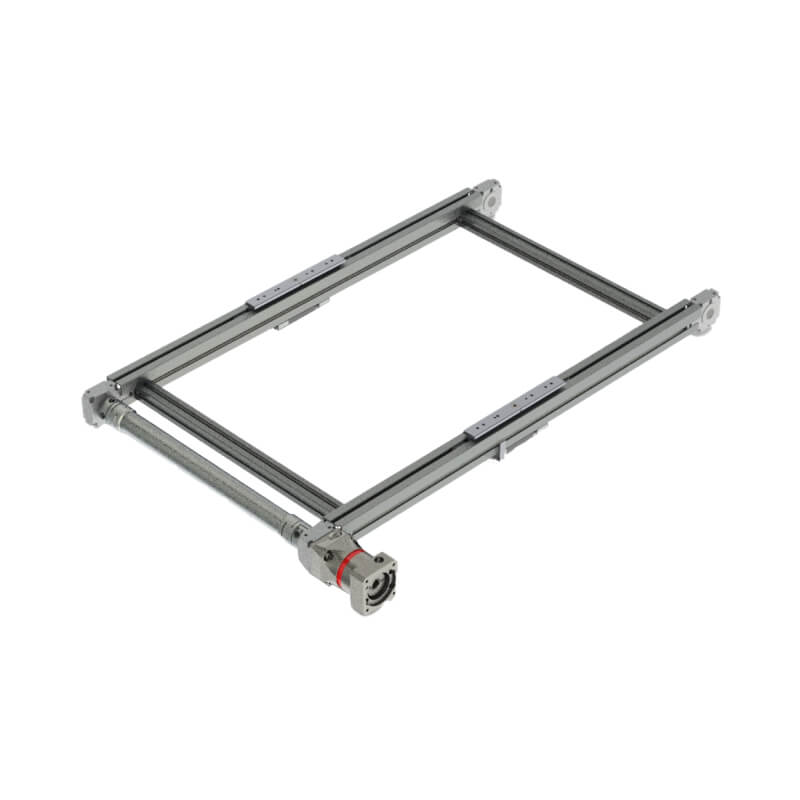

MDS-NBC
MDS-NBC

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[20]
Max Speed – Horizontal [Vertical] – mm/sec: 2500[1250]
Acceleration (Gs): 4

View and Configure

MGS-628
MGS-628

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[20]
Max Speed – Horizontal [Vertical] – mm/sec: 2000[2000]
Acceleration (Gs): 1

View and Configure

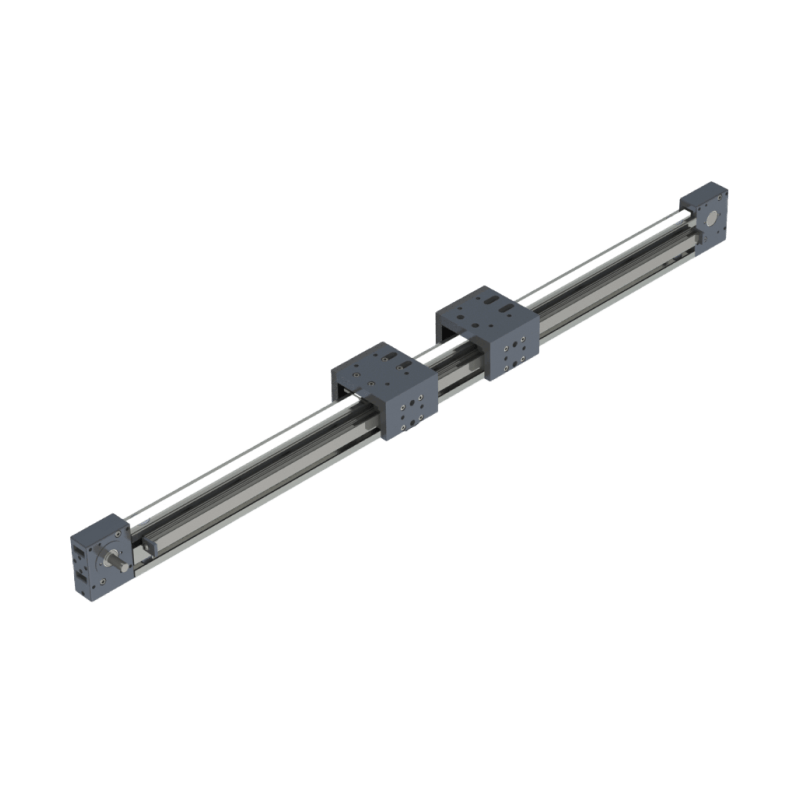

MDC-R15
MDC-R15

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 310 in-lbs[35 N-m]

View and Configure

MDC-628
MDC-628

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[10]
Max Speed – Horizontal [Vertical] – mm/sec: 6230[3115]
Moment Load: 25 in-lbs[2.8 N-m]

View and Configure

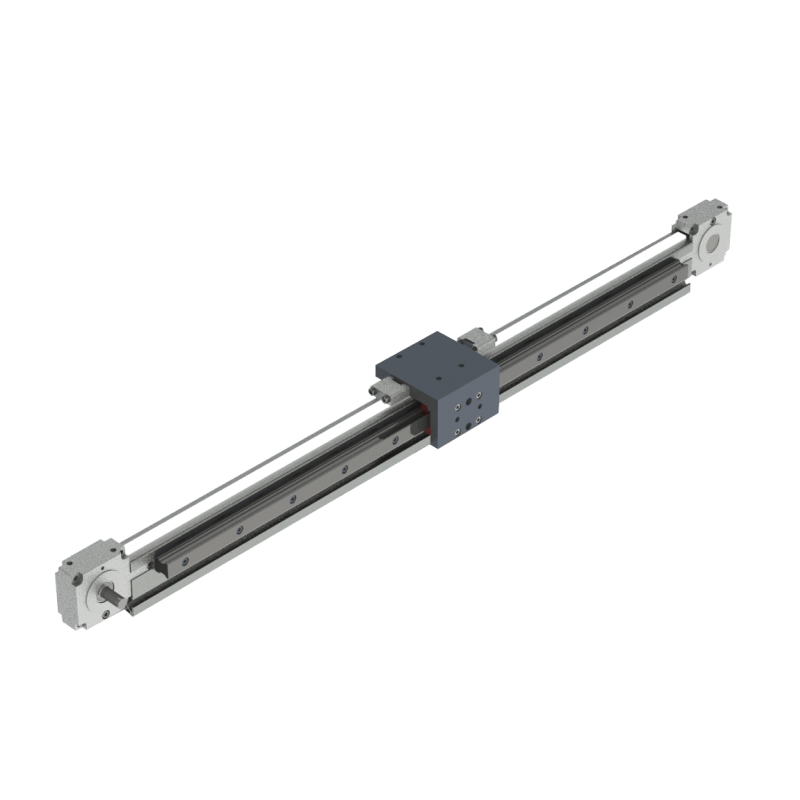

MAA-R15
MAA-R15

Ships Fast

Access Series

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 310 in-lbs[35 N-m]

View and Configure

MGS-R15
MGS-R15

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[20]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

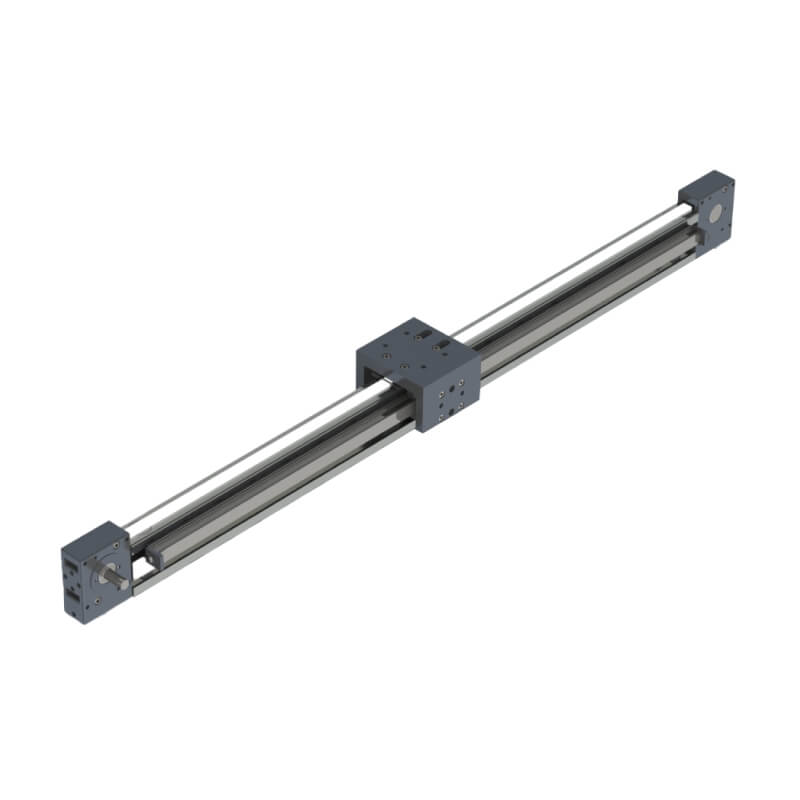

MSA-R15
MSA-R15 Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[10]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 212 in-lbs[24 N-m]

View and Configure

MSA-628
MSA-628 Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 20[10]
Max Speed – Horizontal [Vertical] – mm/sec: 6230[3115]
Moment Load: 53 in-lbs[6 N-m]

View and Configure

MCS-PSC BELT Z
MCS-PSC

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 21[21]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1
Z-axis Stroke: 150mm - 300mm

View and Configure

MAA-R5D
MAA-R5D

Ships Fast

Access Series

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 25[25]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 310 in-lbs[35 N-m]

View and Configure

MSA-R5D
MSA-R5D Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 25[25]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 495 in-lbs[56 N-m]

View and Configure

MDS-628
MDS-628

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 25[25]
Max Speed – Horizontal [Vertical] – mm/sec: 6000[3000]
Acceleration (Gs): 3

View and Configure

MCS-HBG-25
MCS-HBG-25

Orientation: Horizontal
Max Load – Vertical – lbs.: 25
Max Speed – Horizontal [Vertical] – mm/sec: 5000[2000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 600mm

View and Configure

MGS-R6D BELT Z
MGS-R6D (Belt Z)

Orientation: Horizontal
Max Load – Vertical – lbs.: 25
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MCS-R6Y
MCS-R6Y

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 25[25]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-M6S
MGS-M6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 40[40]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2

View and Configure

MGS-R6Y-XXYY
MGS-R6Y XY

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2

View and Configure

MGS-R6Y
MGS-R6Y XZ

Orientation: Horizontal
Max Load – Vertical – lbs.: 50
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MCS-HBG-50
MCS-HBG-50

Orientation: Horizontal
Max Load – Vertical – lbs.: 50
Max Speed – Horizontal [Vertical] – mm/sec: 5000[500]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 900mm

View and Configure

MDC-R5D
MDC-R5D

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50 ]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MDC-M6S
MDC-M6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[25]
Max Speed – Horizontal [Vertical] – mm/sec: 6230[3115]
Moment Load: 25 in-lbs[2.8 N-m]

View and Configure

MDC-R6S
MDC-R6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[25]
Max Speed – Horizontal [Vertical] – mm/sec: 16230[3115]
Moment Load: 25 in-lbs[2.8 N-m]

View and Configure

MGS-TBG-25
MGS-TBG-25

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 1000mm

View and Configure

MGS-R6S
MGS-R6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

MGS-HBG-25
MGS-HBG-25

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

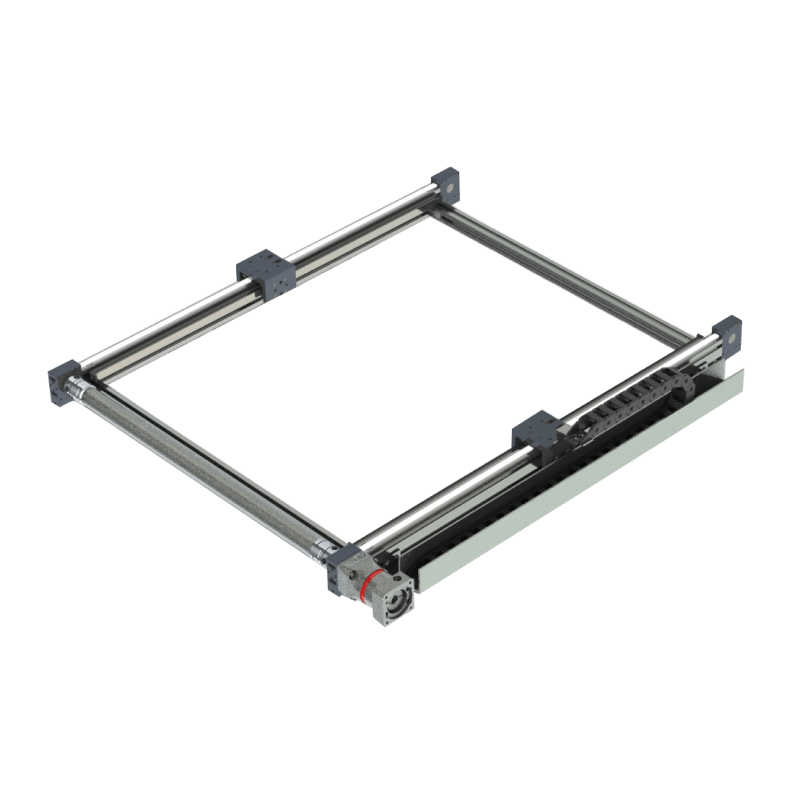

MDS-R15
MDS-R15

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 1

View and Configure

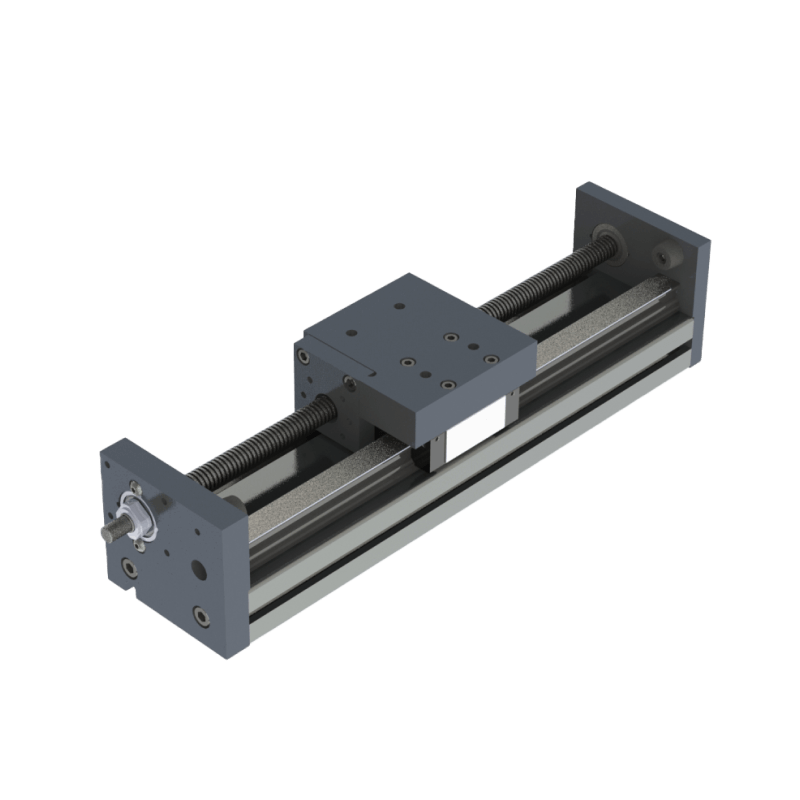

MSA-SRT
MSA-SRT Actuator

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20]
Moment Load: 300 in-lbs[34 N-m]

View and Configure

MSA-R6S
MSA-R6S Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 354 in-lbs[40 N-m]

View and Configure

MSA-M6S
MSA-M6S Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 50[25]
Max Speed – Horizontal [Vertical] – mm/sec: 6230[3115]
Moment Load: 71 in-lbs[8 N-m]

View and Configure

MSA-BT1
MSA-BT1 Actuator

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 50[50]
Max Speed – Horizontal [Vertical] – mm/sec: 2000[2000]
Moment Load: N/A in-lbs

View and Configure

MSA-R6D
MSA-R6D Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 75[75]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 800 in-lbs[90 N-m]

View and Configure

MSA-14Z
MSA-14Z Actuator

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 75[75]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 1600 in-lbs[180 N-m]

View and Configure

MDS-M6S
MDS-M6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 75[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[3000]
Acceleration (Gs): 5

View and Configure

MCS-UC1
MCS-UC1

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 75[75]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1000mm

View and Configure

MSD-SB1
MDS-SB1

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 5

View and Configure

MDC-R6D
MDC-R6D

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MGS-TBG-50
MGS-TBG-50

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 2000mm

View and Configure

MGS-HBG-50
MGS-HBG-50

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MDS-R6S
MDS-R6S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 100[100]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MSA-SB1
MSA-SB1 Belt Drive

Ships Fast

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 100[50]
Max Speed – Horizontal [Vertical] – mm/sec: 5050[2525]
Moment Load: N/A in-lbs

View and Configure

MCS-UC2
MCS-UC2

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 125[125]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 1500mm

View and Configure

MAA-R6D
MAA-R6D

Ships Fast

Access Series

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 150[75]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 575 in-lbs[65 N-m]

View and Configure

MAA-R6S
MAA-R6S

Ships Fast

Access Series

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 150[75]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 575 in-lbs[65 N-m]

View and Configure

MGS-UC1
MGS-UC1

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 150[150]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1000mm

View and Configure

MDC-14S
MDC-14S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 200[100]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: 1600 in-lbs[180 N-m]

View and Configure

MGS-14S
MGS-14S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 200[200]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MSA-14S
MSA-14S Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 200[100]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: 567 in-lbs[64 N-m]

View and Configure

MTA-R20
Telescopic Actuators MTA-R20

Orientation: Vertical
Max Load – Vertical – lbs.: 250
Max Speed – Vertical – mm/sec: 3000
Moment Load: 1500 in-lbs[170 N-m]

View and Configure

MSA-DRT
MSA-DRT Actuator

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 250[250]
Max Speed – Horizontal [Vertical] – mm/sec: 250, 500, 1000[5, 10, 20]
Moment Load: 2124 in-lbs[240 N-m]

View and Configure

MSA-BT2 Actuator

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 250[250]
Max Speed – Horizontal [Vertical] – mm/sec: 2000[2000]
Moment Load: N/A in-lbs

View and Configure

MSA-135
MSA-135 Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 250[250]
Max Speed – Horizontal [Vertical] – mm/sec: 5080[5080]
Moment Load: 460 in-lbs[52 N-m]

View and Configure

MGS-UC4
MGS-UC4

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 300[300]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1500mm

View and Configure

MGS-UC2
MGS-UC2

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 300[300]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 1500mm

View and Configure

MDC-14H
MDC-14H

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 400[300]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: 3200 in-lbs[361 N-m]

View and Configure

MDS-14S
MDS-14S

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 400[400]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MSA-14H
MSA-14H Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 400[300]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: 1132 in-lbs[128 N-m]

View and Configure

MDS-SB2
MDS-SB2

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 437[437]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MGS-14H
MGS-14H

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5
Z-axis Stroke: 150mm - 8000mm

View and Configure

MSS-R20
Stainless Steel Linear Rail Actuator MSS-R20

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[250]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MAA-R20
MAA-R20

Ships Fast

Access Series

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MGS-R20
MGS-R20

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3

View and Configure

MRA-RTU-0
MRA-RTU-0

Orientation: Horizontal, Vertical
Robot Mass – Horizontal [Vertical] – lbs.: 500[500]
Robot Reach: 2200 in-lbs[248 N-m]

View and Configure

MSA-SB2
MSA-SB2 Belt Drive

Ships Fast

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 500[250]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: N/A in-lbs

View and Configure

MSA-R20 Rail Actuator

Ships Fast

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MSA-BT5
MSA-BT5 Actuator

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 500[500]
Max Speed – Horizontal [Vertical] – mm/sec: 2000[2000]
Moment Load: N/A in-lbs

View and Configure

MDS-14H
MDS-14H

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 800[800]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MCS-UC3
MCS-UC3

Orientation: Vertical
Max Load – Vertical – lbs.: 900
Max Speed – Horizontal [Vertical] – mm/sec: 3000[2000]
Acceleration (Gs): 2
Z-axis Stroke: 150mm - 3000mm

View and Configure

MGS-UC3
MGS-UC3

Orientation: Vertical
Max Load – Vertical – lbs.: 900
Max Speed – Horizontal [Vertical] – mm/sec: 3000[3000]
Acceleration (Gs): 3
Z-axis Stroke: 150mm - 2000mm

View and Configure

MDC-R20
MDC-R20

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 1000[300]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Moment Load: 2200 in-lbs[248 N-m]

View and Configure

MDS-R20
MDS-R20

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 1000[1000]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 3

View and Configure

MRA-RTU-1
MRA-RTU-1

Orientation: Horizontal, Vertical
Robot Mass – Horizontal [Vertical] – lbs.: 1000[500]
Robot Reach: 4400 in-lbs[497 N-m]

View and Configure

MSA-SB5
MSA-SB5 Belt Drive

Ships Fast

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 1000[500]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: N/A in-lbs

View and Configure

MSA-R2D
MSA-R2D Actuator

Orientation: Horizontal, Vertical
Max Load – Horizontal [Vertical] – lbs.: 1000[500]
Max Speed – Horizontal [Vertical] – mm/sec: 10160[5080]
Moment Load: 4400 in-lbs[497 N-m]

View and Configure

MRA-RTU-1i
MRA-RTU-1i

Orientation: Inverted
Robot Mass – Horizontal [Vertical] – lbs.: 1000[1000]
Robot Reach: 4400 in-lbs[497 N-m]

View and Configure

MDS-SB5
MDS-SB5

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 1150[1150]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MRA-RTU-2
MRA-RTU-2

Orientation: Horizontal
Robot Mass – Horizontal – lbs.: 2000
Robot Reach: 8000 in-lbs[904 N-m]

View and Configure

MDS-SBH
MDS-SBH

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 2500[2500]
Max Speed – Horizontal [Vertical] – mm/sec: 5000[5000]
Acceleration (Gs): 5

View and Configure

MSA-SBH
MSA-SBH Belt Drive

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 2500[1250]
Max Speed – Horizontal [Vertical] – mm/sec: 15240[7620]
Moment Load: N/A in-lbs

View and Configure

MRS-RTU-3
MRA-RTU-3

Orientation: Horizontal
Robot Mass – Horizontal – lbs.: 3000
Robot Reach: 8800 in-lbs[995 N-m]

View and Configure

MSA-SB7
MSA-SB7 Belt Drive

Orientation: Horizontal, Vertical
Max Force – Horizontal [Vertical] – lbf.: 6000[3000]
Max Speed – Horizontal [Vertical] – mm/sec: 15240[7620]
Moment Load: N/A in-lbs

View and Configure
