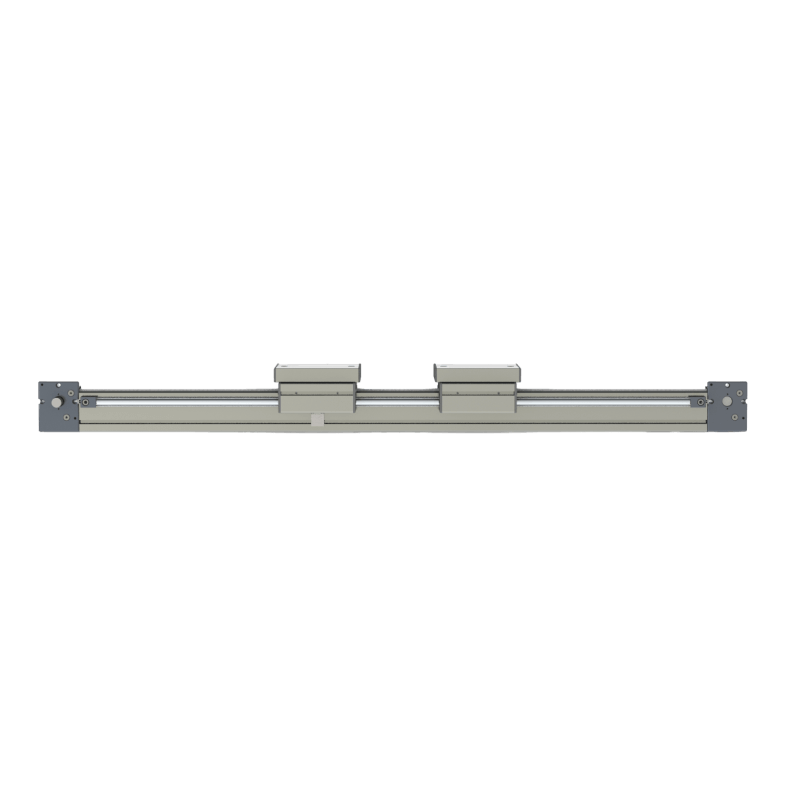

MDC-14S

Features:

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.

Notes:

  • Each Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 10160[5080]
Max Load - Horizontal[Vertical] - lbs 200[100]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 1600[180]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 9
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Track roller with round rail
Weight
System Weight - kg (Travel in meters x 6.1) + 12.4
Motor Sizing Information
Weight of Cart - lbs[kgs] 7.8[3.54]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+1.16) x .12
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm Steel / 28.9
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 5725

Configurate a MDC-14S

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDC-14S-G-BC-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Replacement Parts

BBK 14M Bearing Block Replacement Kit
Cart Components | 14M

Fits actuators: MSA-14S, MDC-14S, MDS-14S

  • Bearing block replacement kit BBK-14M
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14S
  • Special adjustment tools, if required, are sold separately

Download Datasheet

BBK 14S Bearing Block Replacement Kit
Cart Components | 14S

Fits actuators: MSA-14S, MDC-14S, MDS-14S

  • Bearing block replacement kit BBK-14S
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14S
  • Special adjustment tools, if required, are sold separately

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
