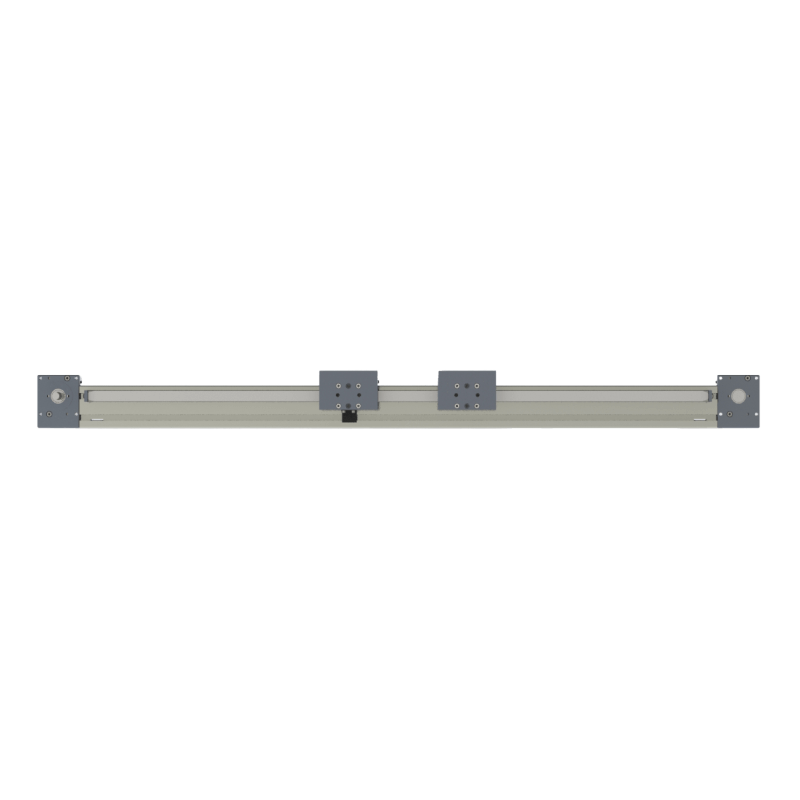

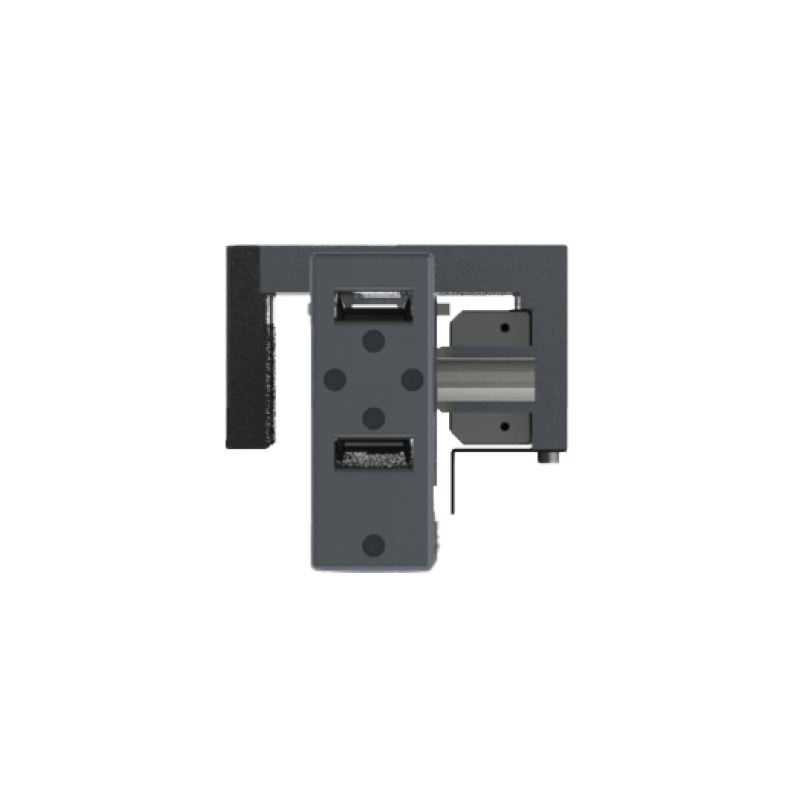

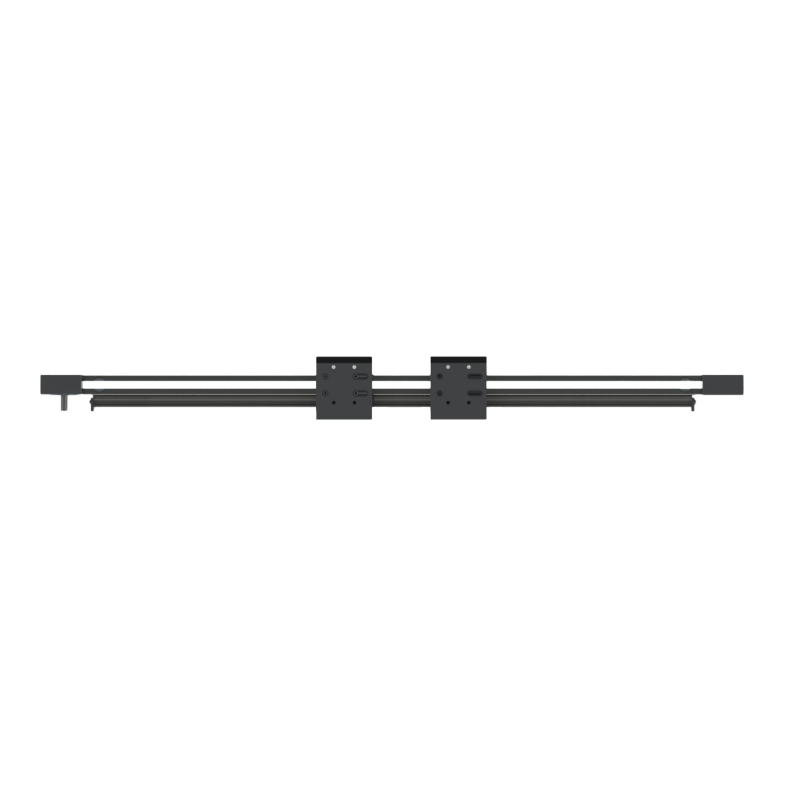

MDC-R15

Features:

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.

Notes:

  • Each Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 20[10]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 310[35]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 20
Recommended Belt Running Load - lbf[N] 200[889]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg (Travel in meters x 3.1) + 2.6
Motor Sizing Information
Weight of Cart - lbs[kgs] 0.8[0.36]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2) + .50) x .04
Travel per Revolution - mm 105
Pulley Pitch Diameter - mm 33.42
Pulley Material / Width - mm Steel / 16.3
Breakaway Torque - oz-in 12 to 14
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 25 to 25

Configurate a MDC-R15

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDC-R15-B-AB-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

Cart Assembly | CSA – R15

Fits actuators: MSA-R15, MDC-R15, MAA-R15

  • Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

Download Datasheet

Pulley Assembly Kit | PAS – ABS / PAI – ABS

Fits actuators: MSA-628, MDC-628, MSA-R15, MDC-R15, MSA-R5D

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

Drive Belt Kit | DBK – BC – XX

Fits actuators: MSA-628, MSA-R15, MDS-628, MDS-R15. MAA-R15

  • Includes belt and tension assembly with hardware. Tension tool sold separately.
  • Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
