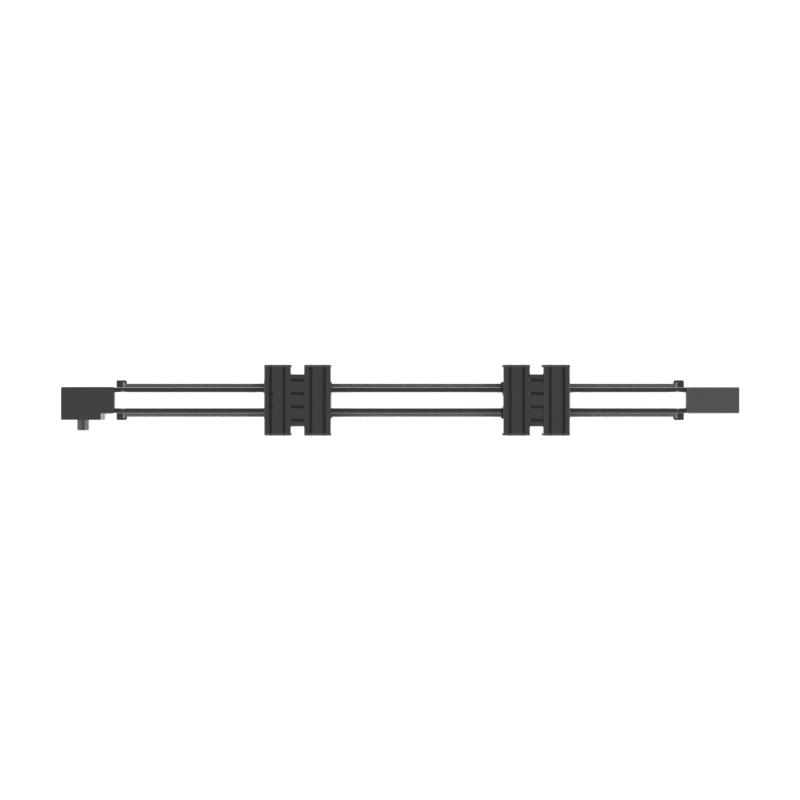

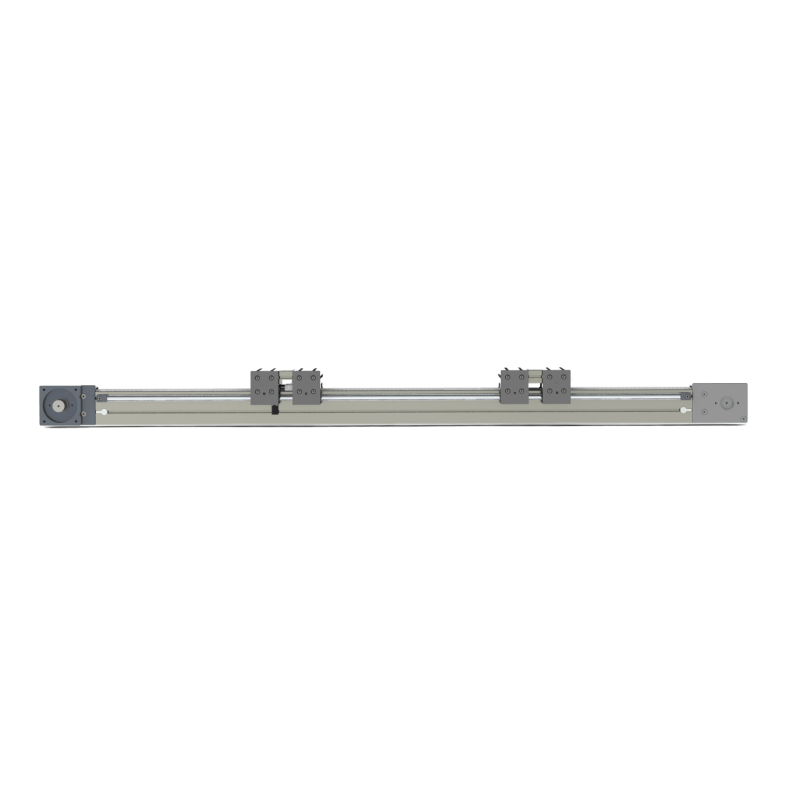

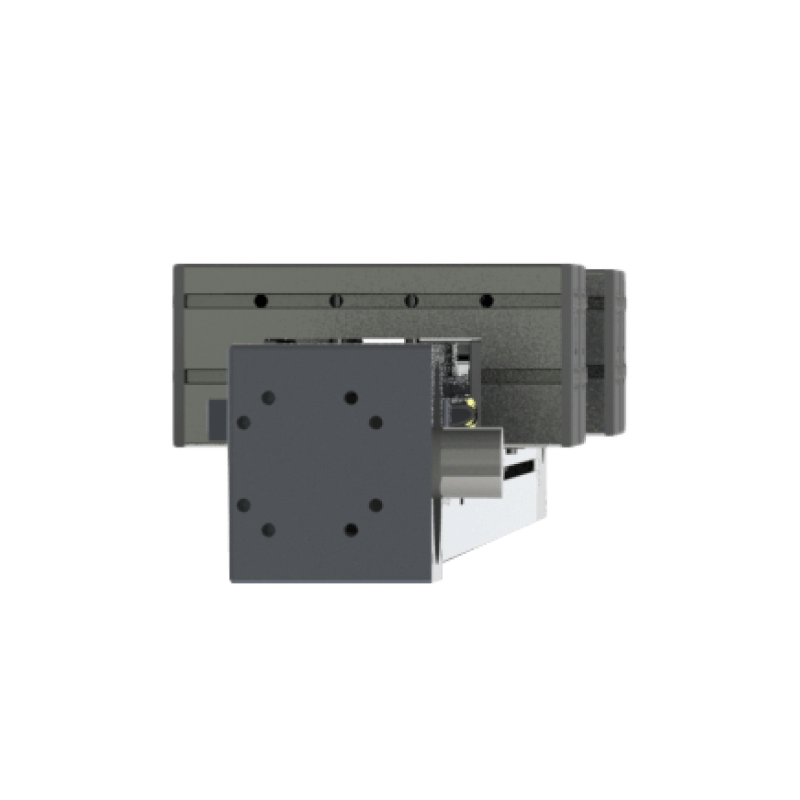

MDC-14H

The MDC-14H is a heavy-duty linear actuator designed for high-speed, long-travel motion in industrial automation systems. Featuring a reinforced belt drive and a robust aluminum extrusion, it delivers accurate and stable movement under demanding load conditions. Its modular design supports multiple motor and gearbox mounting configurations, allowing for integration into complex multi-axis assemblies. Engineered with durable aluminum and steel components, the MDC-14H provides reliable performance, minimal maintenance, and long service life in high-duty environments.

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.
Datasheet - MDC-14H
View Specifications
Download CAD Model
Request Quote Connect with an Engineer
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo

Product Notes

Each actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 10160[5080]
Max Load - Horizontal[Vertical] - lbs 400[300]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 3200[361]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 9
Recommended Belt Running Load - lbf[N] 2700[12015]
Cart Guide Track roller with round rail
Weight
System Weight - kg (Travel in meters x 12.2) + 26.7
Motor Sizing Information
Weight of Cart - lbs[kgs] 12.0[5044]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+1.70) x .34
Travel per Revolution - mm 280
Pulley Pitch Diameter - mm 89.13
Pulley Material / Width - mm Steel / 55
Breakaway Torque - oz-in 42 to 44
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 5675

Configure a Standard Model MDC-14H

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

MPS-118 Inline Gearbox
MRS-118 Right Angle Gearbox
MPG-118 Inline Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MDC-14H-I-JF-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

BBK 14H Bearing Block Replacement Kit
Cart Components | 14H

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14H
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

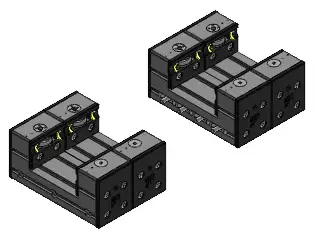

BBK 14C Bearing Block Replacement Kit
Cart Components | 14C

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14C
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

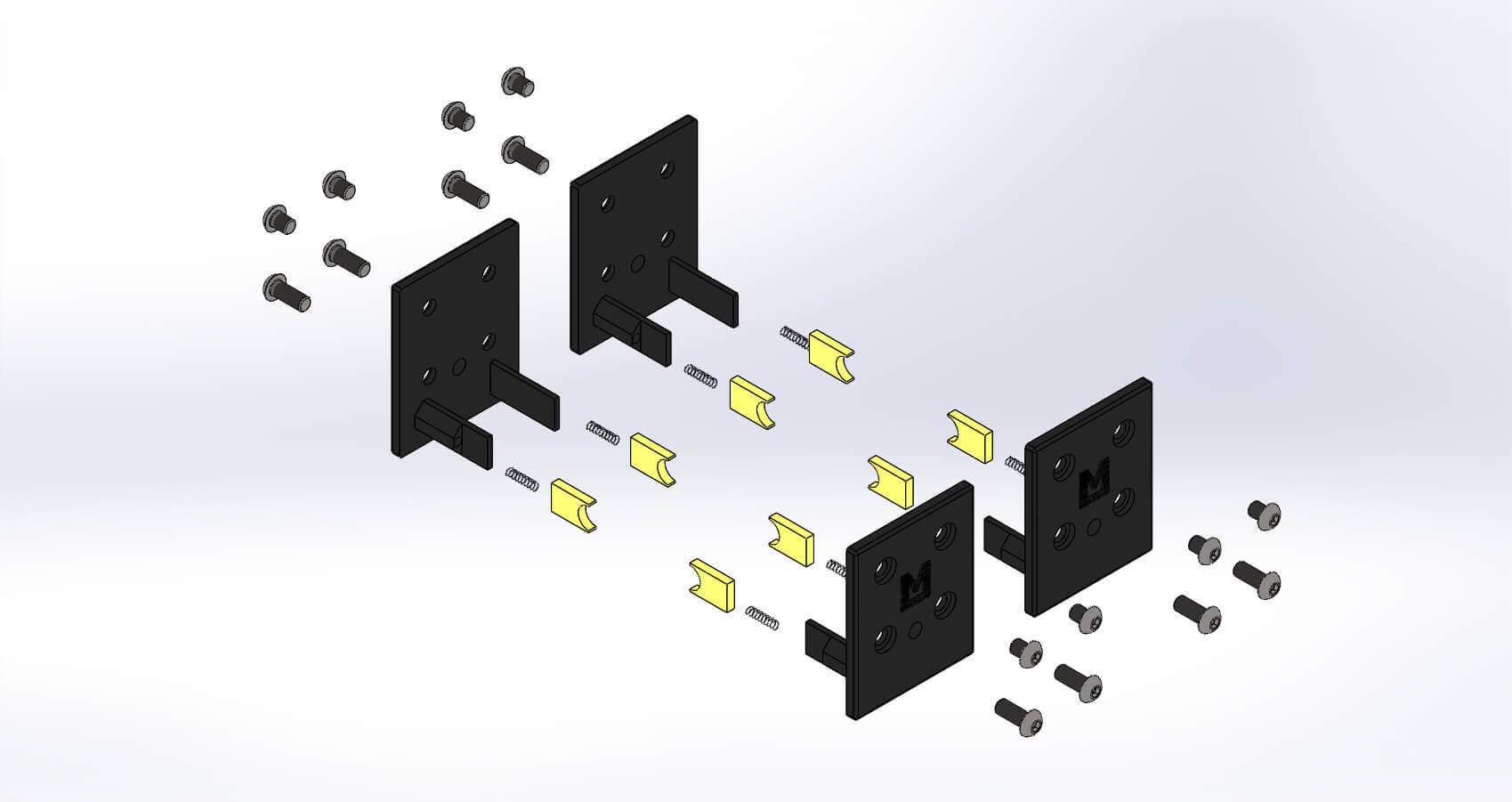

Wiper Replacement Kit | WRK – 14H

Fits actuators: MSA-14H, MDC-14H

  • Includes felt wiper, springs, end cap and mounting hardware to retrofit one cart assembly.
  • Lubricating guide rails is critical to the life of an actuator. Replacing on a regular PM cycle is recommended.

Download Datasheet

Pulley Assembly Kit | PAS – BCS / PAI – BCS

Fits actuators: MSA-SB2, MSA-M6S, MDC-M6S, MSA-R6S, MSA-R6D, MSA-135, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, R20, MAA-R6S MSA-BT2

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

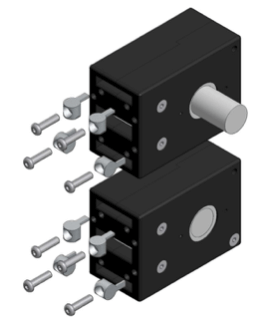

Pulley Assembly | PAS – CFS / PAI – CFS

Fits actuators: MSA-SBH, MSA-14H-JF, MDC-14H-JF

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

Cart Assembly | CSA – 14H

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

Download Datasheet

Drive Belt Kit | DBK – CA – XX

Fits actuators: MSA-SB2, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, MSA-14H-JC, MDC-14S, MDC-14H-JC, MSA-R20, MDC-R20, MAA-R20, MSA-BT2

  • Includes belt and tension assembly with hardware. Tension tool sold separately.
  • Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Accessories

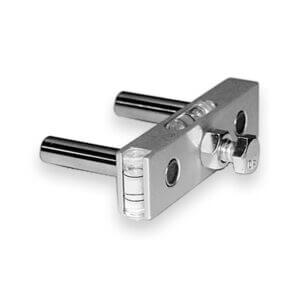

Item # 399-50, Tensioning Tool – 50mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
