Home Motor Mounts

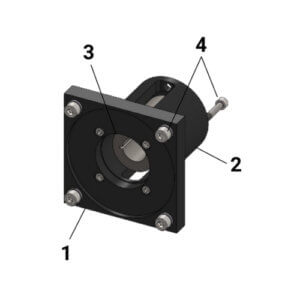

Macron Dynamics MMK motor mounting kits are available for direct drive mounting of motors to our actuator line of products. When requesting a quote, please provide the motor manufacturer and motor part number.
Note: Overall size and thickness may change depending on motor selected

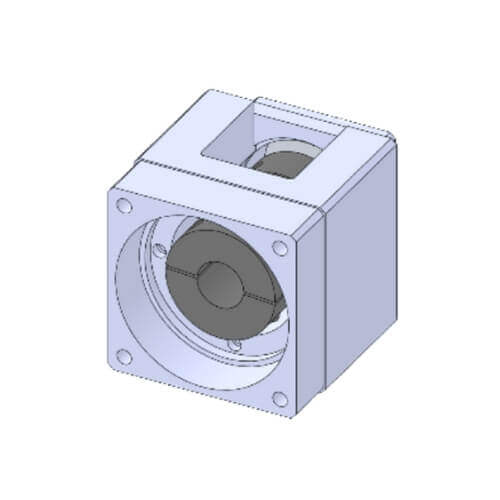

MMK-80 KIT 1 |
MMK-80 KIT 2 |
MMK-80 KIT 3 |
|
Input torque- Nm (lb-in) |
45 (500) | 147 (1300) | 497 (4400) |
Input shaft dia. (max) |
32 mm | 40 mm | 40 mm |
Related Actuators |
MSA-14H, MDC-14H, MDS-14H, MGS-14H, MSA-SBH, MDS-SBH | MSA-14H, MDC-14H, MDS-14H, MGS-14H, MSA-SBH, MDS-SBH | MSA-14H, MDC-14H, MDS-14H, MGS-14H, MSA-SBH, MDS-SBH |
Data Sheet |
|||
3D CAD Drawing |
|
|
|

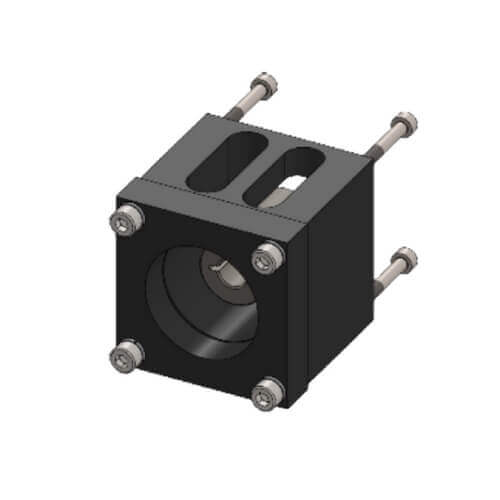

MMK-28 |
MMK-40 |

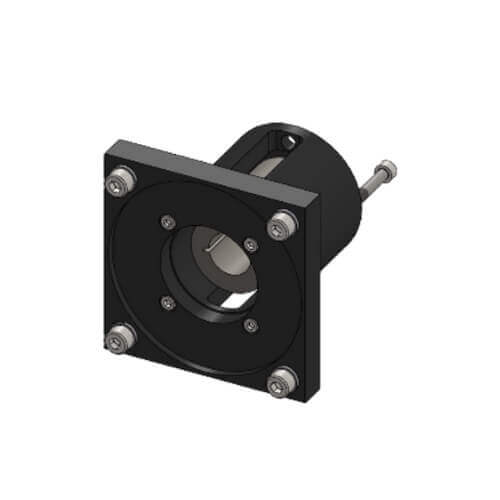

MMK-60 |
|
Input torque- Nm (lb-in) |
N/A | N/A | N/A |
Input shaft dia. (max) |
14 mm | 22 mm | 24 mm |
Related Actuators |
MSA-SB1, MSA-PSC, MSA-NBC, MSA-628, MSA-R15, MSA-BT1, MAA-R15, MAA-R5D, MCS-HBG-12, MCS-PSC, MCS-R15, MDC-628, MDC-R15, MDC-R5D, MDS-628, MDS-NBC, MDS-PSC, MDS-R15, MDS-R5D, MDS-SB1, MGS-628, MGS-HBG-12, MGS-PSC, MGS-R15, MGS-R5D, MGS-TBG-12, MSA-R5D | MSA-SB2, MSA-M6S, MSA-R6S, MSA-135, MSA-14S, MSA-R20, MDS-R20, MSA-BT2, MAA-R20, MAA-R2D, MAA-R6D, MAA-R6S, MCS-HBG-25, MCS-R6S, MCS-R6Y, MDC-14S, MDC-M6S, MDC-R20, MDC-R6D, MDC-R6S, MDS-14S, MDS-M6S, MDS-R6D, MDS-R6S, MDS-SB2, MGS-14S, MGS-HBG-25, MGS-M6S, MGS-R20, MGS-R6D, MGS-R6S, MGS-R6Y, MGS-TBG-25, MGS-UC1, MGS-UC2, MRA-RTU-0, MRA-RTU-1, MRA-RTU-1i, MRA-RTU-2, MSA-14Z, MSA-DRT, MSA-R2D, MSA-R6D, MSA-SRT, MTA-R20 | MSA-SB5, MSA-BT5, MCS-HBG-50, MCS-UC3, MDS-SB5, MGS-HBG-50, MGS-TBG-50, MGS-UC3, MGS-UC4, MRA-RTU-2 |
Data Sheet |
|||
3D CAD Drawing |
|
|
|
