Framing Components

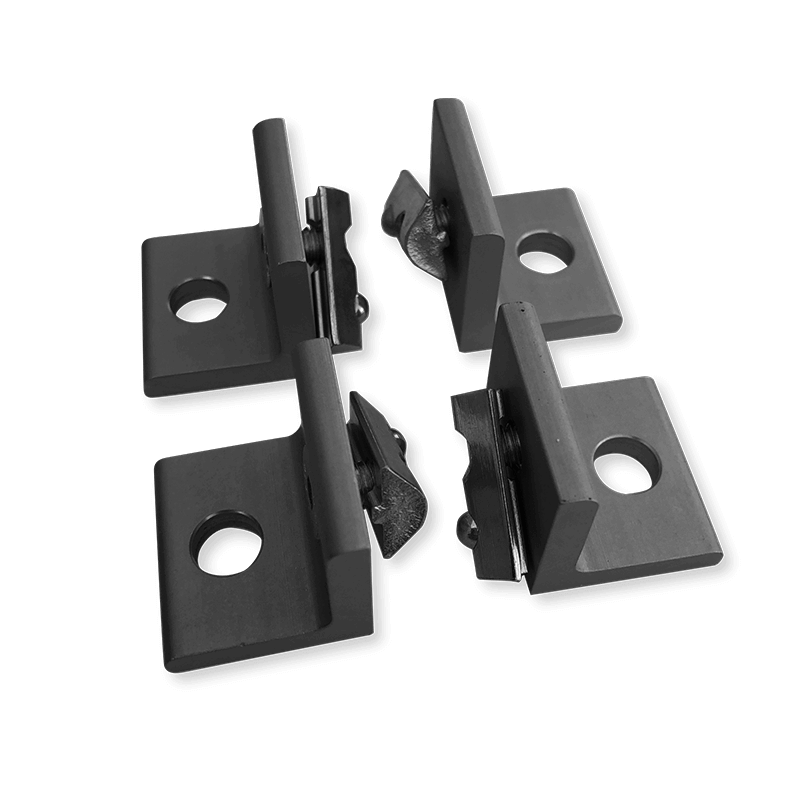

Actuator Mounting Kit

Models

Actuator Systems Supported: MSA-SBH, MDS-SBH, MSA-14H, MGS-14H, MDC-14H, MDS-14H

Kit Includes: 8 M8 T-Nuts, 8 M8 Flat-Head Bolts, 4 Angle Brackets

Note: 1 kit recommended for every 1 meter of travel

View 2D Data Sheet | View 3D CAD Model

Actuator Systems Supported: MSA-M6S, MSA-R6S, MSA-135, MSA-14S, MSA-SB2, MSA-SB5, MSA-R20, MSA-BT5, MSA-BT2, MSA-DRT, MSA-SRT, MDC-14S, MDS-14S, MGS-14S, MAA-R20, MDC-R20, MDS-R20, MGS-R20, MDC-M6S, MDS-M6S, MGS-M6S, MAA-R6S, MCS-R6S, MDC-R6S, MDS-R6S, MGS-R6S, MDS-SB2, MDS-SB5, MRA-RTU-0, MRA-RTU-1, MRA-RTU-1i, MRA-RTU-2, MCS-HBG-25, MGS-HBG-25, MGS-TBG-25, MCS-HBG-50, MGS-HBG-50, MGS-TBG-50

Kit Includes: 4 M8 T-Nuts, 4 M8 Flat-Head Bolts, 4 Angle Brackets

Note: 1 kit recommended for every 1 meter of travel

View 2D Data Sheet | View 3D CAD Model

Actuator Systems Supported: MSA-628, MSA-R15, MSA-SB1, MSA-R5D, MSA-BT1, MDS-SB1, MAA-R15, MCS-R15, MDC-R15, MDS-R15, MGS-R15, MDC-628, MDS-628, MGS-628, MAA-R5D, MDC-R5D, MDS-R5D, MGS-R5D, MCS-HBG-12, MGS-HBG-12, MGS-TBG-12

Kit Includes: 4 M6 T-Nuts, 4 M6 Flat-Head Bolts, 4 Angle Brackets

Note: 1 kit recommended for every 1 meter of travel

View 2D Data Sheet | View 3D CAD Model
