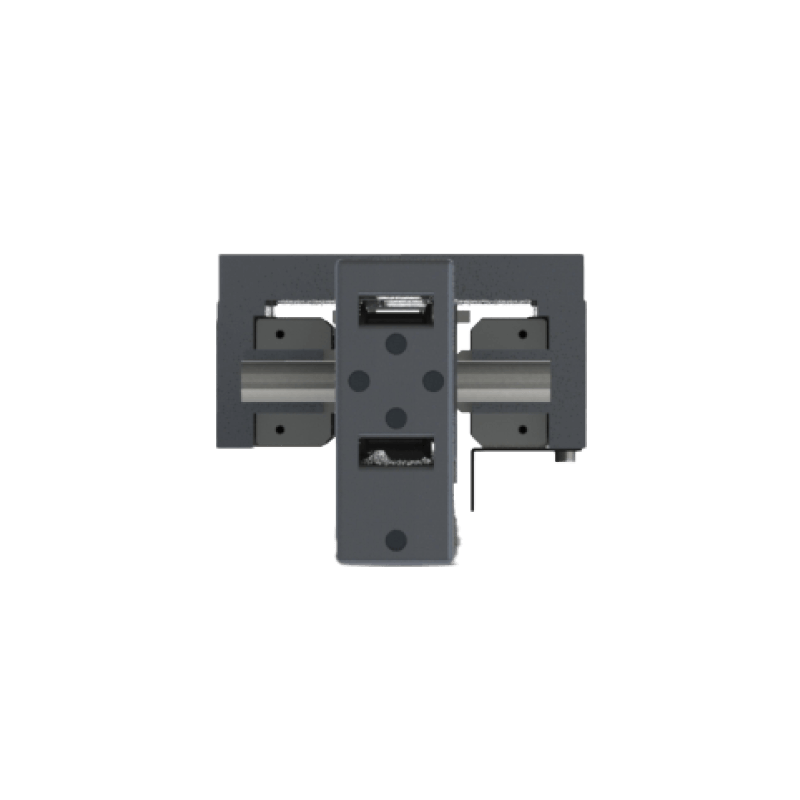

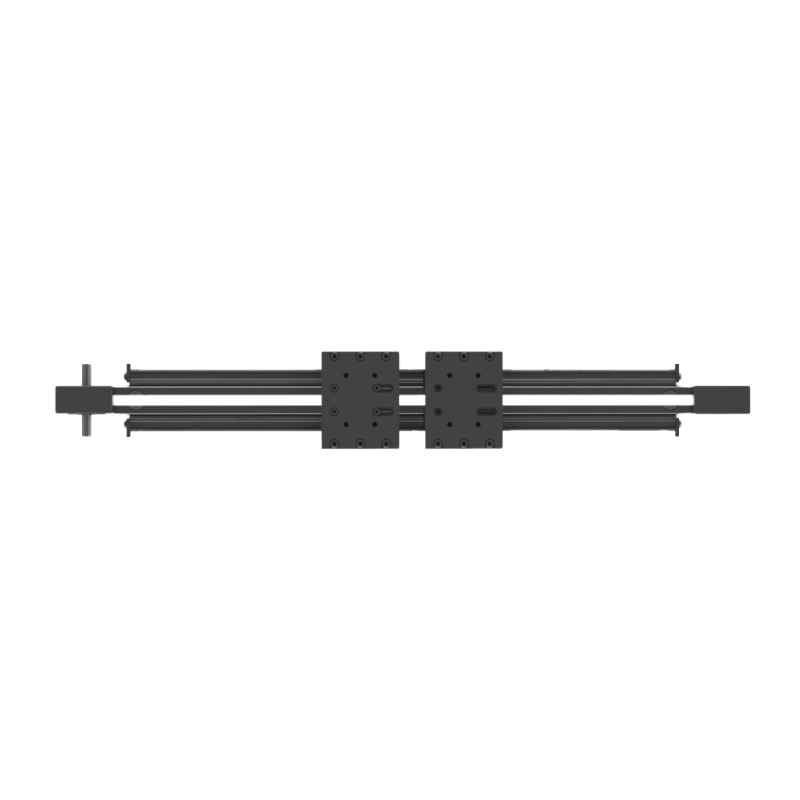

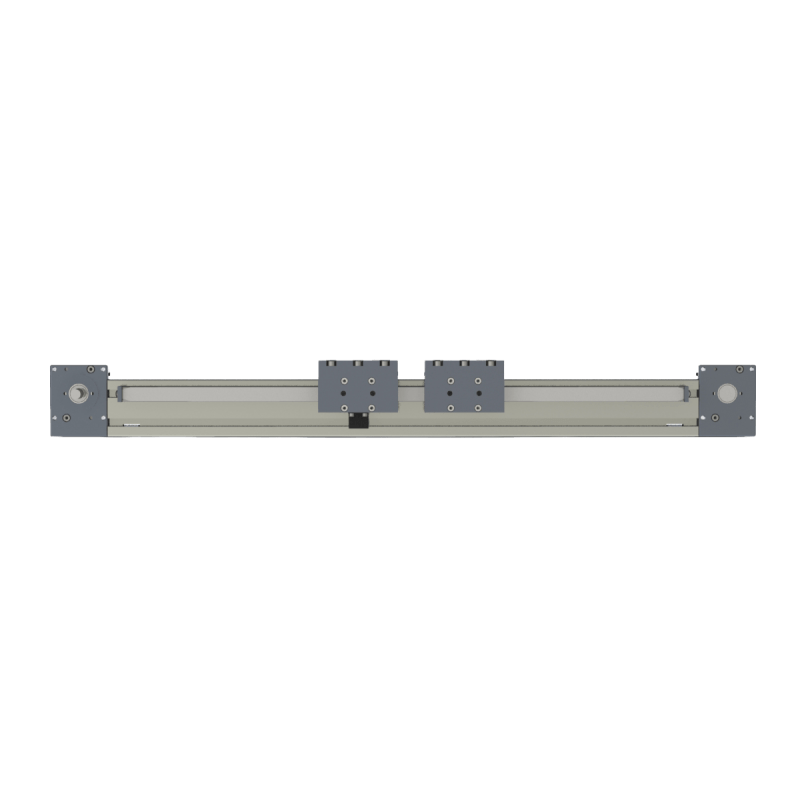

MDC-R5D

The MDC-R5D is a belt-driven linear actuator designed for accurate and efficient motion control in industrial automation environments. Featuring a compact aluminum extrusion and reinforced timing belt, it delivers smooth, repeatable travel across moderate to long distances. Its modular design supports various motor and gearbox mounting configurations, allowing for easy integration into multi-axis systems. Built with durable materials, the MDC-R5D provides consistent performance, low maintenance, and long-term reliability in demanding applications.

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.

Product Notes

The MDC-R5D is a belt-driven linear actuator designed for accurate and efficient motion control in industrial automation environments. Featuring a compact aluminum extrusion and reinforced timing belt, it delivers smooth, repeatable travel across moderate to long distances. Its modular design supports various motor and gearbox mounting configurations, allowing for easy integration into multi-axis systems. Built with durable materials, the MDC-R5D provides consistent performance, low maintenance, and long-term reliability in demanding applications.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 50[50 ]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 2200[248]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 10
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg (Travel in meters x 4.6) + 3.2
Motor Sizing Information
Weight of Cart - lbs[kgs] 4.0[1.81]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+.65) x .04
Travel per Revolution - mm 105
Pulley Pitch Diameter - mm 33.42
Pulley Material / Width - mm Steel / 16.3
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 3850

Configure a Standard Model MDC-R5D

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDC-R5D-B-AB-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

Cart Assembly | PA-BCC

Fits actuators: MSA-R5D, MDC-R5D

  • Includes complete cart assembly with mounting hardware. Special adjustment tools, if required, are sold separately

Download Datasheet

Cart Assembly | CSA-R5D

Fits actuators: MSA-R5D, MAA-R5D, MDC-R5D​

  • Includes complete cart assembly with mounting hardware. Special adjustment tools, if required, are sold separately

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

×
