MDS-R15

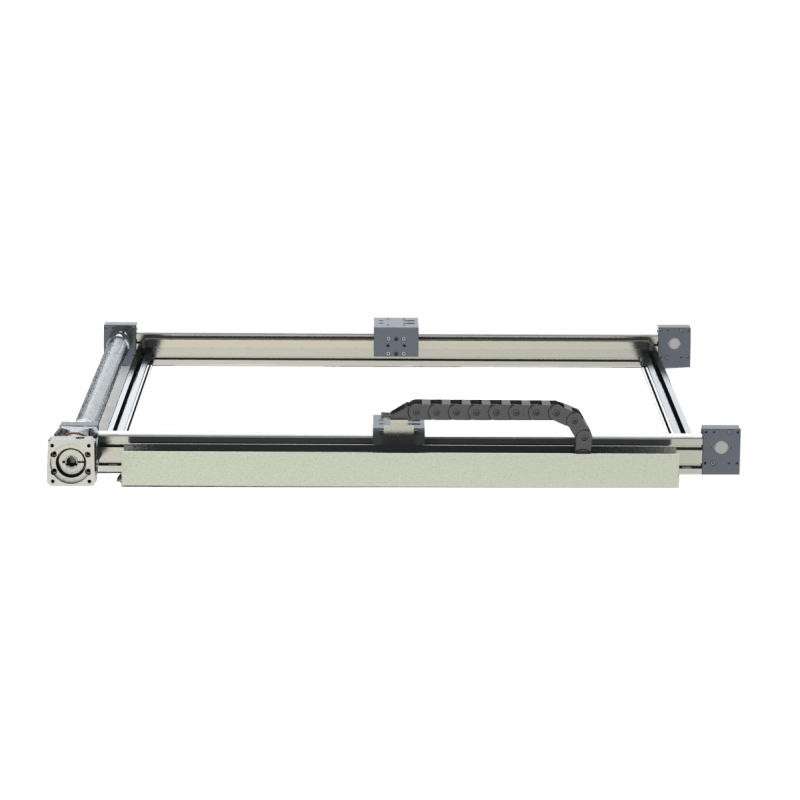

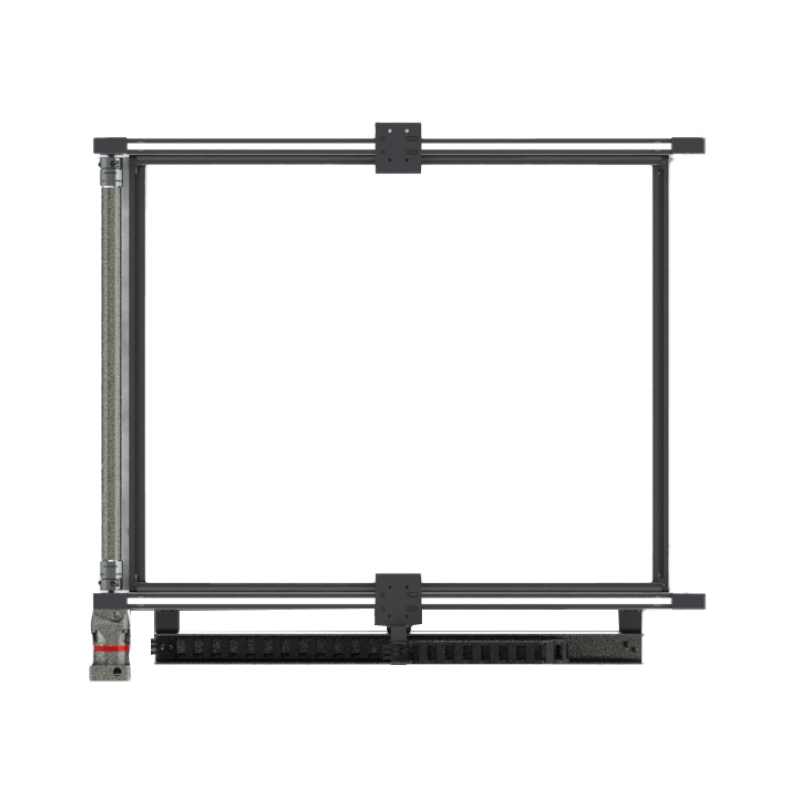

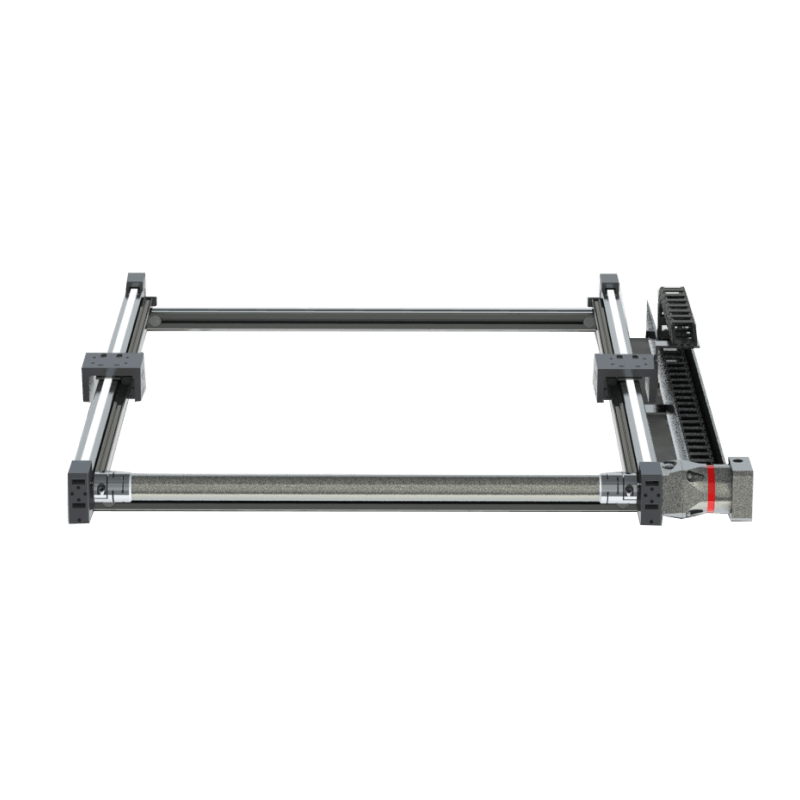

The X-X’ system is a dual-axis linear motion platform engineered for precision movement in industrial automation environments. It features defined center-to-center spacing between actuator carts to maintain alignment and support synchronized operation. The modular configuration accommodates optional T-slot sensors, gearboxes, and motor mounting adaptors for system flexibility. Constructed with high-strength materials and available with integrated cable track, the X-X’ system ensures reliable performance, extended travel capacity, and minimal maintenance in demanding applications.

  • X-X' configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes and Spacing.
  • Center Drive Right Angle Reducer offered upon request.
  • Multiple Carts Available upon request.
  • Mounting flexibility in either horizontal, vertical or inverted orientation.

Product Notes

The X-X’ system is a dual-axis linear motion platform engineered for precision movement in industrial automation environments. It features defined center-to-center spacing between actuator carts to maintain alignment and support synchronized operation. The modular configuration accommodates optional T-slot sensors, gearboxes, and motor mounting adaptors for system flexibility. Constructed with high-strength materials and available with integrated cable track, the X-X’ system ensures reliable performance, extended travel capacity, and minimal maintenance in demanding applications.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 3000[3000]
Max Load - Horizontal[Vertical] - lbs 50[50]
Repeatability - mm +/- 0.10
Moment Load - in-lbs[Nm] 620[70]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 1
Recommended Belt Running Load - lbf[N] 200[889]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 12 to 14
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 5725

Configure a Standard Model MDS-R15

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDS-R15-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

EDC PDF Thumbnail
EDC Distance Coupling Installation

Download

Videos

Single Axis Actuator Videos

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

×
