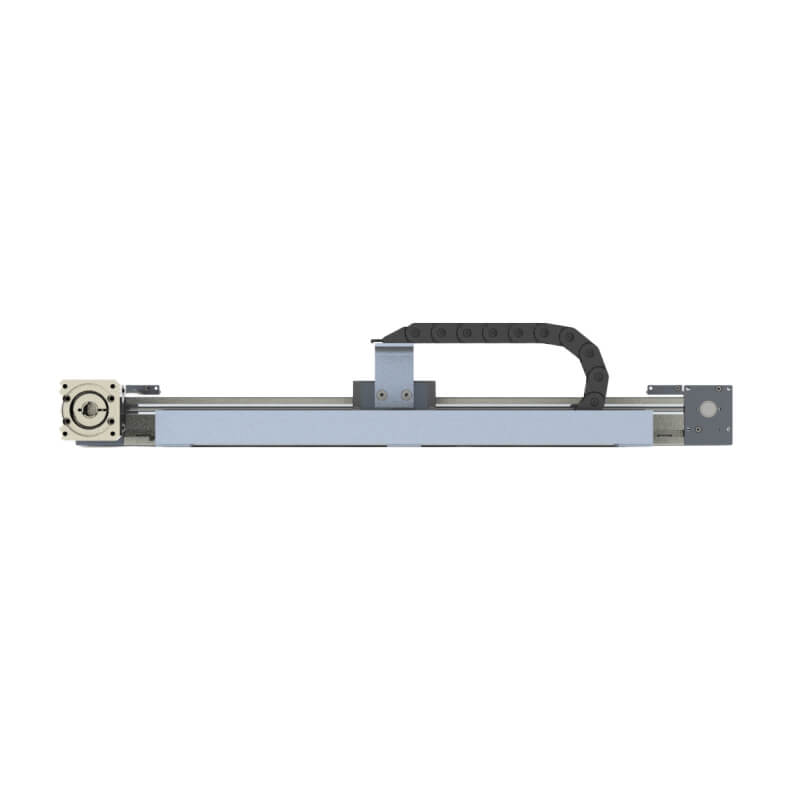

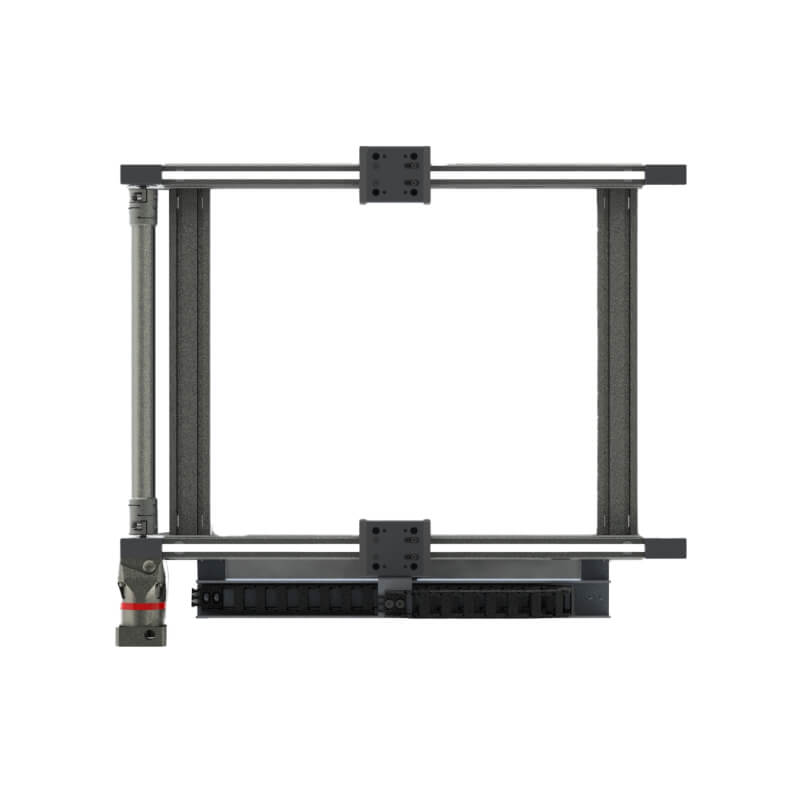

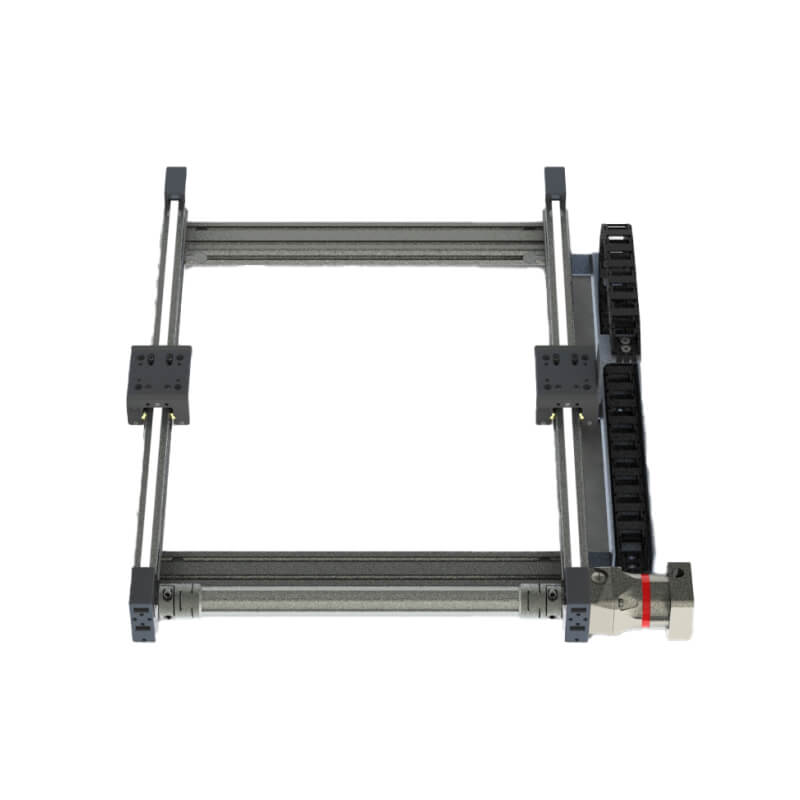

MDS-628

Features:

  • X-X’ configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes and Spacing.
  • Center Drive Right Angle Reducer offered upon request.
  • Multiple Carts Available upon request.
  • Mounting flexibility in either horizontal, vertical or inverted orientation.

Notes:

  • Center to Center spacing is the distance between each actuator cart’s center line.
  • Each X-X’ system can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • Some X-X’ systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Specifications

Did You Know We Offer

  • Longer Travel or Stroke Lengths
  • Custom Cart Orientation & Features
  • Physically Smaller Sizes
  • Increased Repeatability & Accuracy
  • Water Resistant & Washdown Upgrades
Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 6000[3000]
Max Load - Horizontal[Vertical] - lbs 25[25]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 50[5.7]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 3
Recommended Belt Running Load - lbf[N] 100[445]
Cart Guide Track roller with round rail
Weight
System Weight - kg ((Travel in meters x 2.0) + 1.6)) x 2
Motor Sizing Information
Weight of Cart - lbs[kgs] 2.4[1.09]
Weight of Belt - kgs based on travel selected (((Travel in meters x 2) + .50) x .04 ) x 2
Travel per Revolution - mm 105
Pulley Pitch Diameter - mm 33.42
Pulley Material / Width - mm Steel / 16.3
Breakaway Torque - oz-in 8-10
Coefficient of Friction N/A
Rolling Resistance - lbs / kgs 0.002 / 0.001
Travels (25mm increment)
X Axis Travel - min to max 150 to 5850

Configure a Standard Model MDS-628

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDS-628-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None
