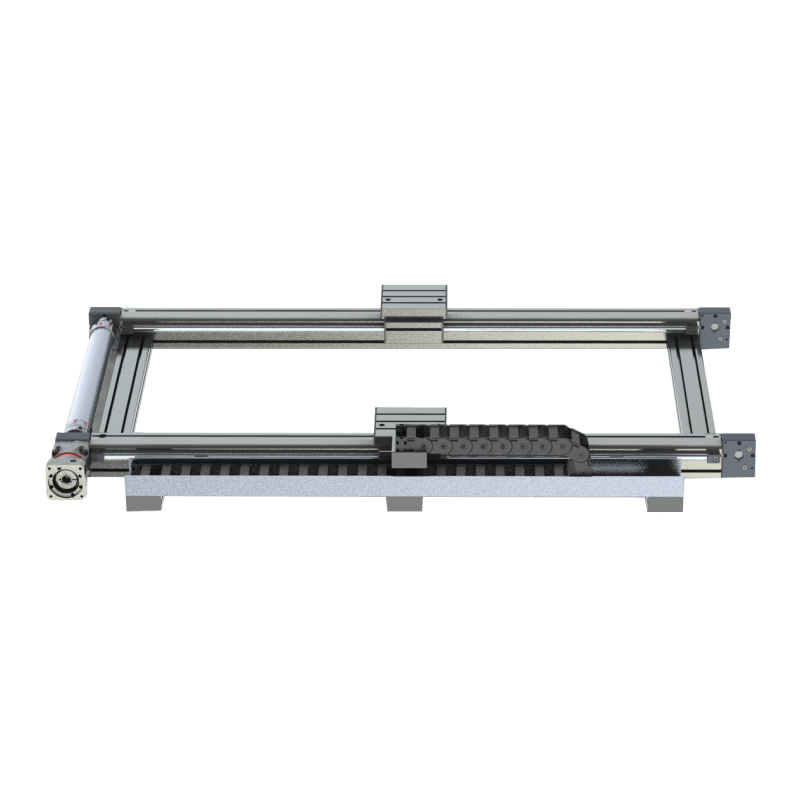

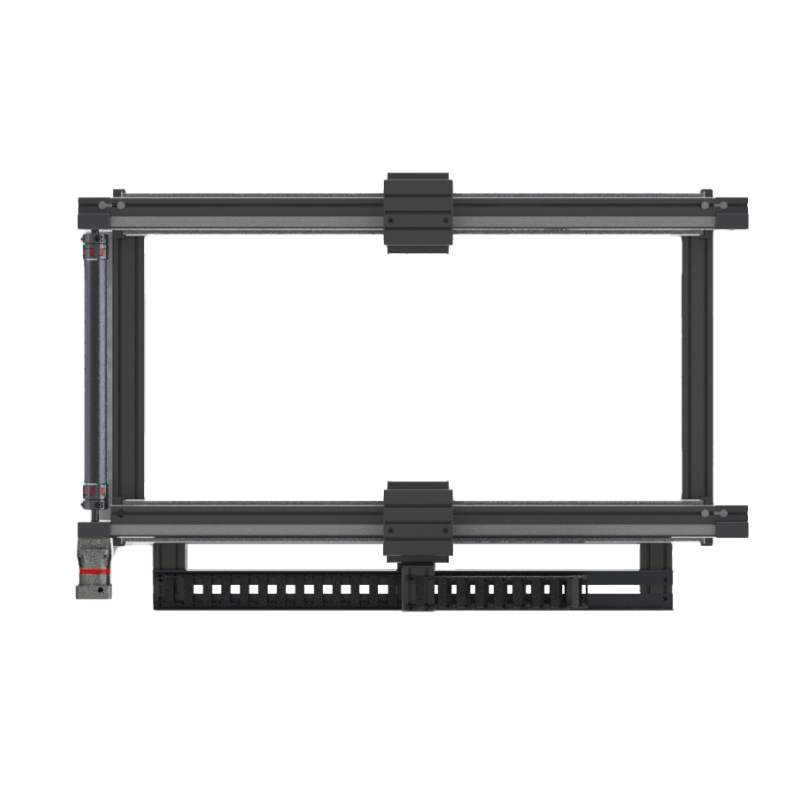

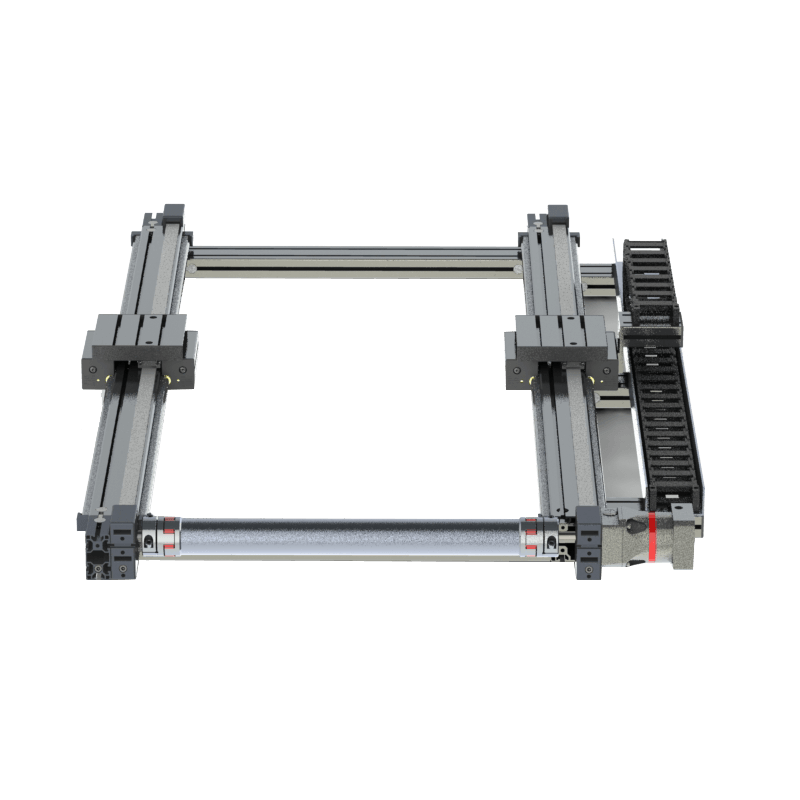

The X-X’ system is a dual-axis linear actuator designed for precise, synchronized motion in industrial automation environments. It features center-to-center spacing between actuator carts for consistent alignment and accurate performance. Optional T-slot sensors, gearboxes, and motor mounting adaptors support flexible configuration across custom applications. Built with durable materials and available with integrated cable track, the X-X’ system offers reliable operation, low maintenance, and suitability for extended travel requirements.

X-X' configuration.
Connection Hardware and Torque Tube included with the Assembly.
User defined Strokes and Spacing.
Center Drive Right Angle Reducer offered upon request.
Multiple Carts Available upon request.
Mounting flexibility in either horizontal, vertical or inverted orientation.

Datasheet - MDS-14S

View Specifications

Download CAD Model

Request Quote Connect with an Engineer

Product Notes

Center-to-center spacing is the distance between each actuator cart’s center line. Each X-X’ system can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. Some X-X’ systems include cable track; please refer to the Product Specification download document for the standard size. Motor sizing information is provided in the Product Specification download document. For travel requirements exceeding standard values, contact Macron Dynamics for assistance.

User Guides

Gearbox Installation graphic

Gearbox Install

User Guide Maintenance

EDC PDF Thumbnail

EDC Distance Coupling Installation

Spare Parts – MDS-14S

Videos

Replacement Parts

BBK 14M Bearing Block Replacement Kit

Cart Components | 14M

Fits actuators: MSA-14S, MDC-14S, MDS-14S

Bearing block replacement kit BBK-14M
Roller replacement kit RLK-14S
Wiper replacement kit WRK-14S
Special adjustment tools, if required, are sold separately

Download Datasheet

BBK 14S Bearing Block Replacement Kit

Cart Components | 14S

Fits actuators: MSA-14S, MDC-14S, MDS-14S

Bearing block replacement kit BBK-14S
Roller replacement kit RLK-14S
Wiper replacement kit WRK-14S
Special adjustment tools, if required, are sold separately

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

General Specifications
