MGS-14S

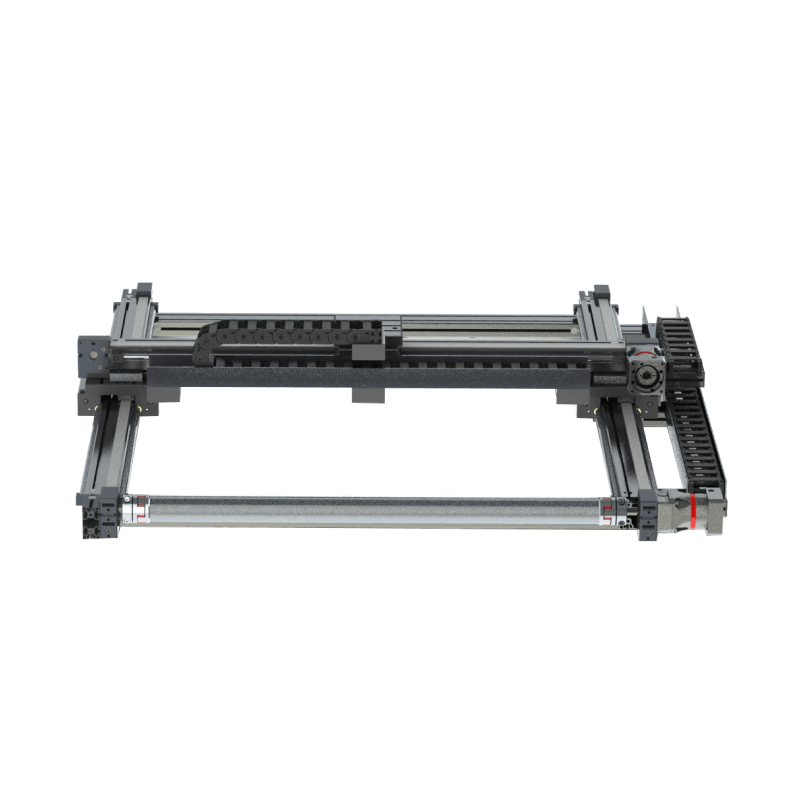

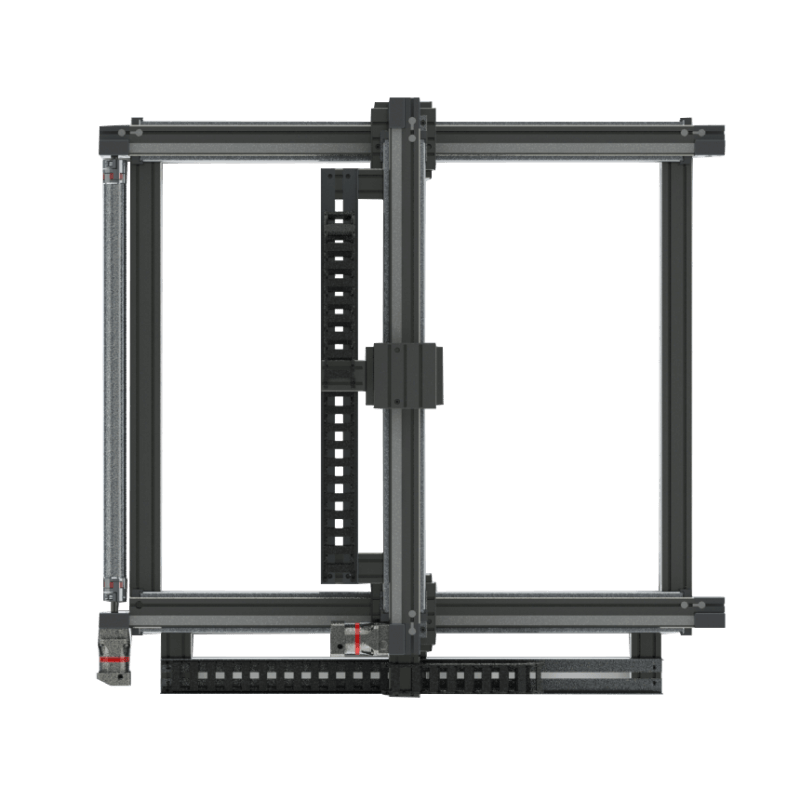

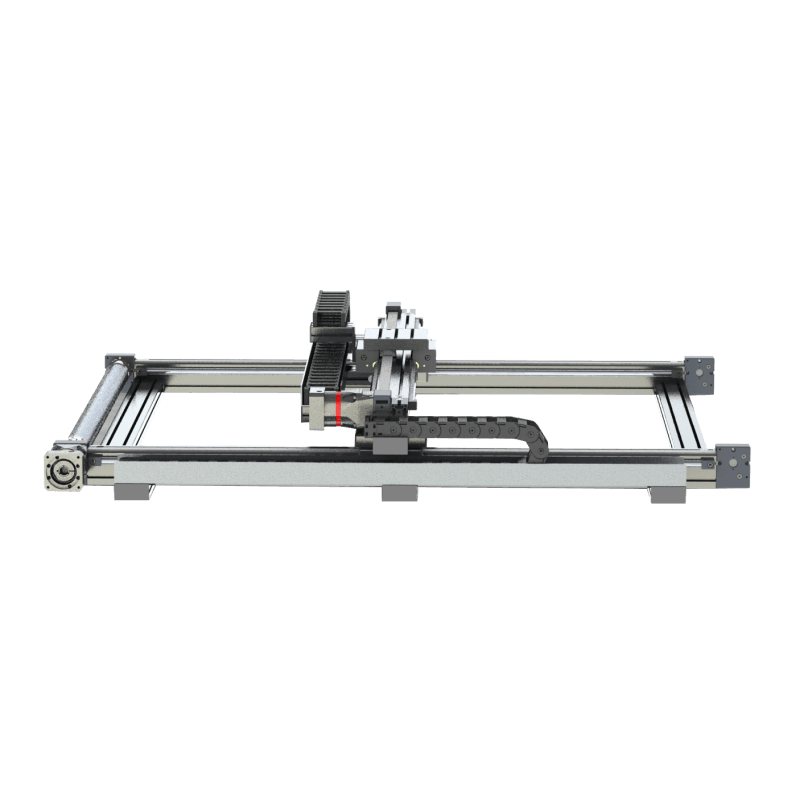

The XX-Y’ system is a high-precision cartesian gantry actuator designed for linear motion control in industrial automation environments. It features a modular configuration with support for optional T-slot sensors, gearboxes, and motor mounting adaptors to accommodate a wide range of application requirements. All systems include integrated cable track, with standard sizing and motor specifications provided in the product documentation. Built with durable aluminum and steel components, the XX-Y’ system ensures reliable performance, extended travel capabilities, and minimal maintenance in demanding operating conditions.

  • XX-Y' configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes for Each Axis.
  • Center Drive Right Angle Reducer offered upon request.
  • Mounting flexibility in either horizontal, vertical, or inverted orientation.

Product Notes

The XX-Y’ system is a high-precision cartesian gantry actuator designed for linear motion control in industrial automation environments. It features a modular configuration with support for optional T-slot sensors, gearboxes, and motor mounting adaptors to accommodate a wide range of application requirements. All systems include integrated cable track, with standard sizing and motor specifications provided in the product documentation. Built with durable aluminum and steel components, the XX-Y’ system ensures reliable performance, extended travel capabilities, and minimal maintenance in demanding operating conditions.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 200[200]
Repeatability - mm +/- 0.10
Moment Load - in-lbs[Nm] 3200[360]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 3
Recommended Belt Running Load - lbf[N] 1150[5118]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 6000
Y Axis Travel - min to max 150 to 3000

Configure a Standard Model MGS-14S

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MGS-14S-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

EDC PDF Thumbnail
EDC Distance Coupling Installation

Download

Videos

Single Axis Actuator Videos

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

×
