VERSATILE. SCALABLE. SIMPLE.

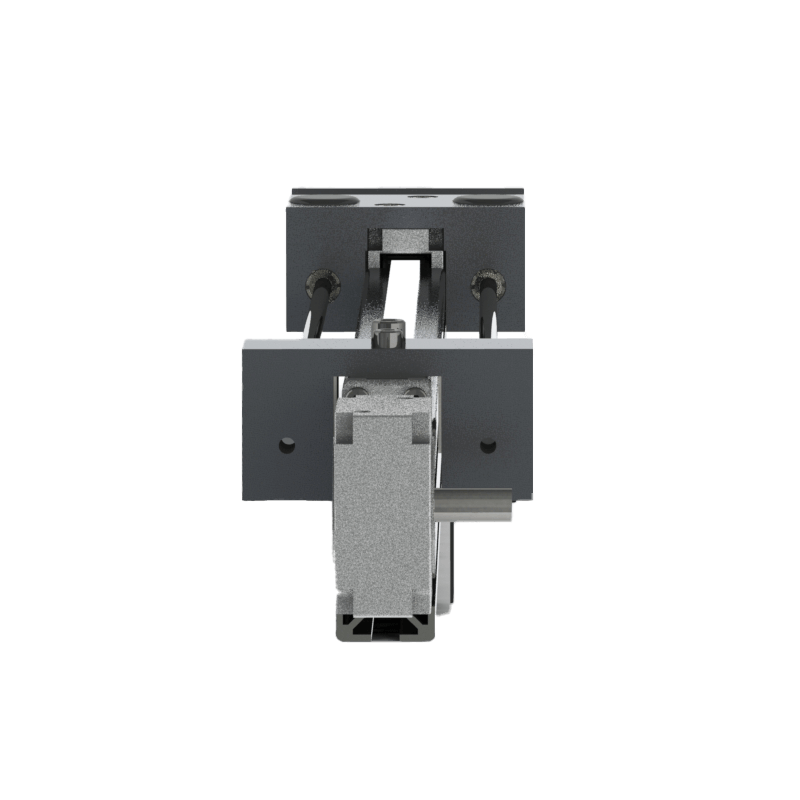

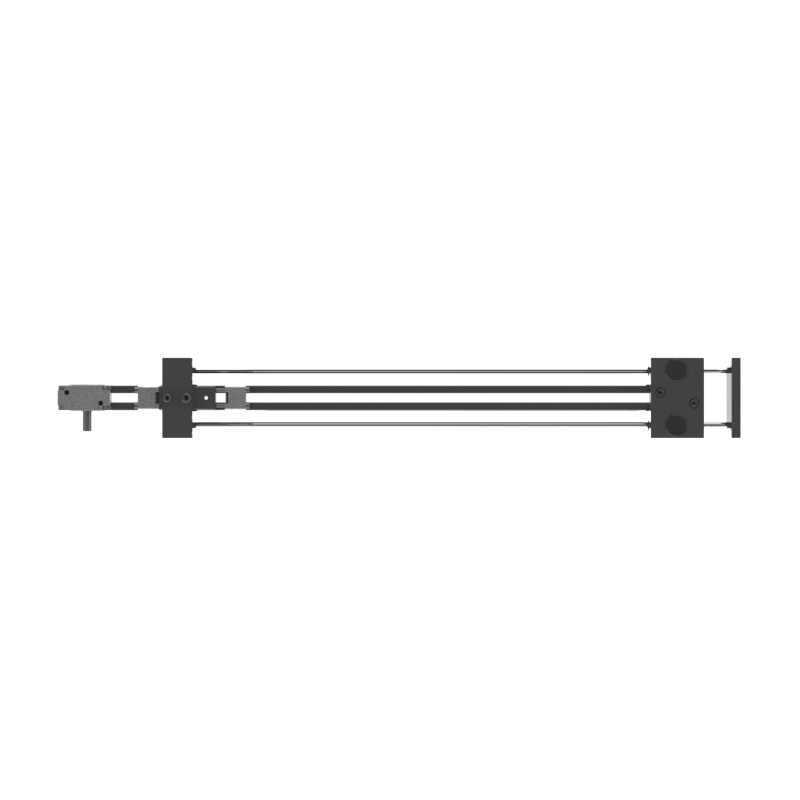

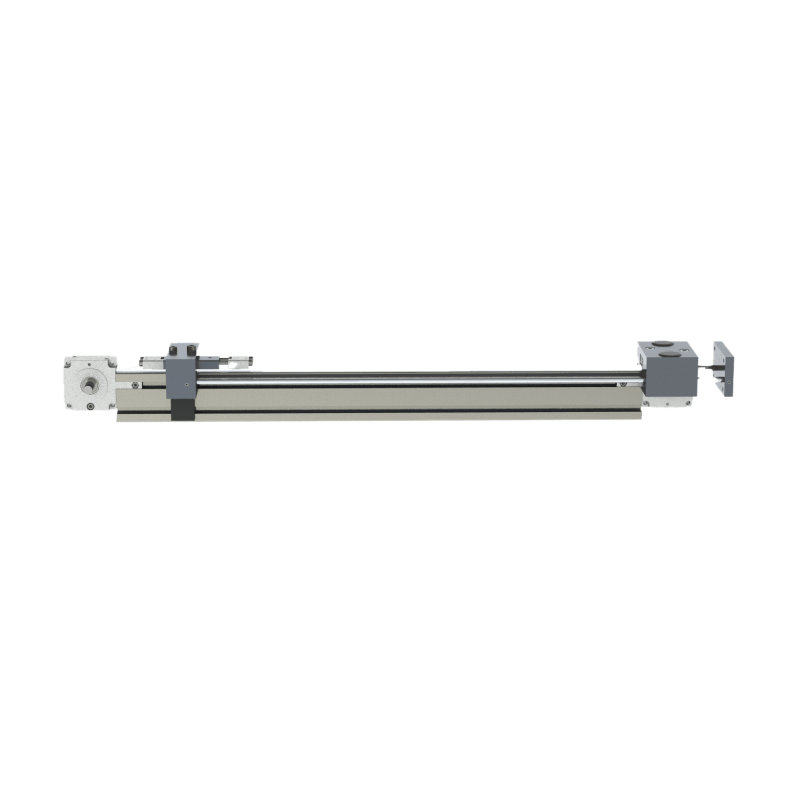

The MSA-BT1 Belt Driven Actuator is a compact linear actuator designed for precision motion control in light-duty industrial and automation applications. It features an extruded aluminum body with T-slots for flexible mounting, along with a zero-backlash belt-to-pulley system for smooth, accurate positioning. The MSA-BT1 supports user-defined stroke lengths up to 2,565 mm, speeds up to 3,810 mm/s, and repeatability of ±0.05 mm. Corrosion-resistant components and optional water-resistant or washdown-duty configurations ensure reliable performance in various environments.
Each actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.
These are standard specifications, if you need a custom configuration, please use our custom configuration request form.
| Motion | Horizontal, Vertical |
| Max Speed - Horizontal[Vertical] - mm/sec | 2000[2000] |
| Max Force - Horizontal[Vertical] - lbf | 50[50] |
| Repeatability - mm | +/- 0.025 |
| Moment Load - in-lbs[Nm] | N/A |
| Positional Accuracy - mm/meter | +/- 0.4 |
| Acceleration Max - Gs | 5 |
| Recommended Belt Running Load - lbf[N] | 50 |
| Cart Guide | Round Rail Thru Linear Bearings |
| System Weight - kg | (Travel in meters x 3.1) + 1.7 |
| Weight of Cart - lbs[kgs] | see data sheet |
| Weight of Belt - kgs based on travel selected | ((Travel in meters x 2) + .51) x .04 |
| Travel per Revolution - mm | 105 |
| Pulley Pitch Diameter - mm | 33.42 |
| Pulley Material / Width - mm | steel / 16.3 |
| Breakaway Torque - oz-in | 12 to 14 |
| Coefficient of Friction | 0.1 |
| Standard Travels - min to max | 150 to 5725 |
Enter your configuration options to submit a Request for a Quote or a CAD drawing:
Fits Actuator: MSA-BT1
Fits actuators: MSA-PSC, MSA-SB1, MSA-NBC, MSA-PSA, MSA-PSB, MSA-BT1, MAA-R15
Fits actuators: MSA-PSC, MSA-SB1, MDS-PSC, MSA-PSA, MSA-PSB, MSA-BT1
Macron Dynamics specializes in designing and building virtually any configuration to meet your unique automation needs. Our innovative solutions enhance efficiency, optimize workspace utilization, and prioritize worker safety—reducing injuries while maximizing productivity.
We offer custom solutions for applications requiring from one to thousands of units, and units physically much smaller and larger than our standard models.
