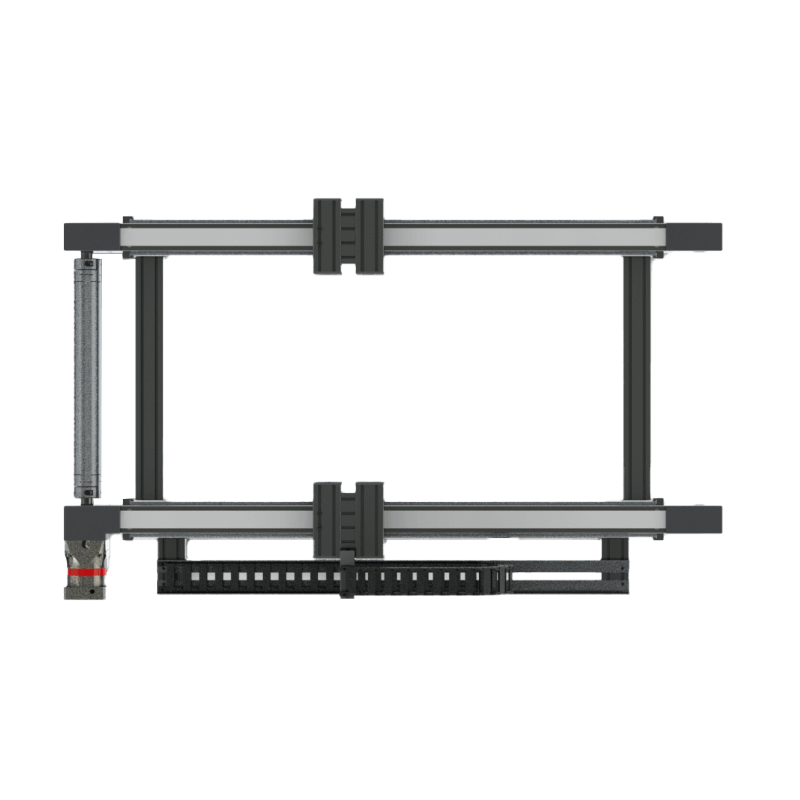

MDS-14H

Features:

  • X-X’ configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes and Spacing.
  • Center Drive Right Angle Reducer offered upon request.
  • Multiple Carts Available upon request.
  • Mounting flexibility in either horizontal, vertical or inverted orientation.

Notes:

  • Center to Center spacing is the distance between each actuator cart’s center line.
  • Each X-X’ system can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • Some X-X’ systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Specifications

Did You Know We Offer

  • Longer Travel or Stroke Lengths
  • Custom Cart Orientation & Features
  • Physically Smaller Sizes
  • Increased Repeatability & Accuracy
  • Water Resistant & Washdown Upgrades
Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 800[800]
Repeatability - mm +/- 0.10
Moment Load - in-lbs[Nm] 6400[722]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 3
Recommended Belt Running Load - lbf[N] 1150[5118]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 42 to 44
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 5725

Configure a Standard Model MDS-14H

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MDS-14H-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

Did You Know We Offer

  • Longer Travel or Stroke Lengths
  • Custom Cart Orientation & Features
  • Physically Smaller Sizes
  • Increased Repeatability & Accuracy
  • Water Resistant & Washdown Upgrades

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

EDC PDF Thumbnail
EDC Distance Coupling Installation

Download

Videos

Replacement Parts

BBK 14H Bearing Block Replacement Kit
Cart Components | 14H

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14H
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

BBK 14C Bearing Block Replacement Kit
Cart Components | 14C

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14C
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

Accessories

Item # 399-50, Tensioning Tool – 50mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

×
