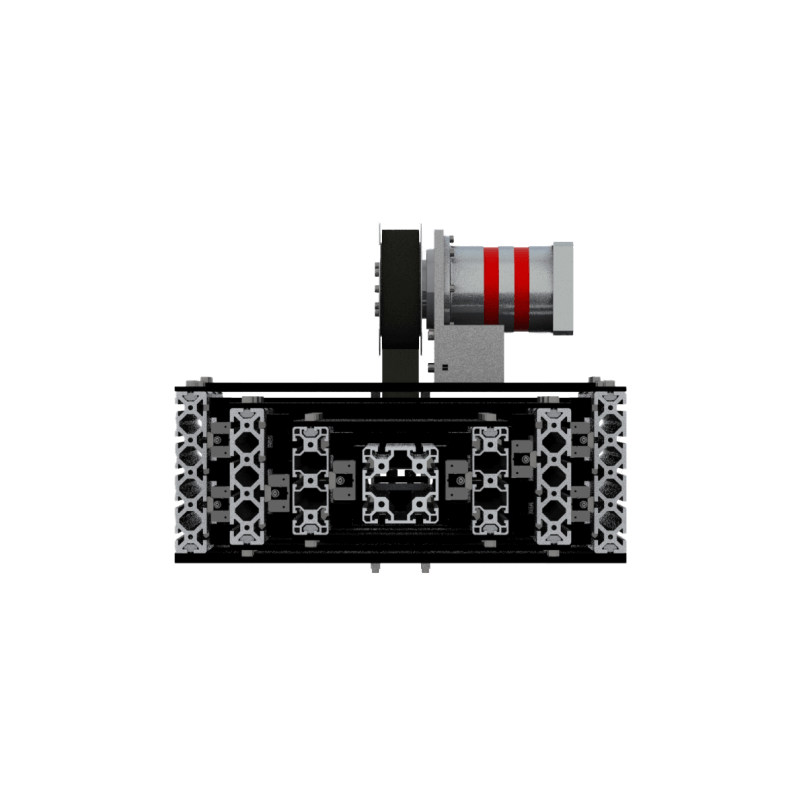

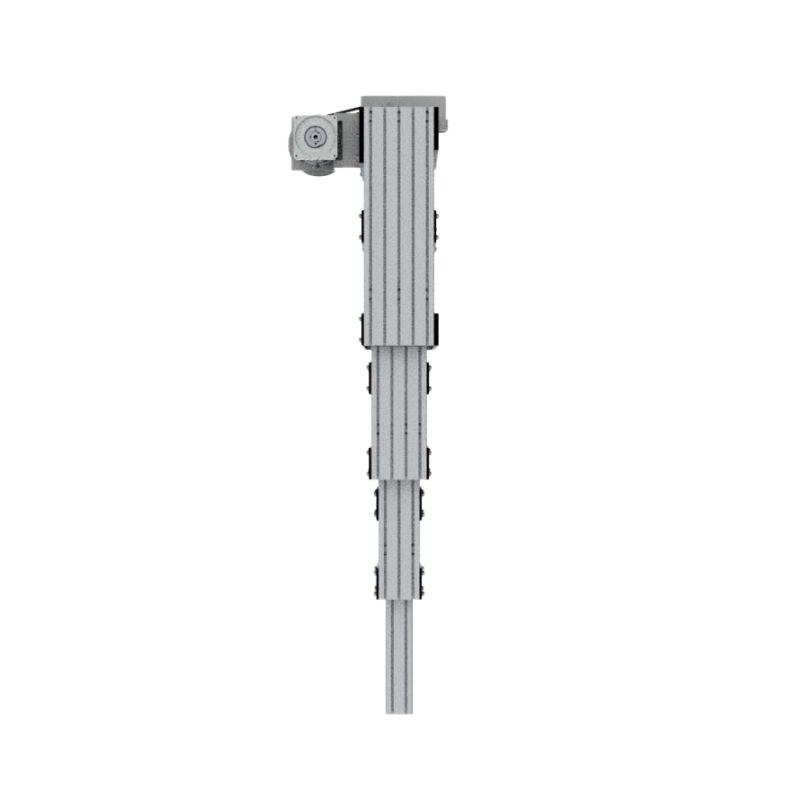

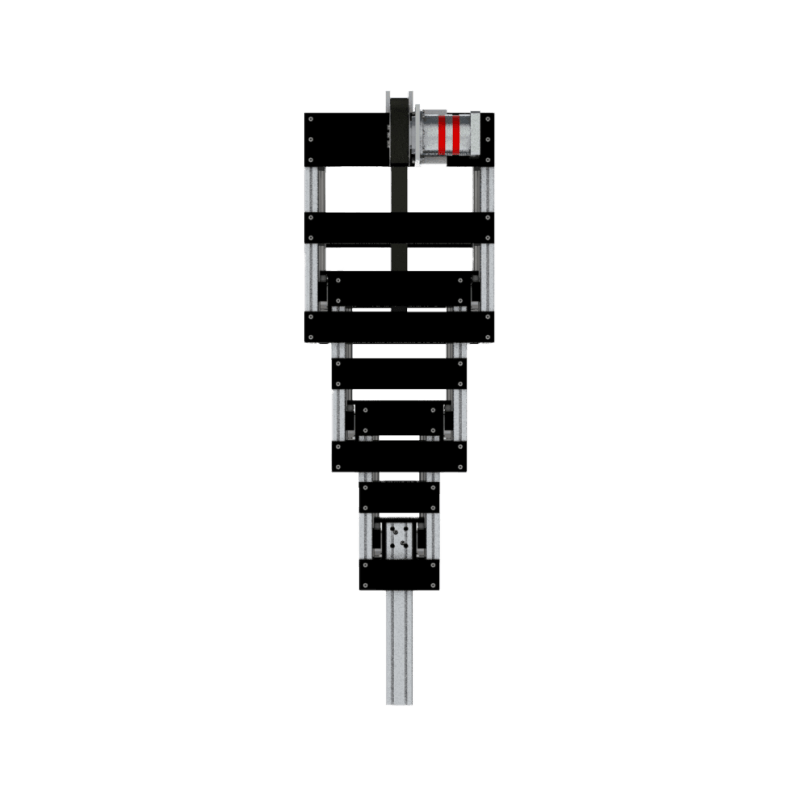

Telescopic Actuators MTA-R20

Features:

  • Multi- Segment Telescoping Design.
  • Flat High Tensile Timing Belt.
  • User defined Strokes.
  • Must be used in Vertical Orientation.
  • One piece machined and stress proof shafted pulley.

Notes:

  • Each Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Specifications

Specifications
Motion Vertical
Max Speed - Vertical - mm/sec 3000
Max Load - Vertical - lbs 250
Repeatability - mm +/- 0.0625
Moment Load - in-lbs[Nm] 1500[170]
Positional Accuracy - mm/meter +/- 0.0625
Acceleration Max - Gs 1
Recommended Belt Running Load - lbf[N] 500[2225]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 32-35
Coefficient of Friction 0.1
Rolling Resistance - lbs / kgs N/A
Travels (25mm increment)
Standard Travels - min to max 525 to 6000

Configurate a Telescopic Actuators MTA-R20

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MTA-R20-0-00-A0-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
