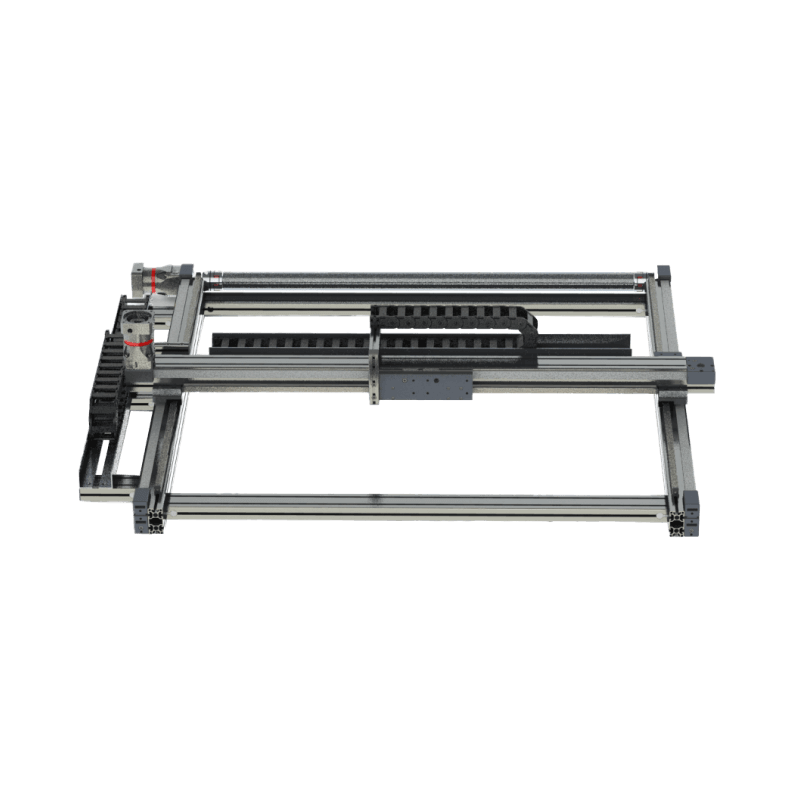

MGS-R20 END

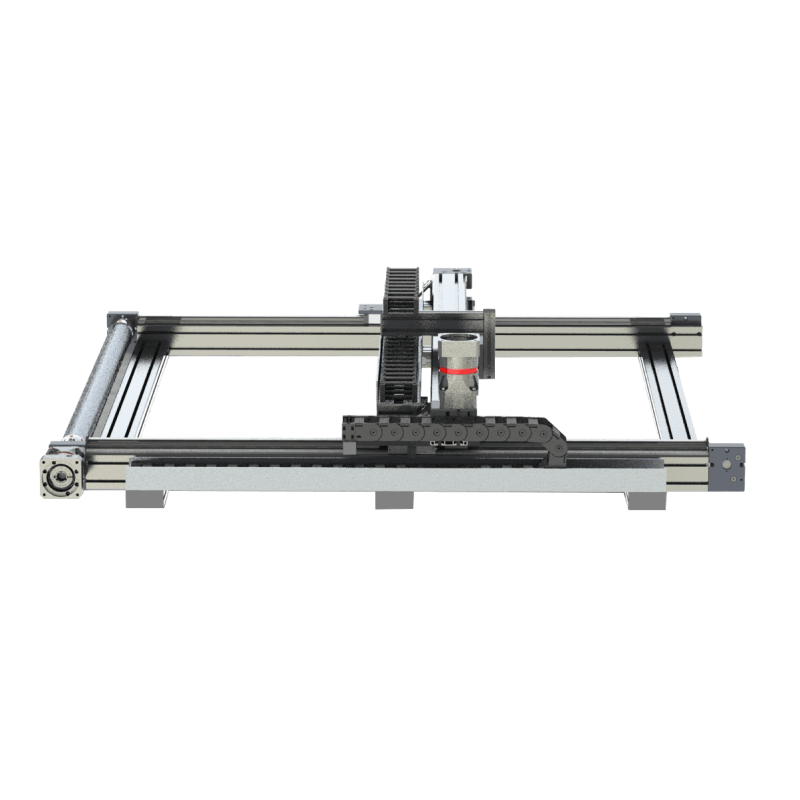

MGS-R20 SIDE

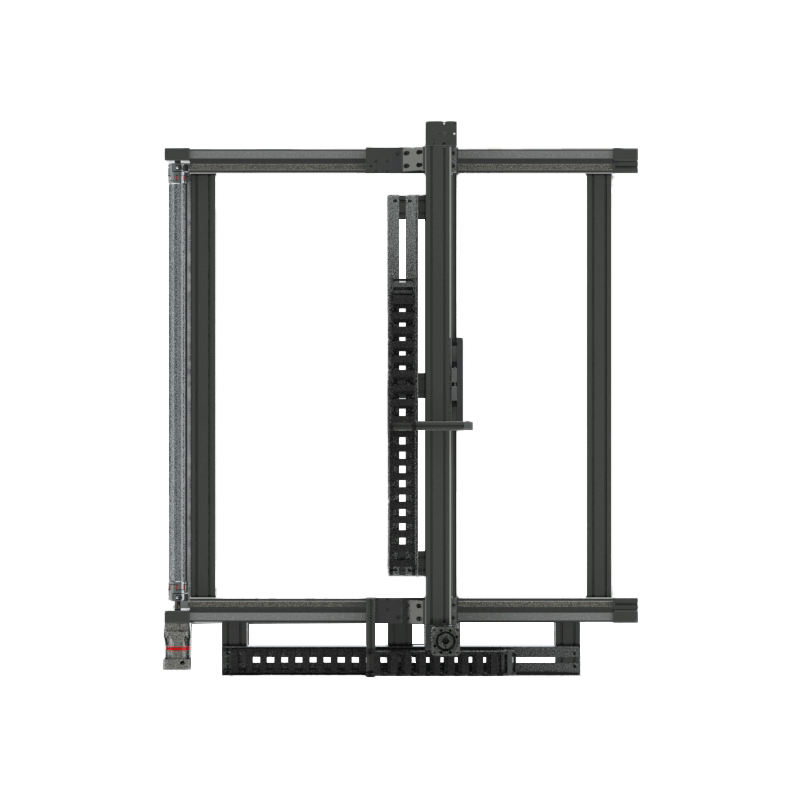

MGS-R20 TOP

MGS-R20

The MGS-R20 is a heavy-duty cartesian gantry system designed for high-speed, precision motion in industrial automation environments. Featuring a reinforced belt drive and a rigid aluminum extrusion, it delivers accurate and stable travel across long distances and demanding loads. Its modular design allows for flexible motor and gearbox mounting configurations, enabling seamless integration into complex multi-axis assemblies. Built with durable aluminum and steel components, the MGS-R20 provides reliable performance, minimal maintenance, and long-term durability in challenging applications.

XX-Y' configuration.
Connection Hardware and Torque Tube included with the Assembly.
User defined Strokes for Each Axis.
Center Drive Right Angle Reducer offered upon request.
Mounting flexibility in either horizontal, vertical, or inverted orientation.

Datasheet - MGS-R20

View Specifications

Download CAD Model

Request Quote Connect with an Engineer

Product Notes

Each XX-Y’ system can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. All XX-Y systems include cable track; please refer to the Product Specification download document for the standard size. Motor sizing information is provided in the Product Specification download document. For travel requirements over standard values, contact Macron Dynamics for assistance.
