MGS-UC2

MGS-UC2 Options

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MGS-UC2-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

About the Product

Features:

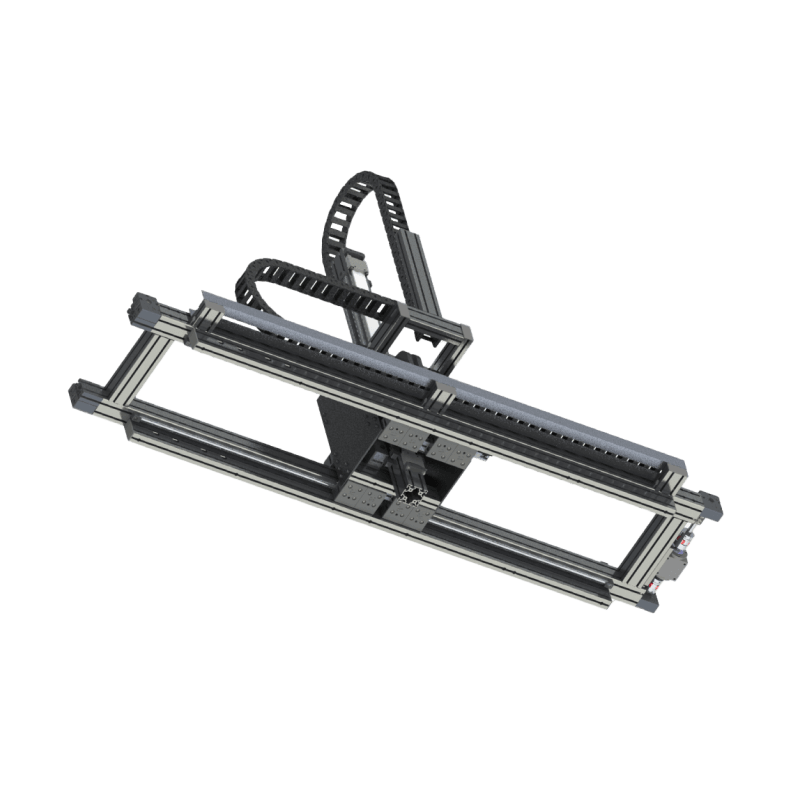

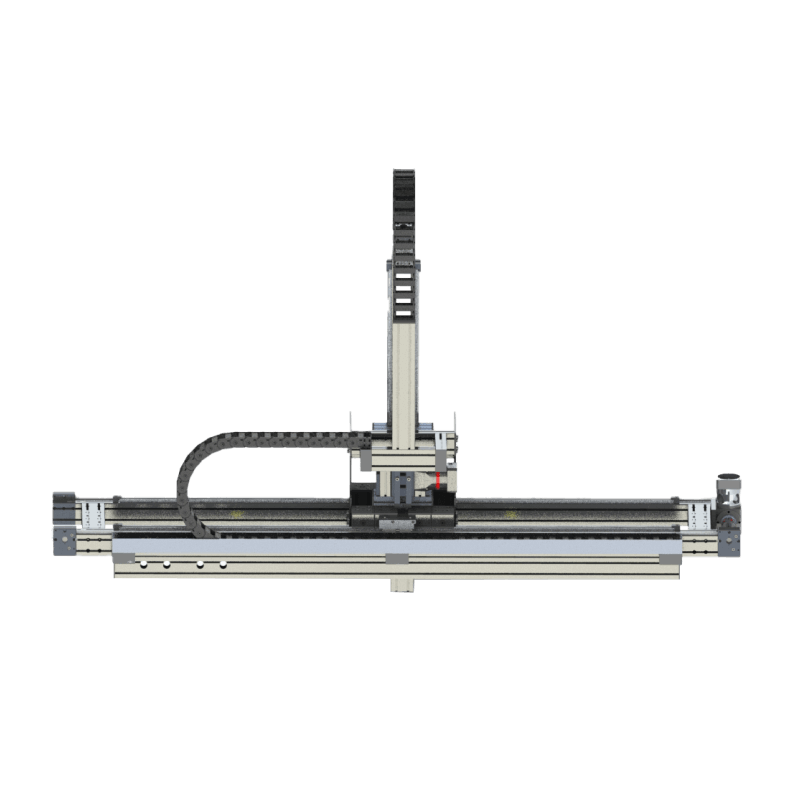

  • X-Z configuration.
  • Connection Hardware and Torque Tube included with the Assembly.
  • User defined Strokes for Each Axis.
  • Center Drive Right Angle Reducer offered upon request.
  • Rotary (Theta) Axis offered upon request.
  • Mounting flexibility in either horizontal, or vertical orientation.

Notes:

  • Each X-Z system can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • All X-Z systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 3000[3000]
Max Load - Horizontal[Vertical] - lbs 300[300]
Repeatability - mm +/- 0.10
Moment Load - in-lbs[Nm] 3200[360]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 3
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 6000
Z Axis Travel - min to max 150 to 1500

User Guides

MGS-UC2
MGS-UC2-Datasheet.pdf

Download

MGS-UC2
UC2 Spare Parts

Download

Gearbox Installation graphic
Gearbox Install

Download

macron-user-guide-maintenance-manual-cover
User Guide Maintenance

Download

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
