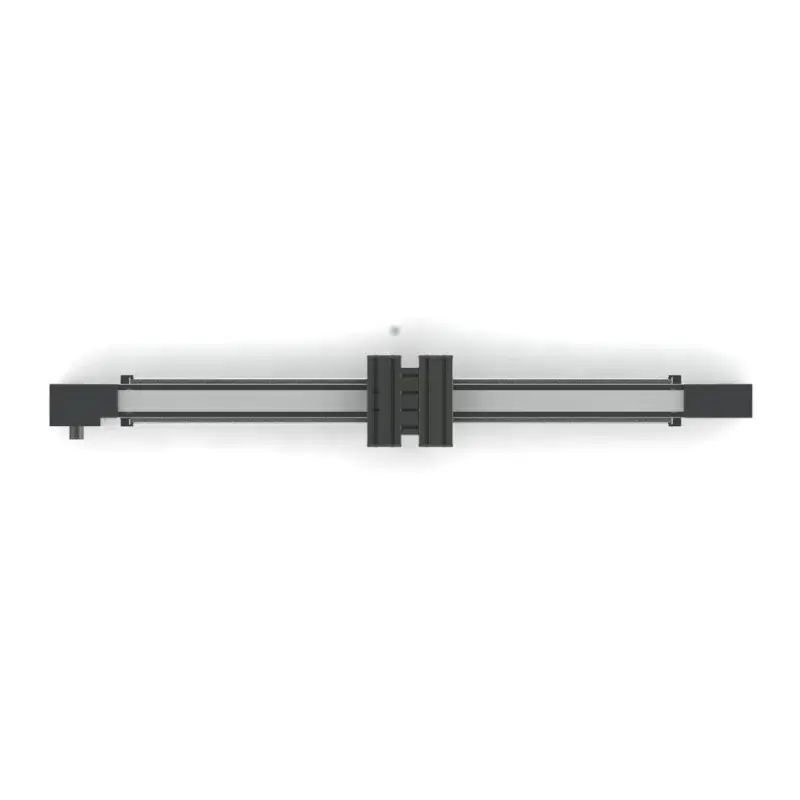

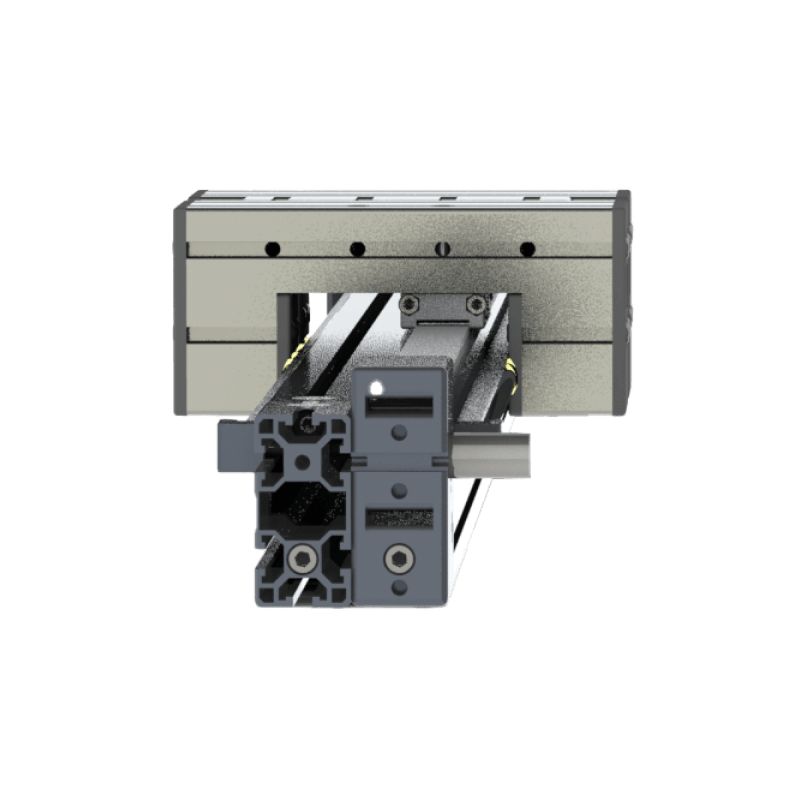

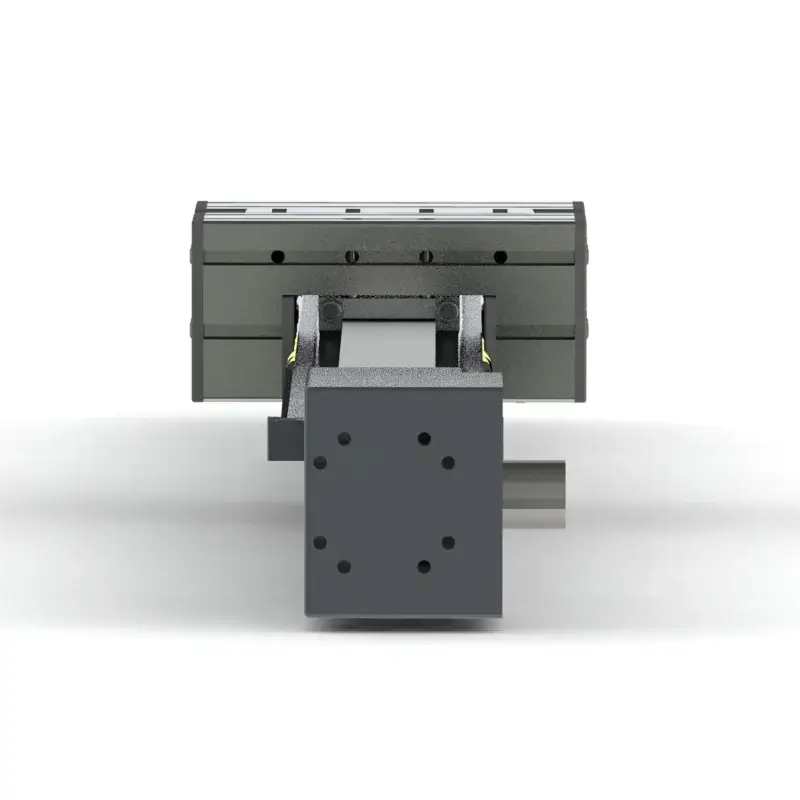

MSA-14H Actuator

Features:

  • Single Axis Belt Driven Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.

Notes:

  • Each Belt Driven Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • Cable Track Available upon request.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 10160[5080]
Max Load - Horizontal[Vertical] - lbs 400[300]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 1132[128]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 9
Recommended Belt Running Load - lbf[N] 2700[12015]
Cart Guide Track roller with round rail
Weight
System Weight - kg (Travel in meters x 12.2) + 19.4
Motor Sizing Information
Weight of Cart - lbs[kgs] 12[5.44]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2) + 1.30) x .34
Travel per Revolution - mm 280
Pulley Pitch Diameter - mm 89.13
Pulley Material / Width - mm steel / 55
Breakaway Torque - oz-in 42 to 44
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 5725

Configurate a MSA-14H Actuator

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MSA-14H-I-JF-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Replacement Parts

BBK 14H Bearing Block Replacement Kit
Cart Components | 14H

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14H
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

BBK 14C Bearing Block Replacement Kit
Cart Components | 14C

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Bearing block replacement kit BBK-14C
  • Roller replacement kit RLK-14S
  • Wiper replacement kit WRK-14H
  • Special adjustment tools, if required, are sold separately

Download Datasheet

Wiper Replacement Kit | WRK – 14H

Fits actuators: MSA-14H, MDC-14H

  • Includes felt wiper, springs, end cap and mounting hardware to retrofit one cart assembly.
  • Lubricating guide rails is critical to the life of an actuator. Replacing on a regular PM cycle is recommended.

Download Datasheet

Pulley Assembly Kit | PAS – BCS / PAI – BCS

Fits actuators: MSA-SB2, MSA-M6S, MDC-M6S, MSA-R6S, MSA-R6D, MSA-135, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, R20, MAA-R6S MSA-BT2

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

Pulley Assembly | PAS – CFS / PAI – CFS

Fits actuators: MSA-SBH, MSA-14H-JF, MDC-14H-JF

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

Cart Assembly | CSA – 14H

Fits actuators: MSA-14H, MDC-14H, MDS-14H

  • Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

Download Datasheet

Drive Belt Kit | DBK – CA – XX

Fits actuators: MSA-SB2, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, MSA-14H-JC, MDC-14S, MDC-14H-JC, MSA-R20, MDC-R20, MAA-R20, MSA-BT2

  • Includes belt and tension assembly with hardware. Tension tool sold separately.
  • Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Accessories

Item # 399-50, Tensioning Tool – 50mm Belts

Item # 397, Torque Wrench 25-250 lbs-in

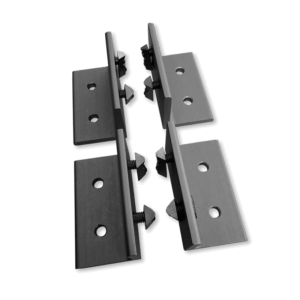

MKX-100 – Actuator Mounting Kit (Heavy Duty)
