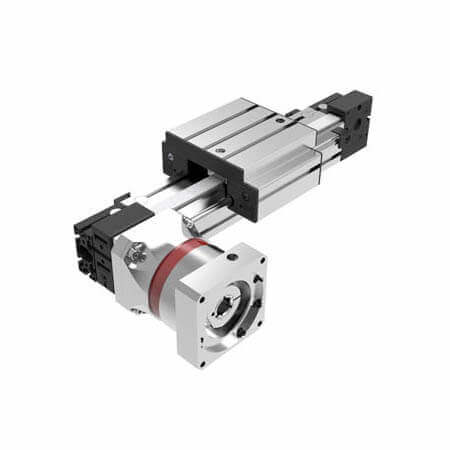

This 3D illustration shows the motor interface plate at a nominal size. The actual thickness and overall size (length and width) will be dependent on motor model selection and will be sized on order.
| 3:1 | 10:1 | 5:1 | 7:1 | |
| Nominal Output Torque – Nm (lb-in) | 100 (885) | 100 (885) | 120 (1062) | 120 (1062) |
| Maximum Acceleration Torque – Nm (lb-in) | 150 (1328) | 150 (1328) | 180 (1593) | 180 (1593) |
| Nominal Input Speed – RPM | 2500 | 2500 | 2500 | 2500 |
| Maximum Input Speed – RPM | 5000 | 5000 | 5000 | 5000 |
| Standard Output Backlash – arcmin | <8 | <8 | <8 | <8 |
| Weight – kg (lb) | 5.8 (12.8) | 5.8 (12.8) | 5.8 (12.8) | 5.8 (12.8) |
| Mass Moment of Inertia – kg/cm2 (lb-in2) | 6.54 (2.235) | 3.1 (1.059) | 4.05 (1.384) | 3.4 (1.162) |
| Efficiency at Load | 0.92 | 0.92 | 0.92 | 0.92 |
| No Load Torque Nm | 1 (8.85) | 1 (8.85) | 1 (8.85) | 1 (8.85) |
| Motor input shaft dia. (max) | 24 mm | 24 mm | 24 mm | 24 mm |
Enter your configuration options to submit a Request for a Quote or a CAD drawing:
