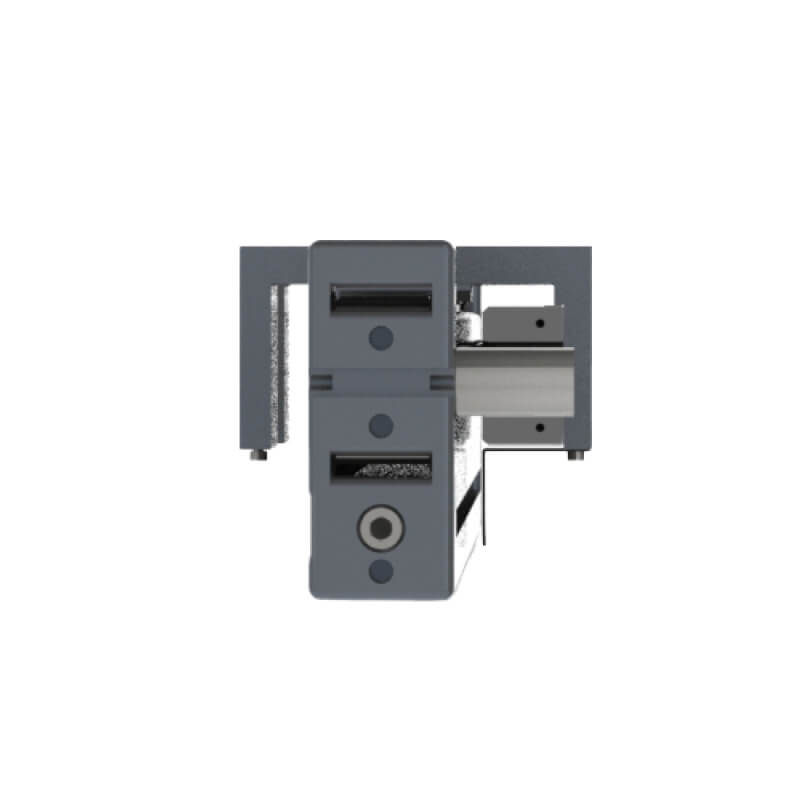

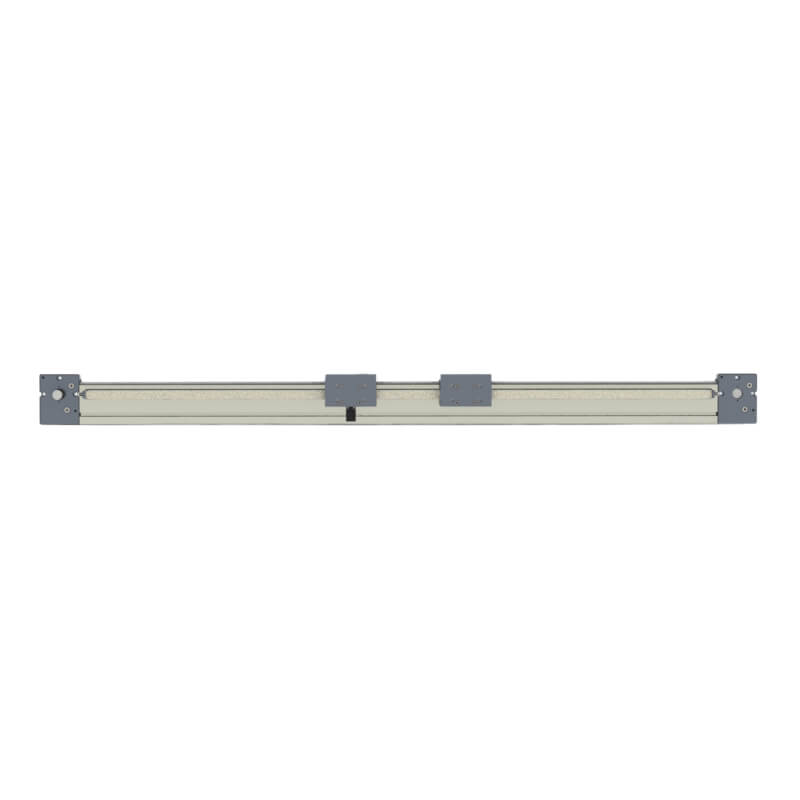

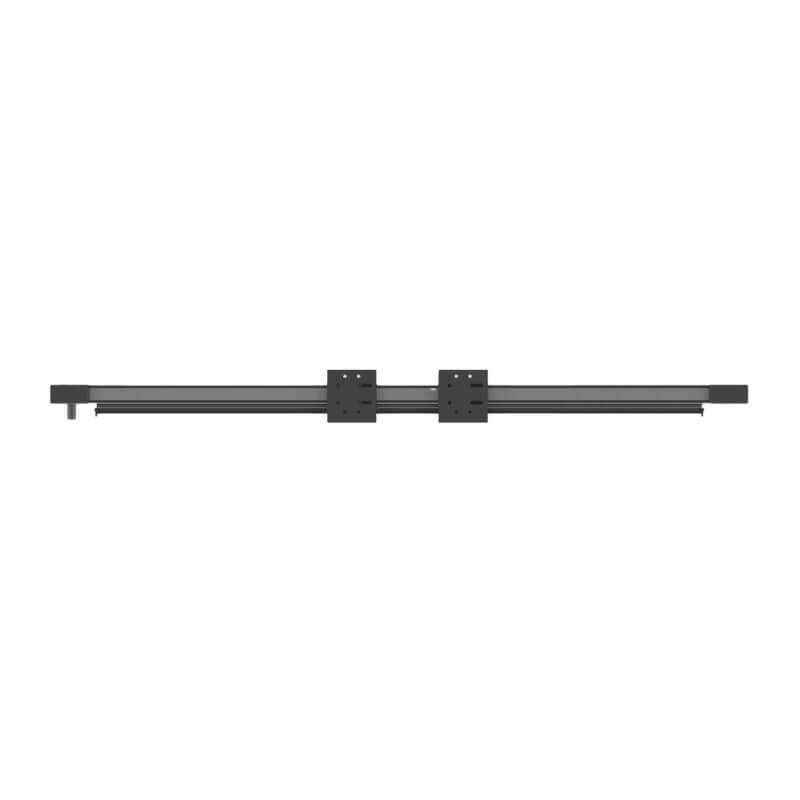

MDC-R6S

The MDC-R6S is a belt-driven linear actuator designed for precision motion in industrial automation environments. Featuring a reinforced timing belt and rigid aluminum extrusion, it delivers smooth, accurate travel across extended lengths and high speeds. Its modular design supports multiple motor and gearbox mounting configurations, allowing for flexible integration into custom multi-axis systems. Built with durable aluminum and steel components, the MDC-R6S offers consistent performance, minimal maintenance, and long-term reliability in demanding applications.

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.
Datasheet - MDC-R6S
View Specifications
Download CAD Model
Request Quote Connect with an Engineer
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo

Product Notes

Each actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 3000[3000]
Max Load - Horizontal[Vertical] - lbs 50[25]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 25[2.8]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 9
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Track roller with round rail
Weight
System Weight - kg (Travel in meters x 3.9) + 5.1
Motor Sizing Information
Weight of Cart - lbs[kgs] 3.5[1.59]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+.82) x .12
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm Steel / 28.9
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 5825

Configure a Standard Model MDC-R6S

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

MPS-064 Inline Gearbox
MPS-084 Inline Gearbox
MPS-114 Inline Gearbox
MRS-064 Right Angle Gearbox
MRS-084 Right Angle Gearbox
MRS-114 Right Angle Gearbox
MRH-064 Right Angle Gearbox
MRH-084 Inline Gearbox
MRH-114 Inline Gearbox
MPG-064 Inline Gearbox
MPG-084 Inline Gearbox
MPG-114 Inline Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MDC-R6S-E-BC-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

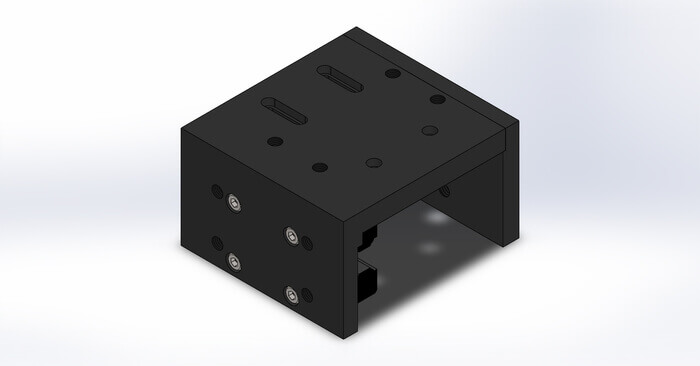

Cart Assembly | CSA – R6S
