MDC-M6S

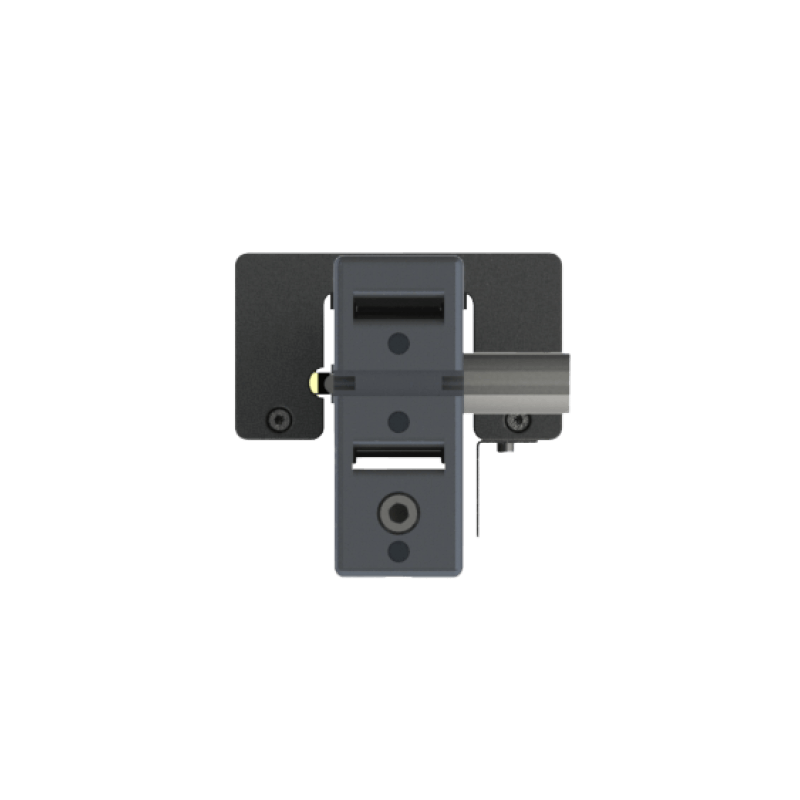

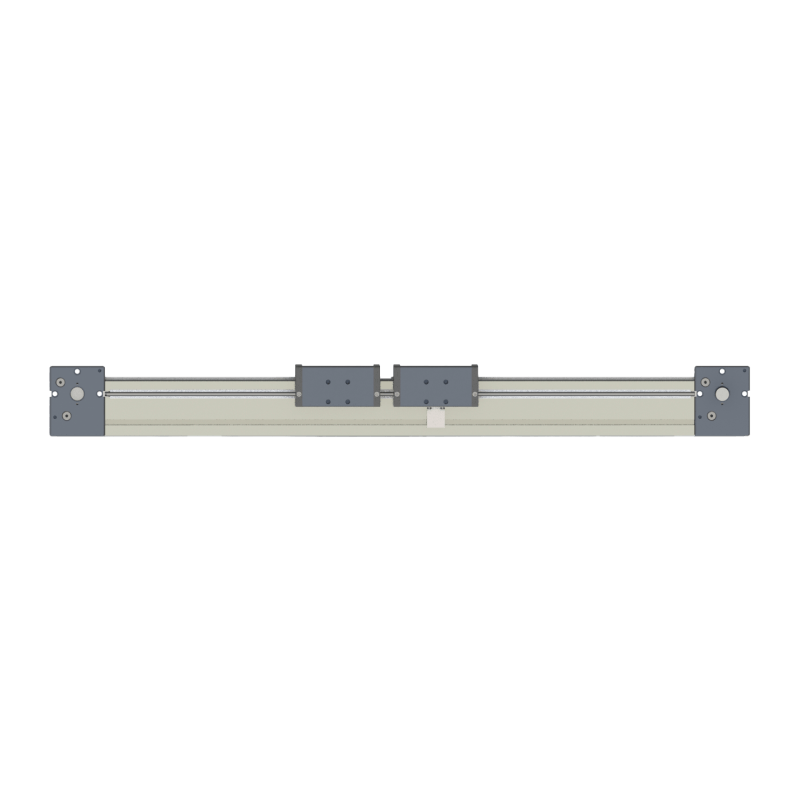

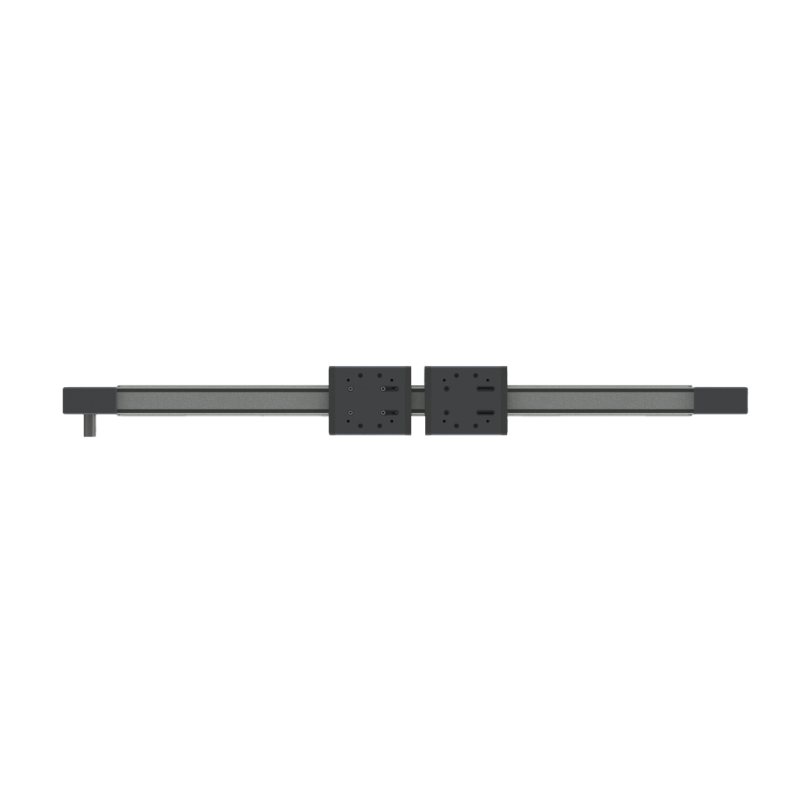

The MDC-M6S is a compact linear actuator designed for precision motion in space-constrained industrial automation systems. Featuring a belt-driven configuration with a lightweight aluminum extrusion, it delivers smooth, accurate travel across moderate distances. The actuator supports flexible motor and gearbox mounting options for seamless integration into custom multi-axis assemblies. Built with durable components, the MDC-M6S offers consistent performance, low maintenance, and long-term reliability in light-duty applications.

  • Dual Cart Single Axis Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Multiple Carts Available upon Request.
  • Can be Made into a centering actuator.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.
dadtasheet - MDC-M6S
View Specifications
Download CAD Model
Request Quote Connect with an Engineer
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo

Product Notes

Each actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 6230[3115]
Max Load - Horizontal[Vertical] - lbs 50[25]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] 25[2.8]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 9
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Track roller with round rail
Weight
System Weight - kg 1
Motor Sizing Information
Weight of Cart - lbs[kgs] 3.5[1.59]
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+.85) x .12
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm Steel / 28.9
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.1
Rolling Resistance - lbs / kgs 1 / 1
Travels (25mm increment)
Standard Travels - min to max 150 to 5825

Configure a Standard Model MDC-M6S

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

MPS-064 Inline Gearbox
MPS-084 Inline Gearbox
MPS-114 Inline Gearbox
MRS-064 Right Angle Gearbox
MRS-084 Right Angle Gearbox
MRS-114 Right Angle Gearbox
MRH-064 Right Angle Gearbox
MRH-084 Inline Gearbox
MRH-114 Inline Gearbox
MPG-064 Inline Gearbox
MPG-084 Inline Gearbox
MPG-114 Inline Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MDC-M6S-E-BC-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

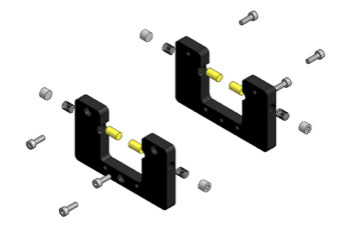

Wiper Replacement Kit | WRK – M6S

Fits actuators: MSA-M6S, MDC-M6S

  • Includes felt wiper, springs, end cap and mounting hardware to retrofit one cart assembly.
  • Lubricating guide rails is critical to the life of an actuator. Replacing on a regular PM cycle is recommended.

Download Datasheet

Pulley Assembly Kit | PAS – BCS / PAI – BCS

Fits actuators: MSA-SB2, MSA-M6S, MDC-M6S, MSA-R6S, MSA-R6D, MSA-135, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, R20, MAA-R6S MSA-BT2

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

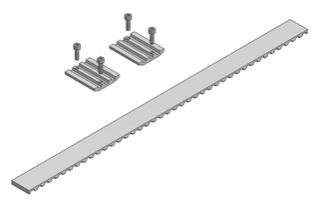

Drive Belt Kit | DBK – CC – XX

Fits actuators: MSA-M6S, MSA-R6S, MDS-R6S, MSA-R5D, MSA-R6D, MAA-R15, MAA-R6D

  • Includes belt and tension assembly with hardware. Tension tool sold separately.
  • Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Cart Assembly | CSA – M6S

Fits actuators: MSA-M6S, MDS-M6S

  • Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts
