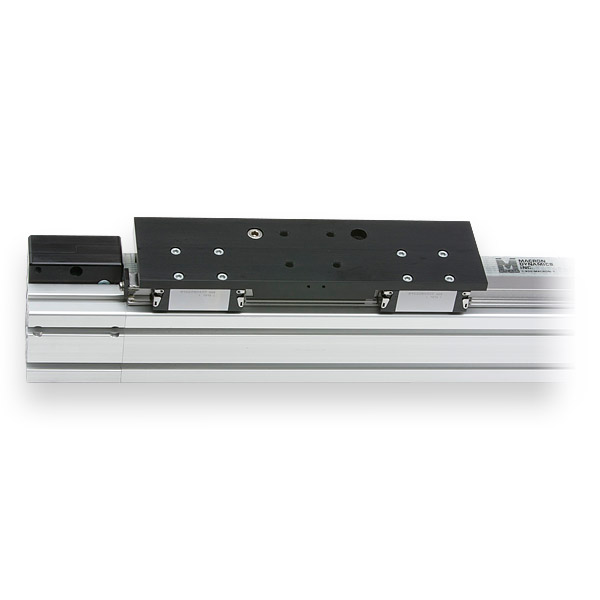

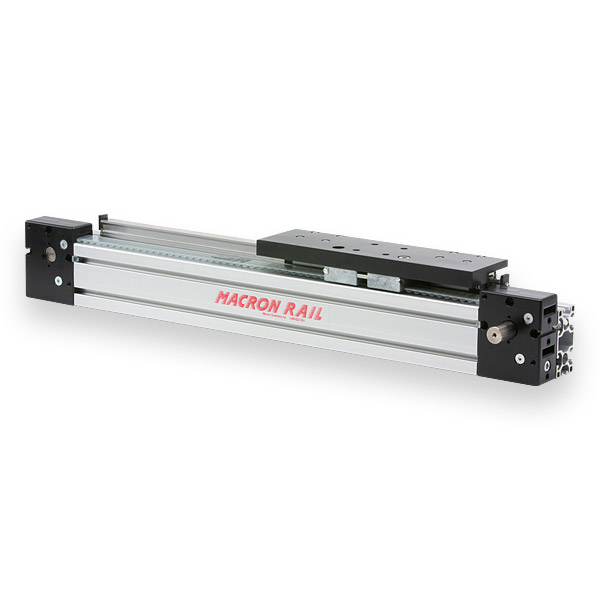

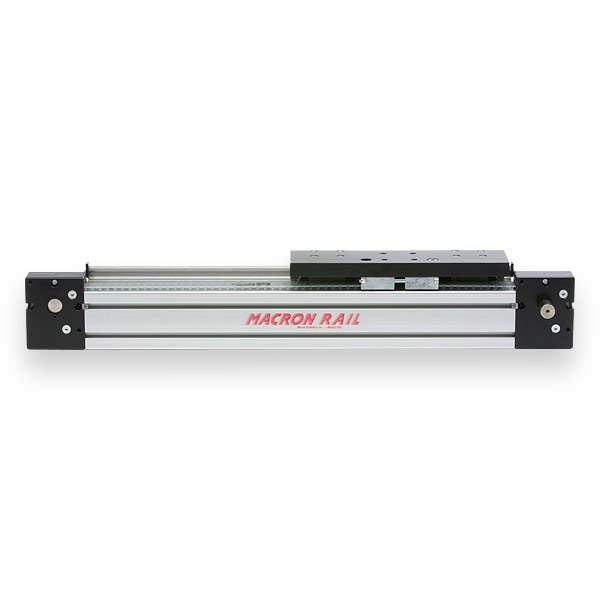

MSA-R20 Rail Actuator
MSA-R20 Options
Enter your configuration options below to submit a Request for a Quote or a CAD drawing:
TRAVELS (Min 150 mm - Max 5650 mm in 25 mm increments)
- Gearboxes
- Sensors
- Motor Mounting
Part Number As Configured
MSA-R20-G-BC-x0x-x
*Select your configuration options to submit a request.
Please Confirm Your Contact Information:
Notes:
Motor and model part number are required for final order process.
Features
- Extruded aluminum actuator body with T-slots for ease of mounting
- Easy to adjust belt tensioner
- One piece, machined and stress proof shafted pulley
- Two 20 series linear bearings with single covered steel profile rail
- Zero backlash belt to pulley design
- Corrosion resistant components
- Longer travel lengths are available on special request
Specifications
| Specifications | |
| Motion | Horizontal or Vertical |
| Max Speed – horizontal [vertical] – mm/sec | 5000 [5000] |
| Max Load – horizontal [vertical] – lbs. | 1000 [300] |
| Repeatability – mm | +/- 0.025 |
| Moment Load Max – in.-lbs. [Nm] | 1062 [120] |
| Positional Accuracy – mm/meter | +/- 0.4 |
| Acceleration max – G’s | 10 |
| Beam Dimensions – mm | 80 x 80 |
| Ultimate tensile strength of belt – lbs. [N] | 1750 [7787] |
| Recommended belt running load – lbs. [N] | 437 [1945] |
| Cart Guide | Linear bearing with profile rail |
| Motor Sizing Information | |
| Weight of Drive Pulley – oz. / kgs. | 11.3 / 0.32 |
| Weight of Idler Pulley – oz. / kgs. | 7.7 / 0.22 |
| Weight of Cart – lbs. / kgs. | 4.0 / 1.81 |
| Weight of Belt – kgs. based on travel selected | ((Travel in meters x 2) + .99) x .12 |
| Travel per Revolution – mm | 150 |
| Pulley Pitch Diameter – mm | 47.75 |
| Pulley Material / Width – mm | steel / 28.9 |
| Breakaway Torque – oz.-in | 26-28 |
| Coefficient of Friction | 0.05 |
| Rolling Resistance – lbs. / kgs. | N/A |
| Weight | |
| System Weight (kg) | (Travel in meters x 7.8) + 7.4 |
| Travels | |
| Standard Travels- min / max – mm (25 mm increment) | 150 / 5650 |
