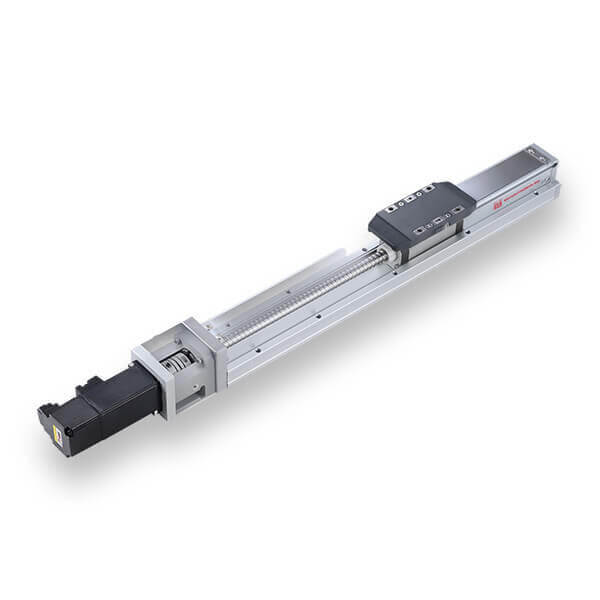

GTH5 Actuator
More Views
GTH5 Options
Enter your configuration options below to submit a Request for a Quote or a CAD drawing:
TRAVELS (Min 100 mm - Max 300 mm in 100 mm increments)
- Sensors
- Motor Mounting
Part Number As Configured
GTH5-Lx-x-MMK
*Select your configuration options to submit a request.
Please Confirm Your Contact Information:
Features
- Compact design with cover.
- Can be used as a Z axis on the HBG12/25 and on the smaller gantries.
- Can mount to any stepper or servo motor.
Specifications
| Specifications | |
| Screw Pitch – mm | 5, 10, 20 |
| Nut Type | Ball Screw |
| Maximum Speed – mm/s* | 250 (05), 500 (10), 1000 (20) |
| Maximum Load – kg. | Horizontal = 10 Vertical = 2.5 |
| Repeatability – mm | +/- 0.005 |
| Efficiency | 90% |
| Cart Guide | Linear bearing with profile rail |
| Motor Sizing Information | |
| Weight of Cart – grams. | 457 |
| Screw Lead – mm | 5 (05), 10 (10), 20 (20) |
| Moment Loading | |
| Mx – Nm | 103 |
| My – Nm | 103 |
| M2 – Nm | 144 |
| Weight | |
| System Weight (kg.) | 100mm: 1.8 kg 200mm; 2.2kg 300mm; 2.5 kg |
| Travels | |
| Standard Travels- min / max – mm (100 mm increment) | 100 to 300 |
*based on 100mm stroke
