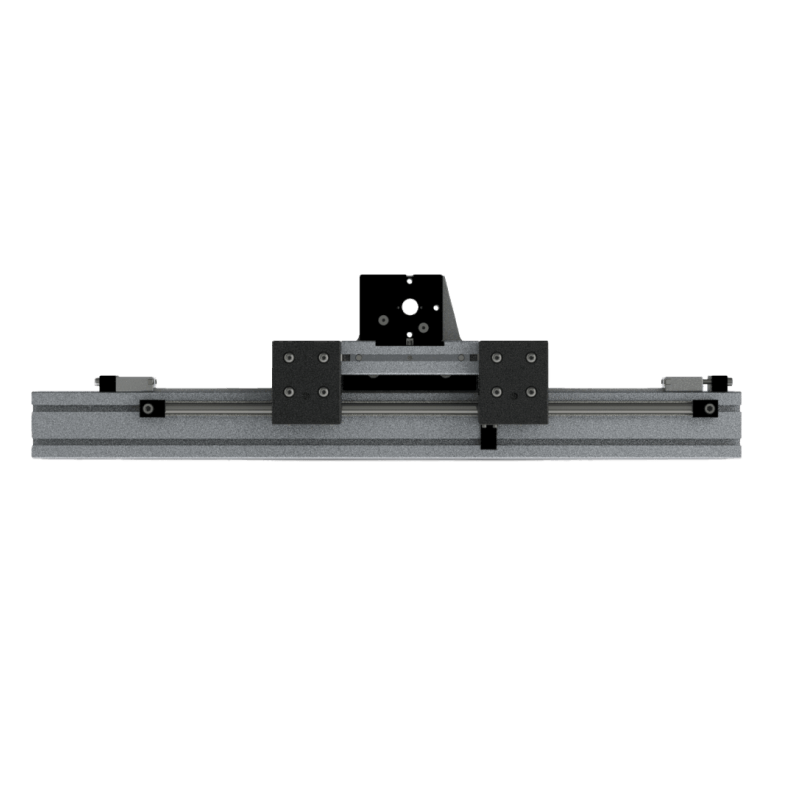

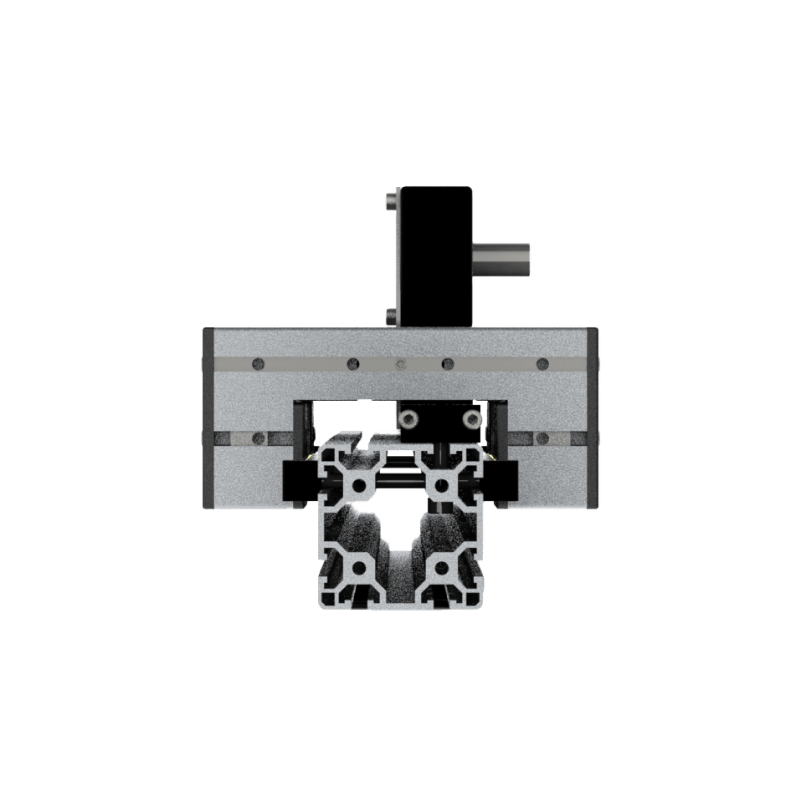

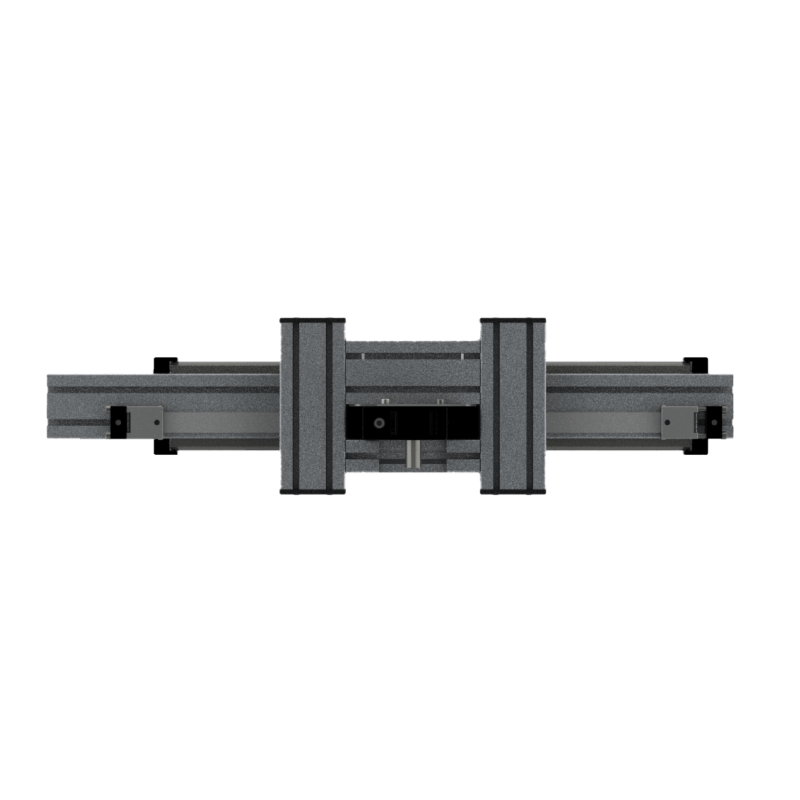

MSA-14Z Actuator

The MSA-14Z is a vertical lift actuator designed for controlled Z-axis motion in industrial automation environments. Featuring a belt-driven configuration with a rigid aluminum extrusion, it delivers smooth and accurate vertical travel under load. The actuator supports multiple motor and gearbox mounting options for integration into custom multi-axis systems. Built with robust aluminum and steel components, the MSA-14Z provides reliable performance, long-term durability, and minimal maintenance in high-duty applications.

  • Omega Drive Belt Actuator.
  • Excellent alternative to rack and pinion technology.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.
Datasheet - MSA-14Z
View Specifications
Download CAD Model
Request Quote Connect with an Engineer
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo
Amazon Logo
Disney Logo
Faro Logo
Universal Logo
Tesla Logo
SpaceX Logo
P&G Logo

Product Notes

Each actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 75[75]
Repeatability - mm +/- 0.0625
Moment Load - in-lbs[Nm] 1600[180]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 2
Recommended Belt Running Load - lbf[N] 437[1945]
Cart Guide Track roller with round rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm Steel / 28.9
Breakaway Torque - oz-in 42-44
Coefficient of Friction 0.05
Rolling Resistance - lbs / kgs 0.018 / 0.008
Travels (25mm increment)
Standard Travels - min to max 150 to 1500

Configure a Standard Model MSA-14Z Actuator

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Normal Drive shaft diagram

Travels (in 25mm increments)

Please Give Me Options For:

MPS-084 Inline Gearbox
MPS-114 Inline Gearbox
MRS-084 Right Angle Gearbox
MRS-114 Right Angle Gearbox
MRH-084 Inline Gearbox
MRH-114 Inline Gearbox
MPG-084 Inline Gearbox
MPG-114 Inline Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MSA-14Z-G-BC-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
