VERSATILE. SCALABLE. SIMPLE.

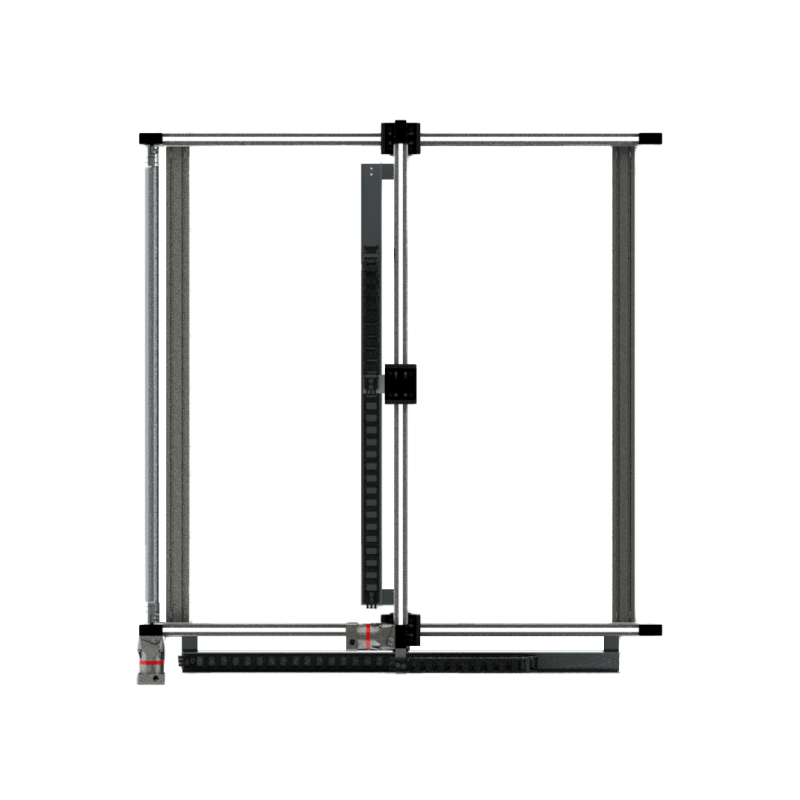

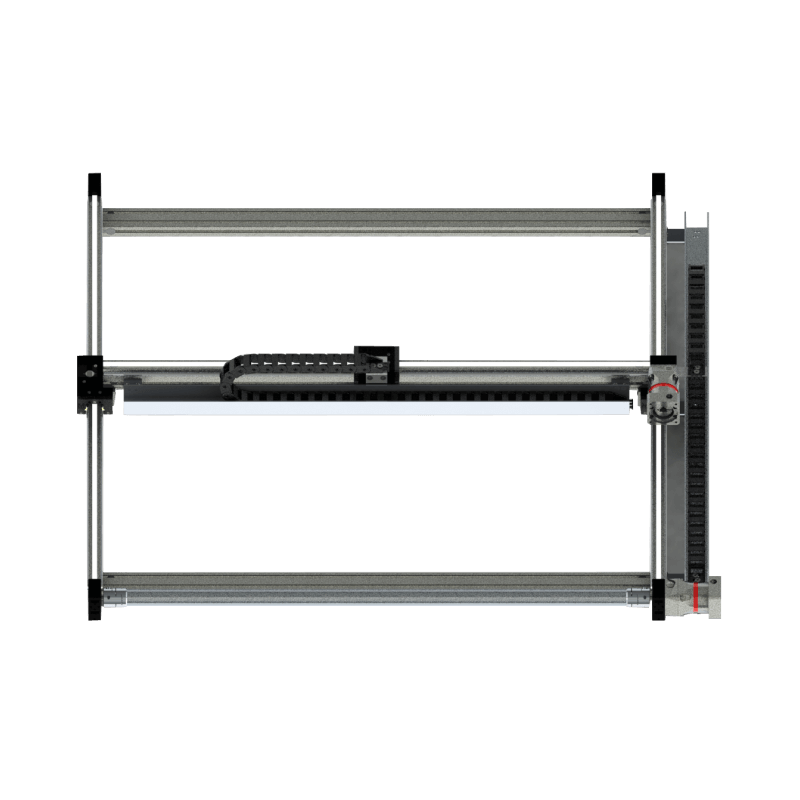

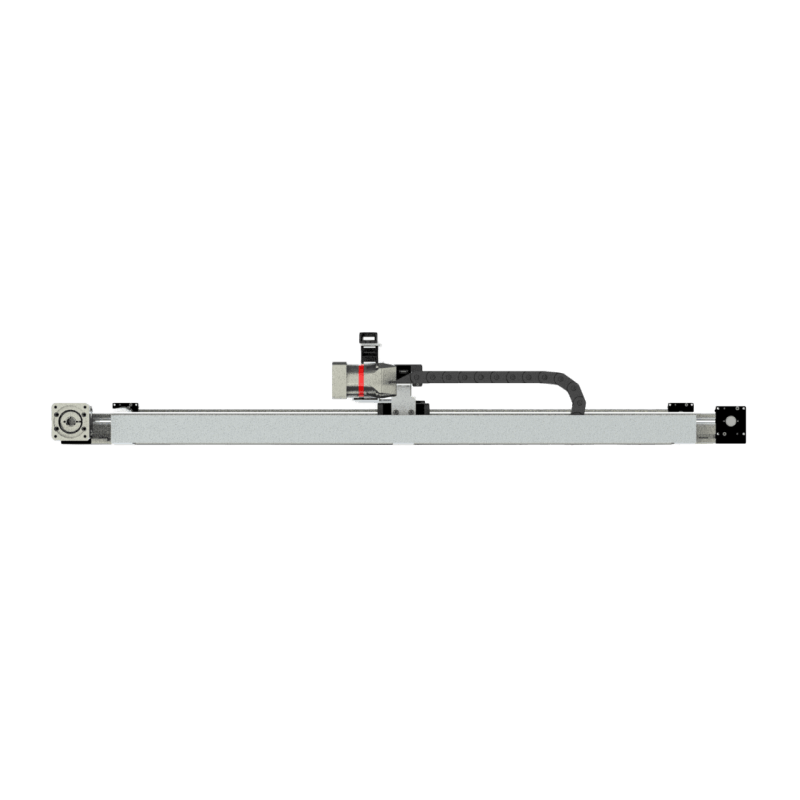

The MGS-628 is a heavy-duty linear actuator designed for long-travel, high-load motion in industrial automation systems. Featuring a steel-reinforced belt drive and rigid aluminum extrusion, it delivers smooth, accurate movement across extended distances. Its modular design supports a range of motor and gearbox mounting configurations for integration into complex multi-axis assemblies. Built with durable components, the MGS-628 provides consistent performance, low maintenance, and reliable operation in demanding environments.
Each XX-Y’ system can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. All XX-Y systems include cable track; please refer to the Product Specification download document for the standard size. Motor sizing information is provided in the Product Specification download document. For travel requirements over standard values, contact Macron Dynamics for assistance.
These are standard specifications, if you need a custom configuration, please use our custom configuration request form.
| Motion | Horizontal, Vertical |
| Max Speed - Horizontal[Vertical] - mm/sec | 2000[2000] |
| Max Load - Horizontal[Vertical] - lbs | 20[20] |
| Repeatability - mm | +/- 0.5 |
| Moment Load - in-lbs[Nm] | Contact Macron Dynamics |
| Positional Accuracy - mm/meter | 1 |
| Acceleration Max - Gs | 1 |
| Recommended Belt Running Load - lbf[N] | 100[445] |
| Cart Guide | Track roller with round rail |
| System Weight - kg | See Data Sheet |
| Weight of Cart - lbs[kgs] | See Data Sheet |
| Weight of Belt - kgs based on travel selected | See Data Sheet |
| Travel per Revolution - mm | See Data Sheet |
| Pulley Pitch Diameter - mm | See Data Sheet |
| Pulley Material / Width - mm | See Data Sheet |
| Breakaway Torque - oz-in | N/A |
| Coefficient of Friction | 0.1 |
| Rolling Resistance - lbs / kgs | N/A |
| X Axis Travel - min to max | 150 to 3000 |
| Y Axis Travel - min to max | 150 to 3000 |
