VERSATILE. SCALABLE. SIMPLE.

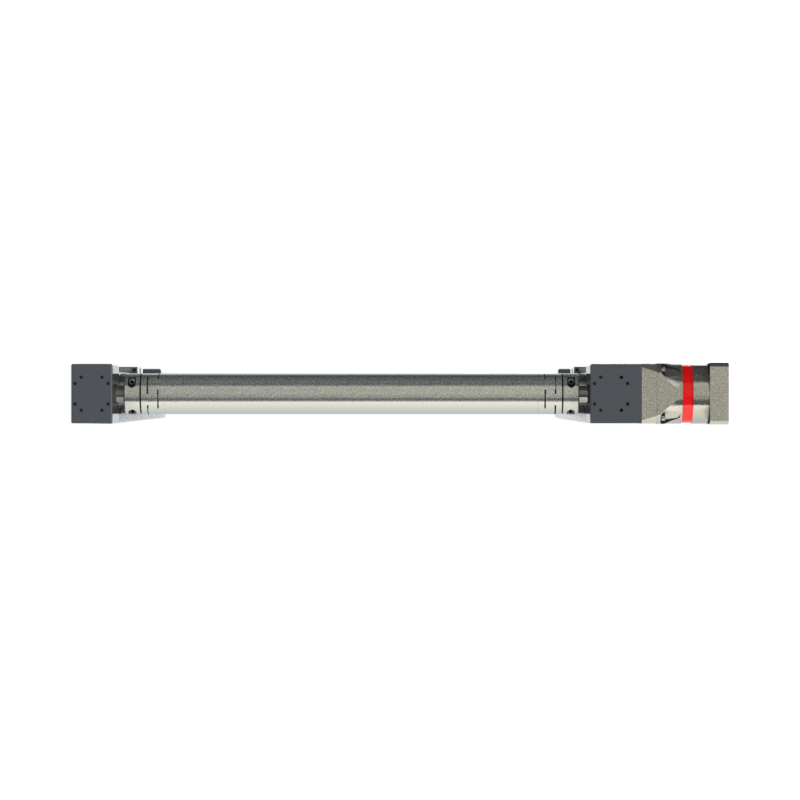

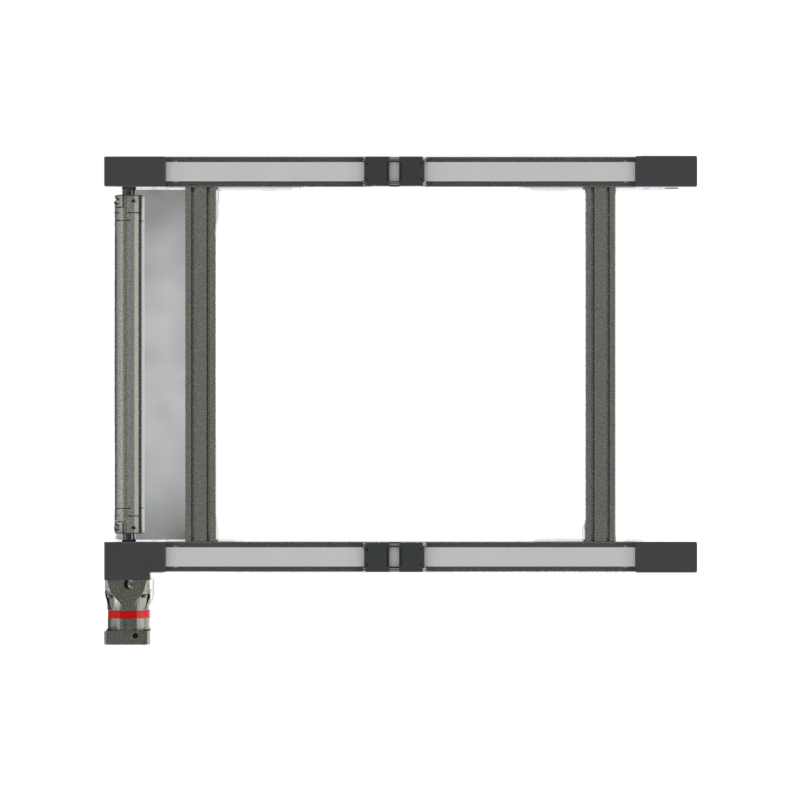

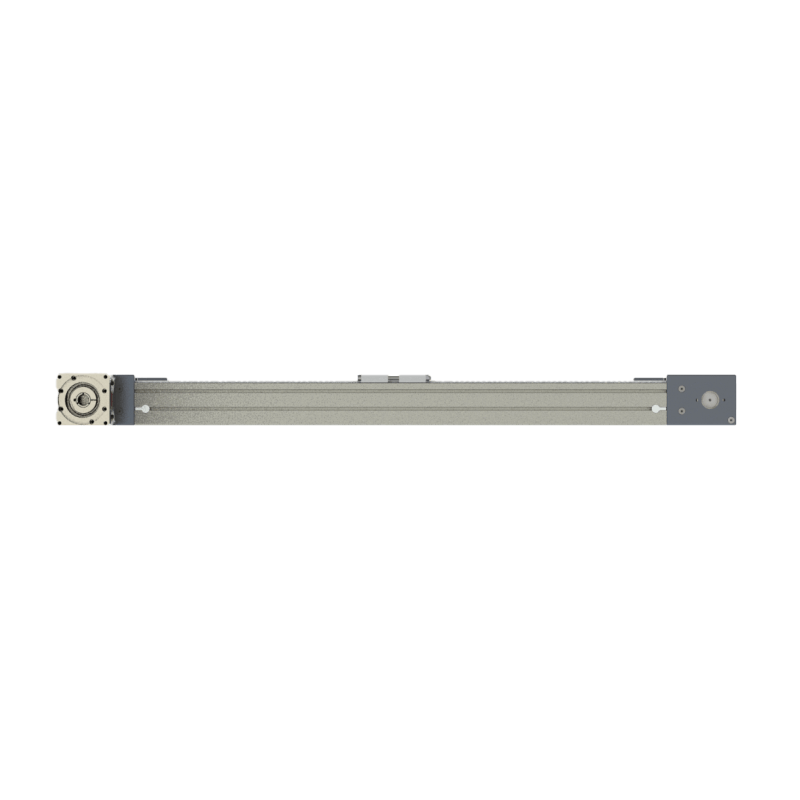

The MDS-SBH is a cartesian gantry robot designed for precise linear motion in industrial automation environments requiring synchronized dual-axis control. Featuring a stacked belt-driven configuration with independent Y-axis carriages, it delivers accurate and stable movement for coordinated material handling and assembly tasks. The system supports flexible motor and gearbox mounting options for integration into custom multi-axis platforms. Constructed with robust aluminum and steel components, the MDS-SBH provides long-lasting durability, minimal maintenance, and consistent performance in high-duty applications.
Center-to-center spacing is the distance between each actuator cart’s center line. Each X-X’ system can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. Some X-X’ systems include cable track; please refer to the Product Specification download document for the standard size. Motor sizing information is provided in the Product Specification download document. For travel requirements over standard values, contact Macron Dynamics for assistance.
These are standard specifications, if you need a custom configuration, please use our custom configuration request form.
| Motion | Horizontal, Vertical |
| Max Speed - Horizontal[Vertical] - mm/sec | 5000[5000] |
| Max Force - Horizontal[Vertical] - lbf | 2500[2500] |
| Repeatability - mm | +/- 0.0625 |
| Moment Load - in-lbs[Nm] | N/A |
| Positional Accuracy - mm/meter | +/- 0.4 |
| Acceleration Max - Gs | 5 |
| Recommended Belt Running Load - lbf[N] | 2500[12015] |
| Cart Guide | N/A |
| System Weight - kg | ((Travel in meters x 11.7) + 13.4) x 2 |
| Weight of Cart - lbs[kgs] | N/A |
| Weight of Belt - kgs based on travel selected | (((Travel in meters x 2) + 1.10) x .34) x 2 |
| Travel per Revolution - mm | 280 |
| Pulley Pitch Diameter - mm | 89.13 |
| Pulley Material / Width - mm | Steel / 55.0 |
| Breakaway Torque - oz-in | N/A |
| Coefficient of Friction | 0.1 |
| Rolling Resistance - lbs / kgs | N/A |
| X Axis Travel - min to max | 150 to 5850 |
