The MAA-R20 is a belt-driven linear actuator designed for high-speed, precision motion in industrial automation systems. Featuring a reinforced timing belt and a rigid aluminum extrusion, it delivers stable and accurate travel across extended lengths. Its modular design supports a variety of motor and gearbox mounting options, allowing for easy integration into custom multi-axis configurations. Built with durable aluminum and steel components, the MAA-R20 provides consistent performance, minimal maintenance, and long-term reliability in demanding environments.

Single Axis Belt Driven Actuator.
User defined Strokes.
Mounting flexibility in any orientation.
Extruded aluminum actuator body with T-slots for ease of mounting.
Easy to adjust belt tensioner.
One piece machined and stress proof shafted pulley.
Zero backlash belt to pulley design.
Corrosion resistant components.
Washdown Duty or Water- Resistant Options upon request.

Datasheet - MAA-R20

View Specifications

Download CAD Model

Request Quote Connect with an Engineer

Product Notes

Each belt-driven actuator can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. Cable track is available upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.

User Guides

Gearbox Installation graphic

Gearbox Install

User Guide Maintenance

Videos

Single Axis Actuator Videos

Replacement Parts

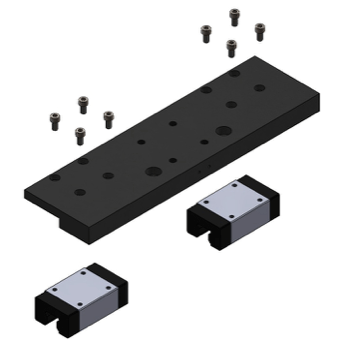

Cart Assembly | CSA – R20

Fits actuators: MSA-R20, MDS-R20, MAA-R20

Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

Download Datasheet

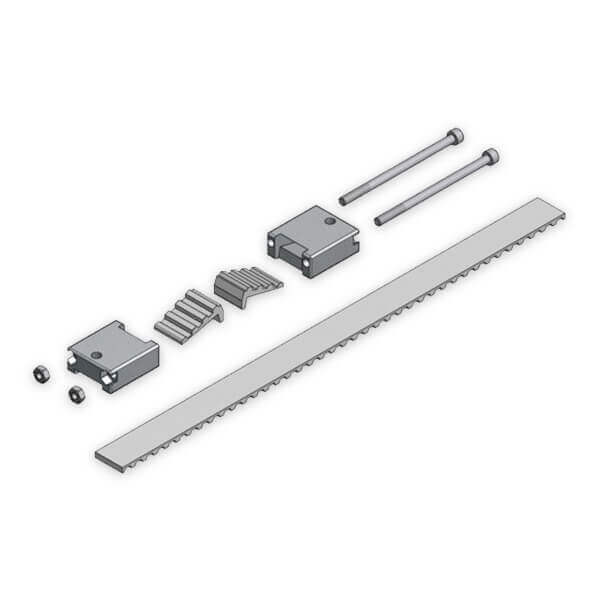

Drive Belt Kit | DBK – CA – XX

Fits actuators: MSA-SB2, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, MSA-14H-JC, MDC-14S, MDC-14H-JC, MSA-R20, MDC-R20, MAA-R20, MSA-BT2

Includes belt and tension assembly with hardware. Tension tool sold separately.
Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Accessories

Item # 399-25, Tensioning Tool – 12mm & 25mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
