Linear Robotics Application Photos

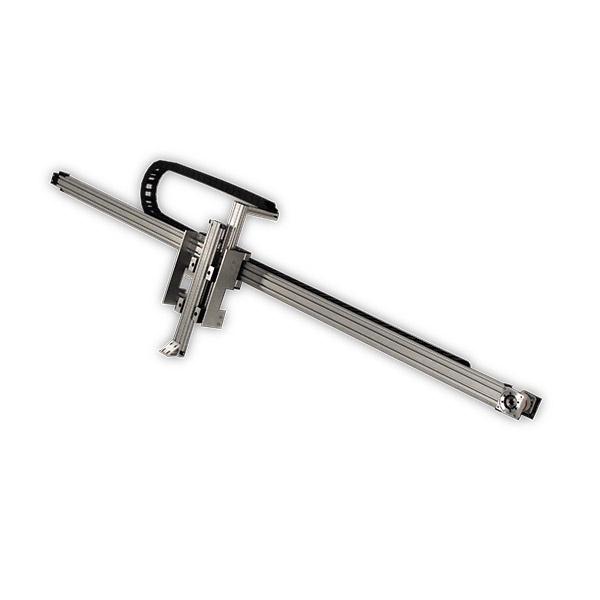

MacBUILT gantry for long distance shuttle pick and place packaging application - constructed of a MSA-14S X-axis and extended Z axis

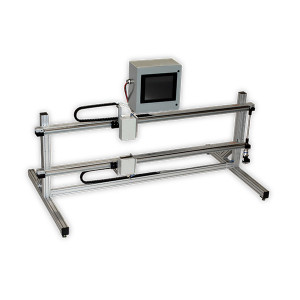

MacBUILT precision laser measurement gantry constructed of MSA-R2o actuators - dual X parallel system.
MacBuilt Dual X/Y StackPole System

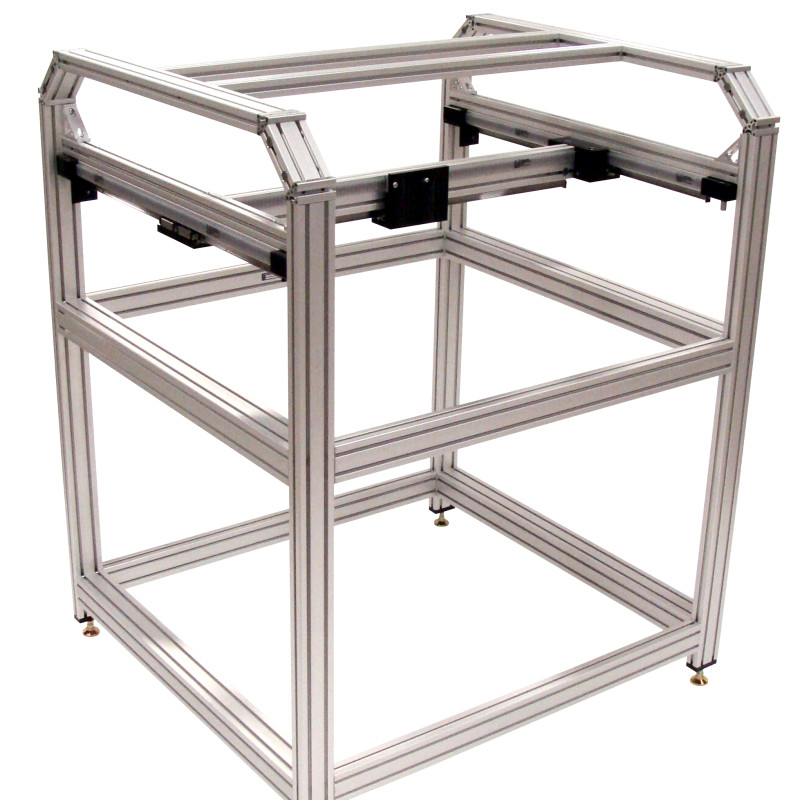

H-Bot linear robot mounted to MacFRAME
Dual X, dual inverted Y, dual Z MSA-14 Gantry system
MSA-20S dual X, single Y with MSA-SRT Z axis integrated MacFRAME structure
MSA-14S dual X, dual Y, single Z axis with theta (rotary) head and integrated MacFRAME structure
MSA-PSC dual X, single rotated Y axis with MPG gearboxes and T-slot Sensor kits

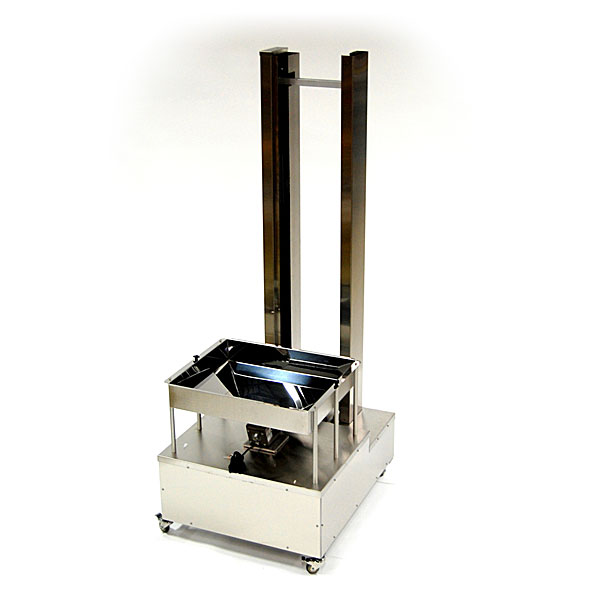

Integrated assembly consisting of MSA-135 dual Z actuators with MacFRAME sub-structure & custom fabricated stainless steel skin panels
MSA-135 dual Z actuators, MSA-14S X axis with extra long cart and MacFRAME base structure

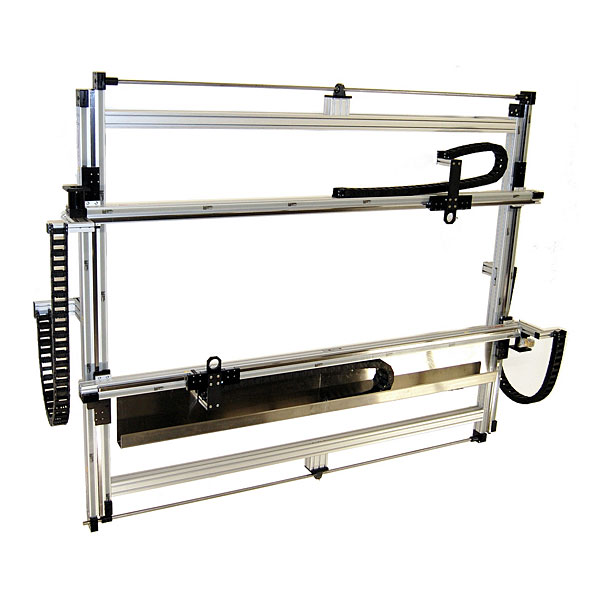

Dual independent Z axis MSA-R20 rail actuators, 2 independent MSA-R20 X axis actuators with integrated cable management

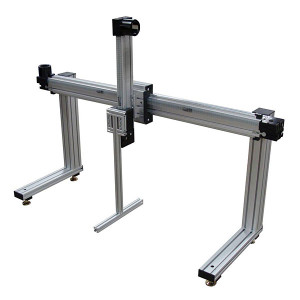

MSA-14S X axis & MSA-M6S Z axis with MacFRAME legs & end effector mounting

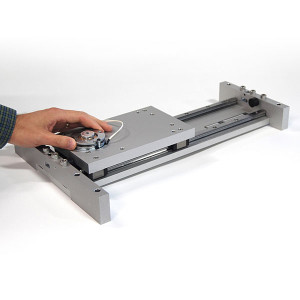

Dual rail slide table with controlled release braking system

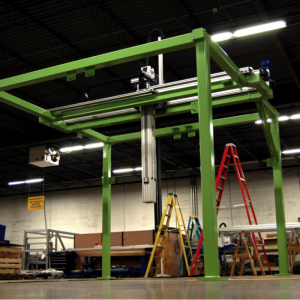

Large scale UC-4 pick and place linear robot used to transport automotive engine components

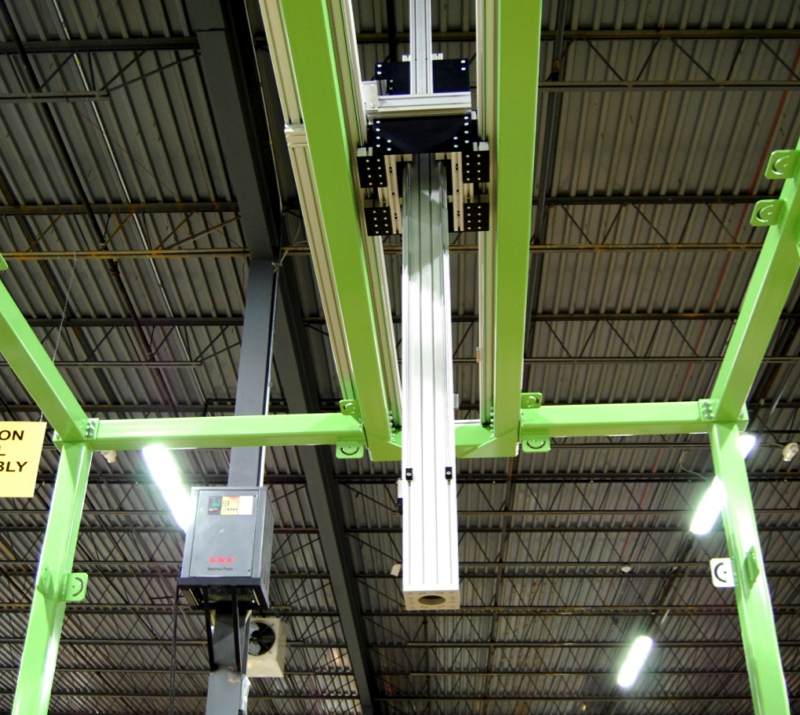

Close-up shot of a heavy duty UC-4 pick and place X/D gantry used for transporting automotive components
MSA-14S dual X axis, MSA-14S dual Y axis & Telescoping Z axis with MacFRAME structural frame

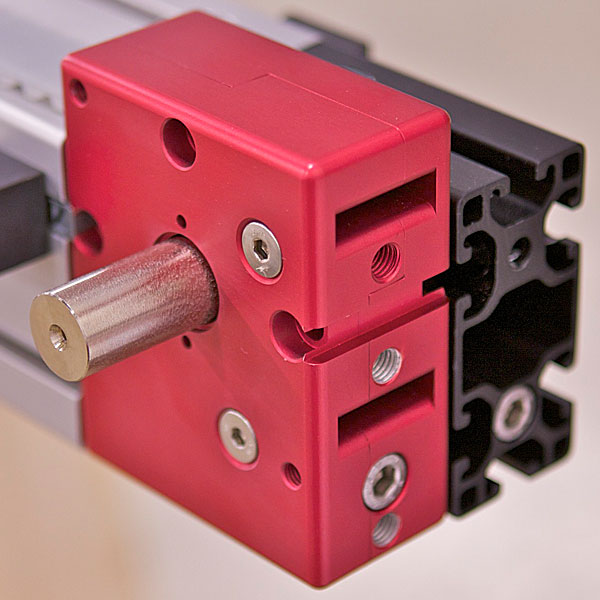

High temperature pulley assembly

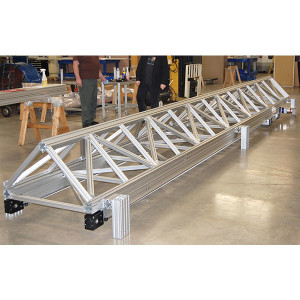

MacFRAME truss system with 2 independent MSA-14H actuators
Macron heavy duty Z axis cart system
MSA-M6S dual X rotated cart actuator, MacFRAME connection bridge, MSA-M6S single Z axis with MacFRAME tines
Dual MSA-14H X axis with rotated carts & Heavy duty Z axis

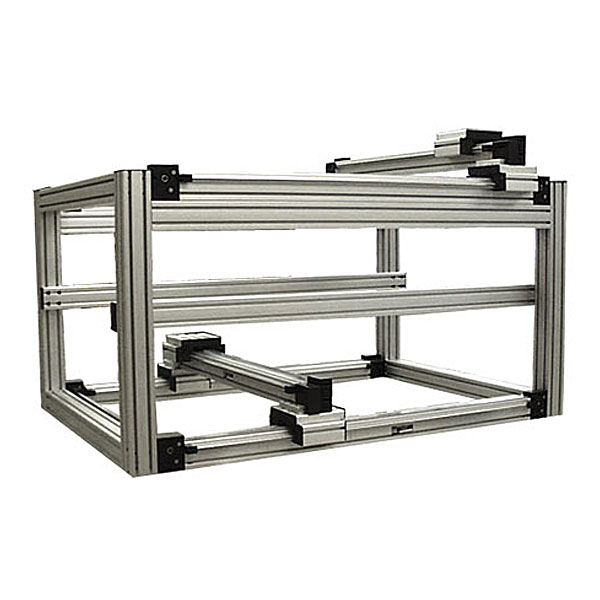

Multi-level MGS-14S dual X, Y gantry's with MacFRAME structure
Super Heavy duty dual X, dual Z Pick & Place gantry
