This video shows a large scale gantry robot pallet handling system. The gantry system is 18' x 20' and features X, Y, and Z gantries.

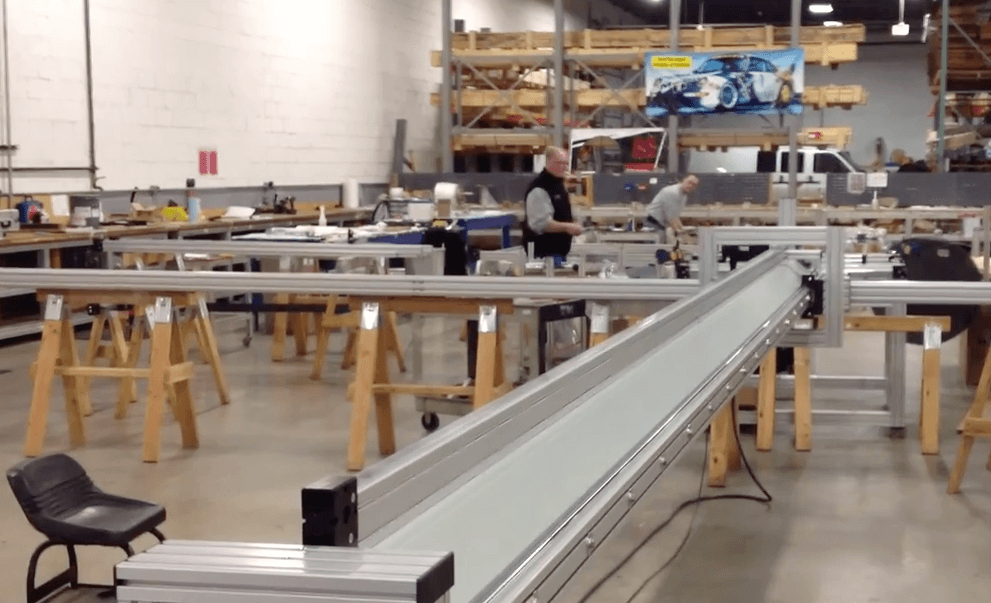

See different applications for Linear Robotics, including a Mac-in-a-Box, T-Bot, High-Speed H-Bot Gantry and more.
A low cost dispensing gantry with stepper motors was constructed from four Macron PSC belt drive actuators and an affordable screw actuator.

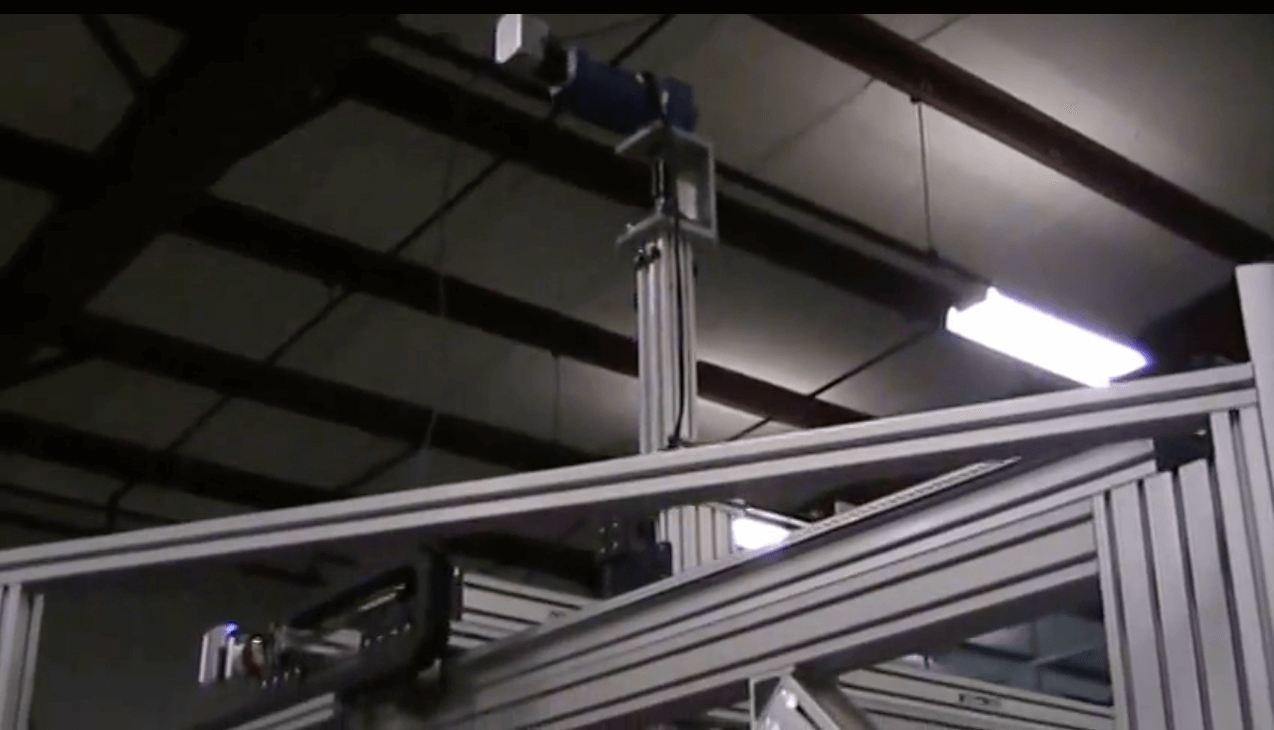

Macron makes a rotary head for the 14H Gantry which uses an enclosed drive shaft from a top mounted motor and gearbox.
In 1999 Macron delivered its first large scale sorting gantry, capable of distributing totes to 1,700 individual compartments!
Macron multi-axis robotic automation systems are used in a high speed, DVD packaging fulfillment order application.
Macron Dynamics provided a client a telescopic Z-axis on their packaging XYZ gantry to meet spacial constraints.
This video features an automated overhead camera tracking system using a Macron XYZ Cartesian robot gantry system comprised of MacBUILT 14 linear actuators in dual X, single Y, and Z axis configurations. The MacBUILT 14 model is a linear actuator suitable for heavy loads and high speed motion of up to 400 inches/sec.
