See different applications for Linear Robotics, including a Mac-in-a-Box, T-Bot, High-Speed H-Bot Gantry and more.
H-Bot gantries from Macron Dynamics feature a lightweight and modular design, allowing systems to reach areas in large envelopes at a high speed and with high repeatability.

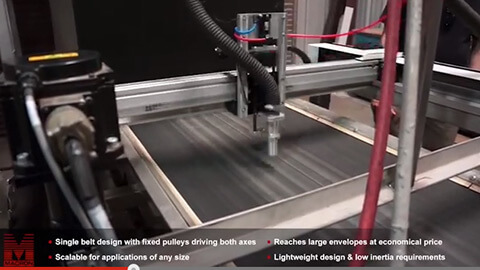

Our high speed, high performance X/Y H-Bot linear robot is constructed of a simple design, a single belt driving both axes.
Macron multi-axis robotic automation systems are used in a high speed, DVD packaging fulfillment order application.
A high speed Macron multi-axis robot provides automation in a package labeling application.
This high speed Macron 14 moves at a speed of 40 feet per second and demonstrates the incredible speeds that can be achieved with Macron belt driven linear actuators.
A large dairy products packaging company required rapid vertical axis travel in their case packaging and bottling lines automation. Product was being moved over long spans between multi-level conveyor systems. Case packaging operations required a fast pace and long Z axis stroke to move product. End effectors are often large and heavy which can introduce a pendulum effect. Macron application engineers suggested using a MacBUILT Dual X / Dual Z configuration consisting of MSA-14 heavy duty actuators.
This video demonstrates a product transfer "pusher" unit that is used to move sacks of product from one stage to a conveyor transfer system. The system features two MacBUILT heavy duty rail actuators mounted in a dual arrangement with connecting shaft which provide X axis motion. A MacBUILT "Z axis" rail actuator with a 50mm-wide belt provides vertical motion and mounting for a pusher blade.
This is actual running footage from a large format X-Z gantry that Macron built for a government contractor. The details are classified, but it's used in some sort of a missile defense calibration tester.
