T-Slot Sensor Kits

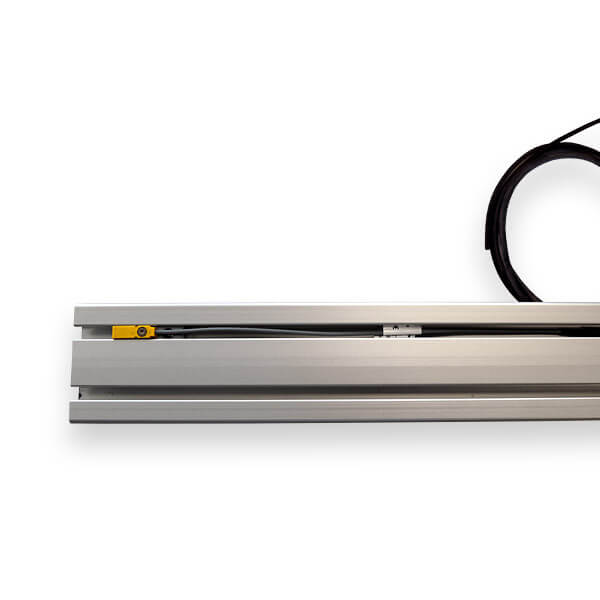

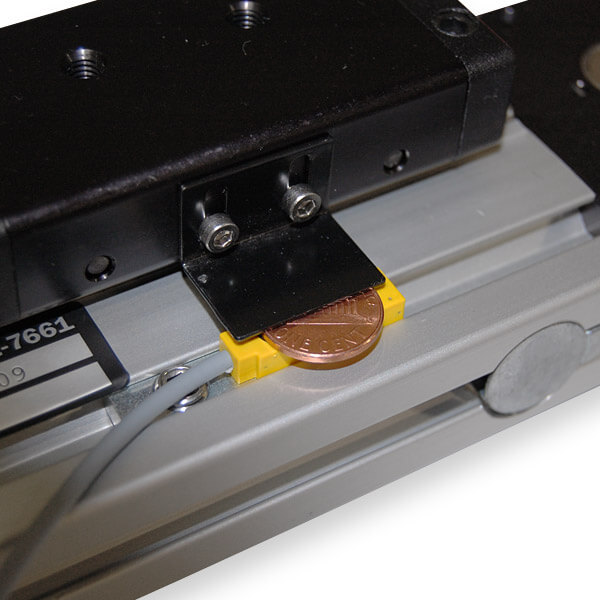

Macron T-Slot Sensor Kits install easily in all Macron actuators, belt drives, screw actuators, and MacFRAME aluminum beams. Using T-nut capture and adjustability our inductive proximity sensors fit perfectly into the actuator beam T-slot and provide a low profile mounting. The cables can be routed through the T-slot producing a clean system.

T-slot sensors are 24VDC and available in PNP and NPN output transistor logic with NO (normally open) or NC (normally closed) configuration. Sensors and mating cordsets meet NEMA 1, 3, 4, 6P and IEC IP67 ratings. Macron T-slot Sensors can provide users with limit, position or output signaling back to a control system.

Each T-Slot Sensor Kit Includes:

  • Sensor
  • Cord Set
  • T-Nut w/Set Screws (Long and Short)
  • Mounting Screw (M3x10 FHCS)
  • Tech Data Sheet and Installation Guide
  • Cord-Set Extension (if specified)

Datasheets

Specifications

Sensor Type Inductive
Cord Length 2 Meters
Switching Configuration NC or NO
Transistor Logic NPN or PNP Sensor
Sensor Size Fits all 8mm wide T-Slots
Operating Voltage 10–30 VDC Voltage
Voltage Drop Across Conducting Sensor =1.8 V at 100 mA
Number Of Conductors (AWG) 3×26 AWG
Temperature Range -40°C to 105°C
Contact Carrier Material / Color Nylon or PUR / Black
Contact Material / Plating Brass / Gold
Outer Cable Jacket Material / Color PVC / Grey
Conductor Insulation Material PVC
Coupling Nut Material / Plating Brass / Nickel

Configure a T-Slot Sensor Kits

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Transistor Logic

Switching Configuration

Cord Extension Length

Part Number As Configured

244-x-x-x
