VERSATILE. SCALABLE. SIMPLE.

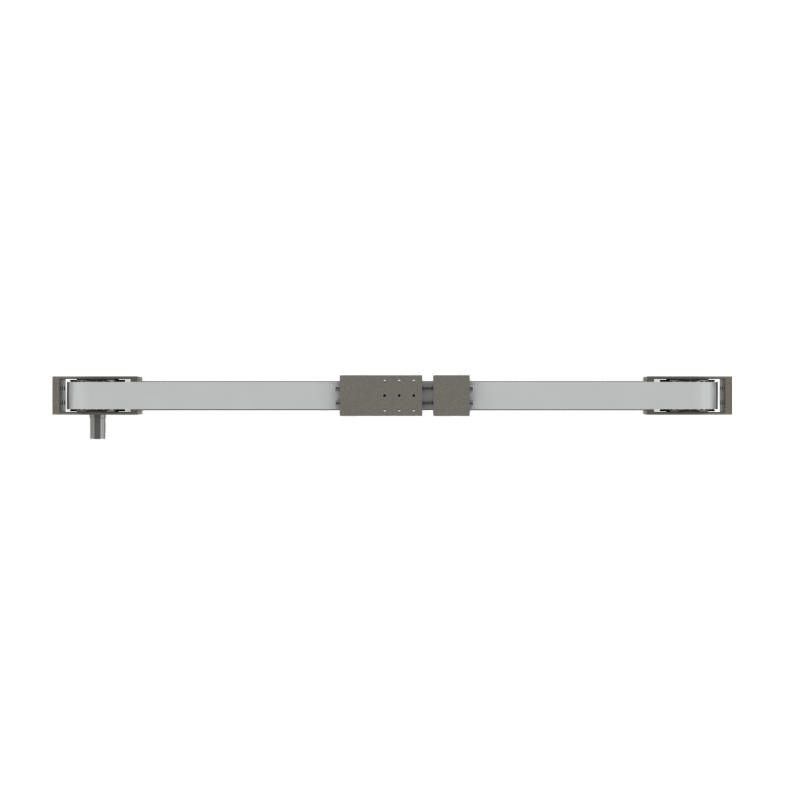

The MSA-SB7 Belt Drive is a compact linear actuator designed for precision motion control in light-duty industrial automation and gantry systems. It features an extruded aluminum body with T-slots for flexible mounting and a zero-backlash belt-to-pulley system for smooth, accurate positioning. The MSA-SB7 supports user-defined stroke lengths up to 5,610 mm, speeds up to 3,810 mm/s, and repeatability of ±0.05 mm. Corrosion-resistant components and optional washdown-duty or water-resistant configurations ensure reliable performance in demanding environments.
Each belt drive can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. For travel requirements over standard values, contact Macron Dynamics for assistance.
These are standard specifications, if you need a custom configuration, please use our custom configuration request form.
| Motion | Horizontal, Vertical |
| Max Speed - Horizontal[Vertical] - mm/sec | 15240[7620] |
| Max Force - Horizontal[Vertical] - lbf | 6000[3000] |
| Repeatability - mm | +/- 0.025 |
| Moment Load - in-lbs[Nm] | N/A |
| Positional Accuracy - mm/meter | +/- 0.4 |
| Acceleration Max - Gs | 20 |
| Recommended Belt Running Load - lbf[N] | 6000[26700] |
| Cart Guide | None |
| System Weight - kg | (Travel in meters x 10.4) + 39.9 |
| Weight of Cart - lbs[kgs] | n/a |
| Weight of Belt - kgs based on travel selected | ((Travel in meters x 2)+ 1.71) x .81 |
| Travel per Revolution - mm | 480 |
| Pulley Pitch Diameter - mm | 152.79 |
| Pulley Material / Width - mm | Steel / 75 |
| Breakaway Torque - oz-in | 42 to 44 |
| Coefficient of Friction | 0.1 |
| Standard Travels - min to max | 150 to 5725 |
