MGS-HBG-12

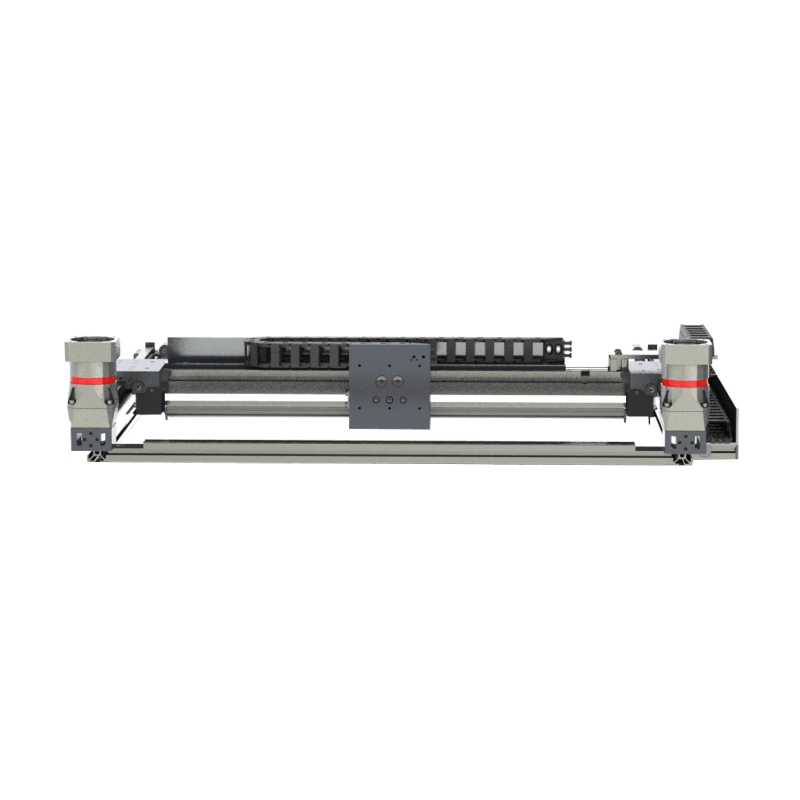

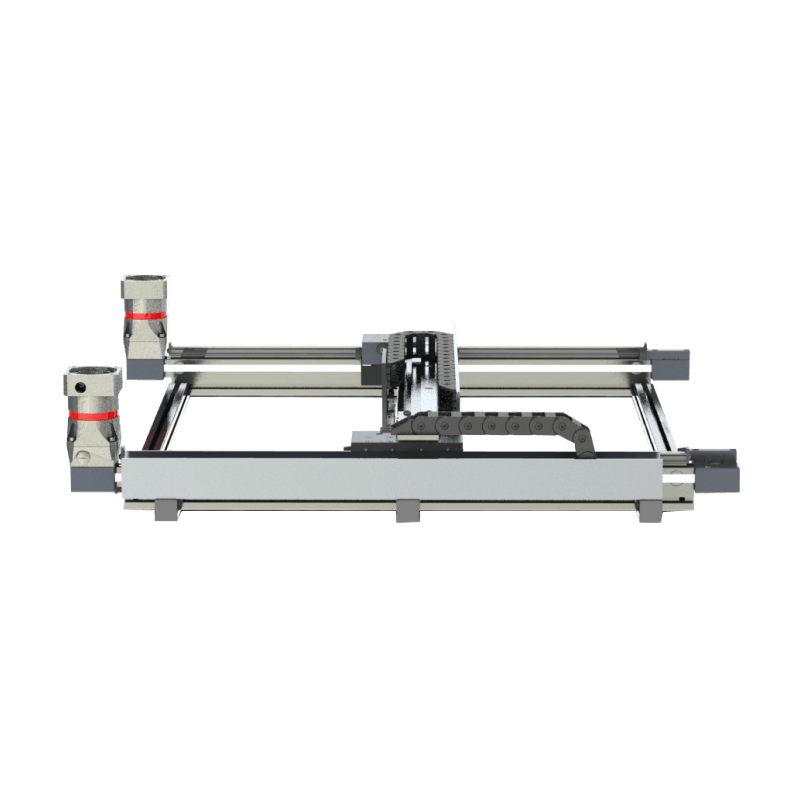

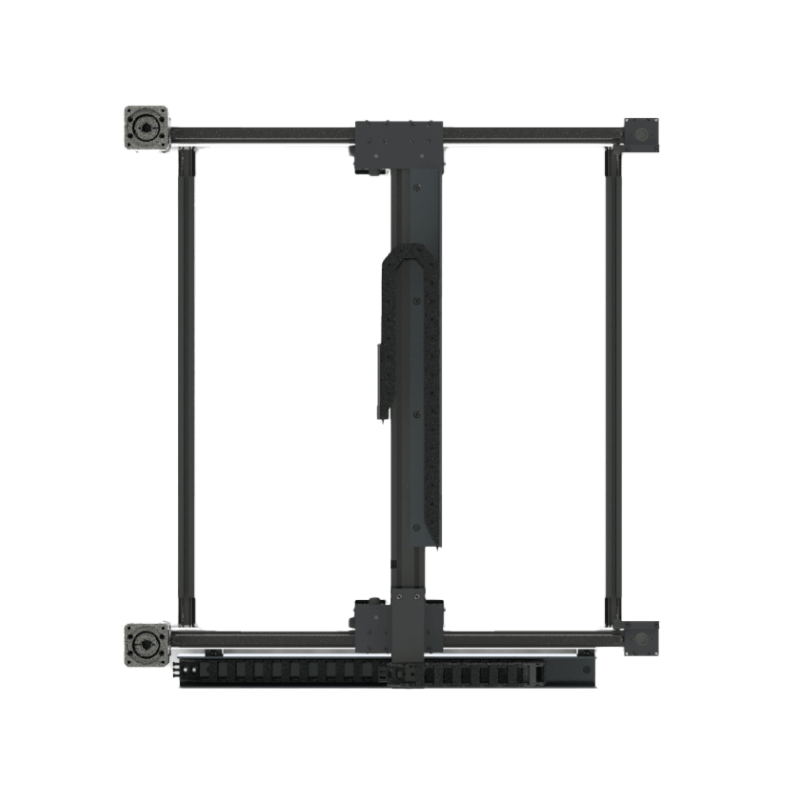

The H-Bot Linear Robot is a compact gantry system designed for precision motion in industrial automation environments. Its configuration allows for synchronized movement along two axes using a single belt system, reducing weight and complexity while maintaining accuracy. The modular design supports optional T-slot sensors, gearboxes, and motor mounting adaptors for flexible integration. Built with durable aluminum and steel components, the H-Bot delivers consistent performance, minimal maintenance, and reliable operation across long travel lengths.

  • H-Bot configuration. (X/Y)
  • High speed, high performance 2 axis Linear robot.
  • Simple design: One single belt drives both axes.
  • Two fixed motor mounting locations.
  • Fixed motors reduce load, cable management and inertia requirements.
  • Sealed linear profile rail and bearing guidance.
  • Low profile.
  • Mounting flexibility in either horizontal or vertical orientation.

Product Notes

The H-Bot Linear Robot is a compact gantry system designed for precision motion in industrial automation environments. Its configuration allows for synchronized movement along two axes using a single belt system, reducing weight and complexity while maintaining accuracy. The modular design supports optional T-slot sensors, gearboxes, and motor mounting adaptors for flexible integration. Built with durable aluminum and steel components, the H-Bot delivers consistent performance, minimal maintenance, and reliable operation across long travel lengths.

Specifications

These are standard specifications, if you need a custom configuration, please use our custom configuration request form.

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 5000[5000]
Max Load - Horizontal[Vertical] - lbs 10[10]
Repeatability - mm +/- 0.039
Moment Load - in-lbs[Nm] 310[35]
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 5
Recommended Belt Running Load - lbf[N] 200[889]
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg See Data Sheet
Motor Sizing Information
Weight of Cart - lbs[kgs] See Data Sheet
Weight of Belt - kgs based on travel selected See Data Sheet
Travel per Revolution - mm See Data Sheet
Pulley Pitch Diameter - mm See Data Sheet
Pulley Material / Width - mm See Data Sheet
Breakaway Torque - oz-in 12 to 14
Coefficient of Friction 0.2
Travels (25mm increment)
X Axis Travel - min to max 150 to 2000
Y Axis Travel - min to max 150 to 1000

Configure a Standard Model MGS-HBG-12

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MGS-HBG-12-x-y-z

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None
