VERSATILE. SCALABLE. SIMPLE.

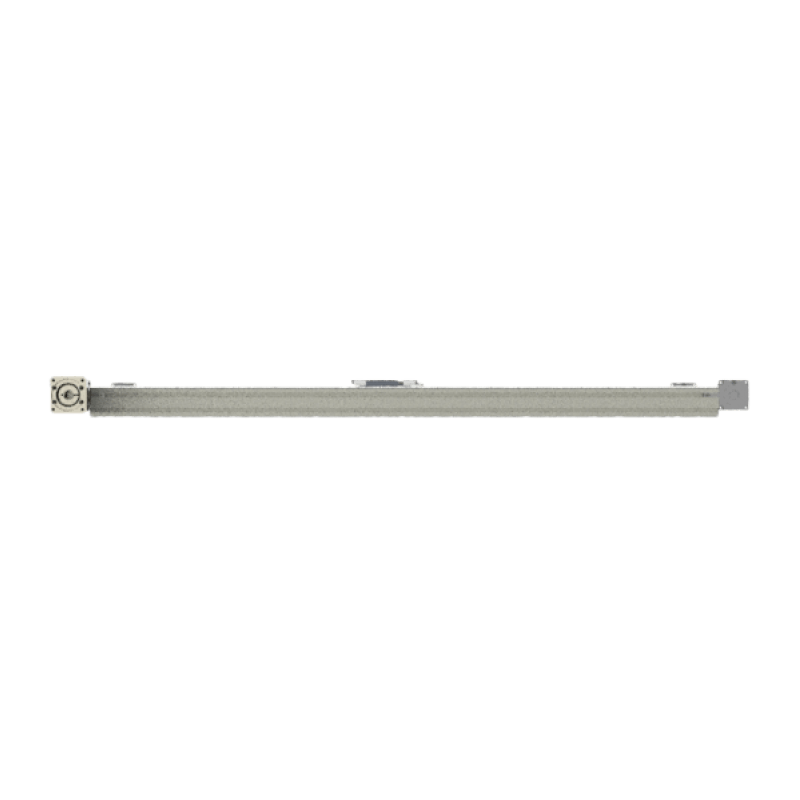

The MDS-SB1 is a dual X-axis cartesian gantry robot designed for synchronized linear motion in industrial automation environments. It features a belt-driven configuration with independent actuator carriages, enabling precise multi-point positioning along a shared axis. The modular design allows for flexible motor and gearbox mounting, making it suitable for integration into complex multi-axis systems. Constructed with durable aluminum and steel components, the MDS-SB1 delivers stable performance, low maintenance, and long-term reliability in high-speed applications.
Center-to-center spacing is the distance between each actuator cart’s center line. Each X-X’ system can be supplied with T-slot sensors, gearboxes, or motor mounting adaptors upon request. Some X-X’ systems include cable track; please refer to the Product Specification download document for the standard size. Motor sizing information is provided in the Product Specification download document. For travel requirements over standard values, contact Macron Dynamics for assistance.
These are standard specifications, if you need a custom configuration, please use our custom configuration request form.
| Motion | Horizontal, Vertical |
| Max Speed - Horizontal[Vertical] - mm/sec | 3000[3000] |
| Max Force - Horizontal[Vertical] - lbf | 100[100] |
| Repeatability - mm | +/- 0.0625 |
| Moment Load - in-lbs[Nm] | N/A |
| Positional Accuracy - mm/meter | +/- 0.4 |
| Acceleration Max - Gs | 5 |
| Recommended Belt Running Load - lbf[N] | 200[889] |
| Cart Guide | N/A |
| System Weight - kg | ((Travel in meters x 1.5) + 1.3) x 2 |
| Weight of Cart - lbs[kgs] | N/A |
| Weight of Belt - kgs based on travel selected | (((Travel in meters x 2) + .51) x .04) x 2 |
| Travel per Revolution - mm | 105 |
| Pulley Pitch Diameter - mm | 33.42 |
| Pulley Material / Width - mm | Steel / 16.3 |
| Breakaway Torque - oz-in | N/A |
| Coefficient of Friction | 0.1 |
| Rolling Resistance - lbs / kgs | N/A |
| X Axis Travel - min to max | 150 to 5775 |
Enter your configuration options to submit a Request for a Quote:
Macron Dynamics specializes in designing and building virtually any configuration to meet your unique automation needs. Our innovative solutions enhance efficiency, optimize workspace utilization, and prioritize worker safety—reducing injuries while maximizing productivity.
We offer custom solutions for applications requiring from one to thousands of units. And units physically much smaller and larger than our standard models.
