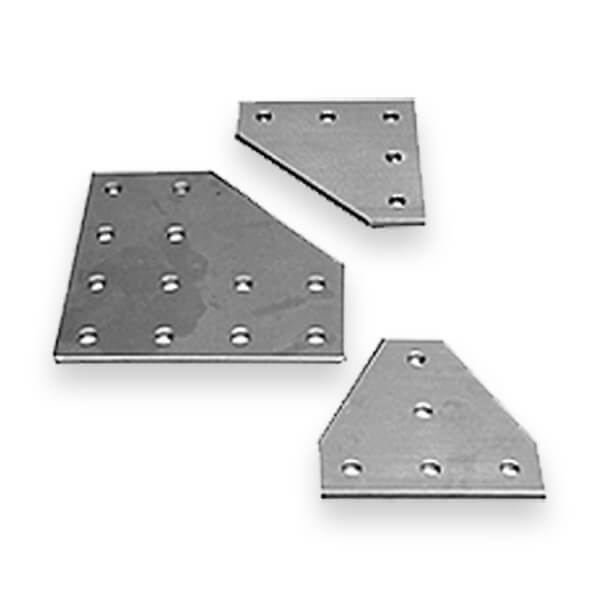

Connecting Plate

Models

Size (mm) 40
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole

Size (mm) 40
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole

Size (mm) 80
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole

Size (mm) 80
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole

Size (mm) 80
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole

Size (mm) 40
Material 6061-T6 Aluminum, .25 thick
Finish Clear Anodized
Fastening Hardware Required One M20058 T-Nut and one M8x16 BHCS for each hole
