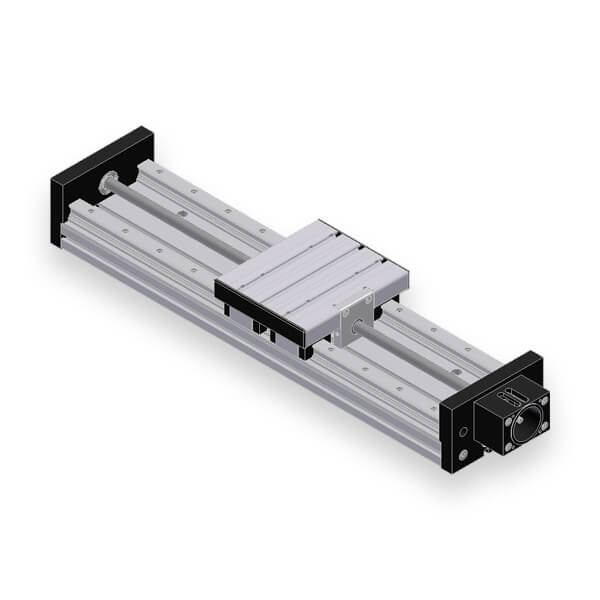

MSA-DRT Actuator

Features:

  • Rolled Ball Screw Actuator. C7 Class.
  • Precision Ground Screw available upon request.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Multiple Leads available.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Wrap Around Input System available upon request.
  • Bellows Protection Available.

Notes:

  • Each Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 250, 500, 1000[5, 10, 20]
Max Load - Horizontal[Vertical] - lbs 250[250]
Repeatability - mm C7
Moment Load - in-lbs[Nm] 2124[240]
Positional Accuracy - mm/meter C7
Acceleration Max - Gs 1
Recommended Belt Running Load - lbf[N] n/a
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg (Travel In Meters x 18) + 8.3
Motor Sizing Information
Weight of Cart - lbs[kgs] 7.3[3.3]
Weight of Belt - kgs based on travel selected n/a
Travel per Revolution - mm 5 (05), 10 (10), 20 (20)
Pulley Pitch Diameter - mm n/a
Pulley Material / Width - mm n/a
Breakaway Torque - oz-in n/a
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 1800

Configurate a MSA-DRT Actuator

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Screw Pitch (mm)

Travels (in 25mm increments)

Please Give Me Options For:

Part Number As Configured

MSA-DRT-N-x-A01-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None
