Replacement Parts
Product: MSA-14S
Models
Pulley Assembly Kit | PAS – BCS / PAI – BCS
Fits actuators: MSA-SB2, MSA-M6S, MDC-M6S, MSA-R6S, MSA-R6D, MSA-135, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L
- Includes pulley, bearings, housing and mounting hardware fully assembled
- Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive
Drive Belt Kit | DBK – CA – XX
Fits actuators: MSA-SB2, MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, MSA-14H-JC, MDC-14S, MDC-14H-JC, MSA-R20, MDC-R20
- Includes belt and tension assembly with hardware. Tension tool sold separately.
- Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.
Fits actuators: MSA-14S, MDC-14S, MDS-14S
- Includes complete cart assembly with mounting hardware. Special adjustment tools if required, sold separately

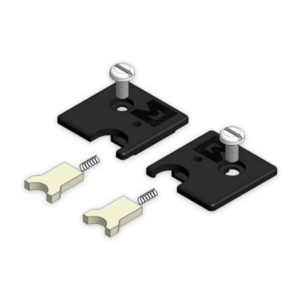

Wiper Replacement Kit | WRK – 14S
Fits actuators: MSA-14S, MSA-14N, MSA-14D, MSA-14X, MSA-14L, MDC-14S
- Includes felt wiper, springs, end cap and mounting hardware to retrofit one cart assembly.
- Lubricating guide rails is critical to the life of an actuator. Replacing on a regular PM cycle is recommended.
