More Views

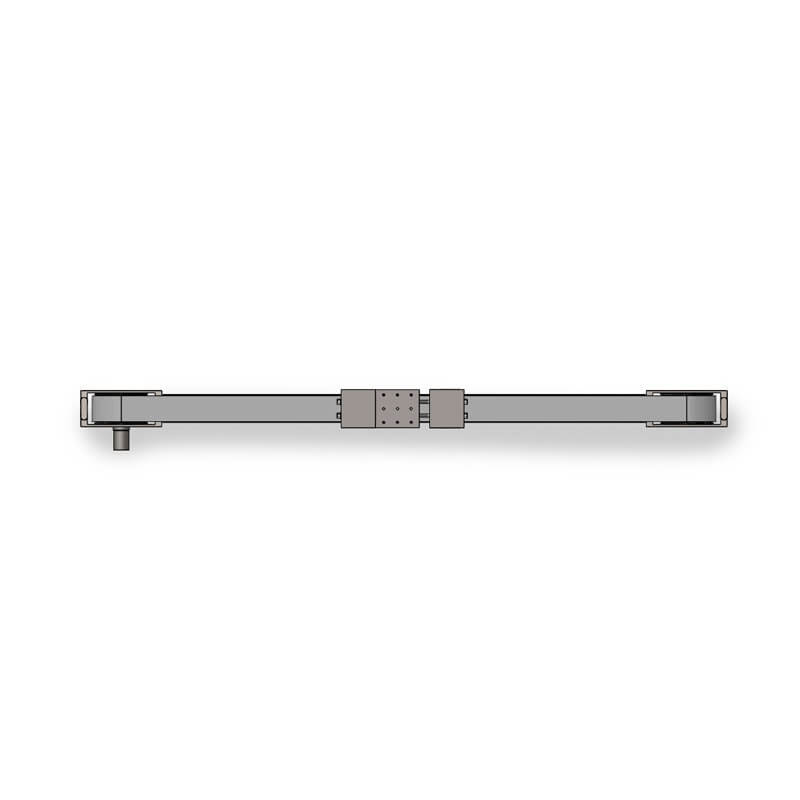

MSA-SB7 Options

Enter your configuration options below to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Drive Shaft Locations

TRAVELS (Min 150 mm - Max 5500 mm in 25 mm increments)

Please Give Me Options for:
(Please select a Gearbox or Motor Mount, not both)

  • Gearboxes
  • Sensors
  • Motor Mounting
Part Number As Configured

MSA-SB7-0-00-x0x-x

*Select your configuration options to submit a request.

Please Confirm Your Contact Information:

Notes:

Motor and model part number are required for final order process.

Features

  • Extruded aluminum actuator body with T-slots for ease of mounting
  • Easy to adjust belt tensioner
  • One piece, machined and stress proof shafted pulley
  • Zero backlash belt to pulley design
  • Corrosion resistant components
  • Longer travel lengths are available on special request

Specifications

Specifications
Motion Horizontal or Vertical
Max Speed – horizontal [vertical] – mm/sec 15240 [7620]
Max Force – horizontal [vertical] – lbf 6000 [3000]
Repeatability – mm +/- 0.025
Moment Load max – lbs. at mm off centerline NONE
Positional Accuracy – mm/meter +/- 0.4
Acceleration max – G’s 20
Beam Dimensions – mm 80 x 120
Ultimate tensile strength of belt – lbs. [N] 30000 [6744]
Recommended belt running load – lbs. [N] – horizontal 6000 [26700]
Cart Guide None
Motor Sizing Information
Weight of Drive Pulley – oz. / kgs. 284 / 8.05
Weight of Idler Pulley – oz. / kgs. 249 / 7.07
Weight of Belt – kgs. based on travel selected ((Travel in meters x 2)+ 1.71) x .81
Travel per Revolution – mm 480
Pulley Pitch Diameter – mm 152.79
Pulley Material / Width – mm Steel / 75
Weight
System Weight (kg) (Travel in meters x 10.4) + 39.9
Travels
Standard Travels- min / max – mm (25 mm increment) 150 / 5500*

*Butt-joint needed over 5582 travel
