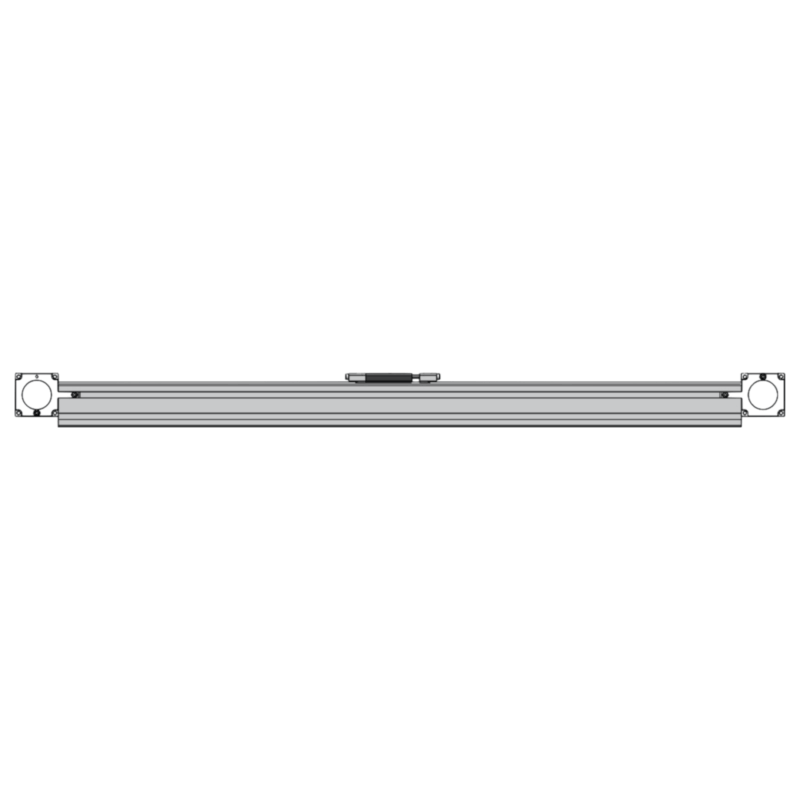

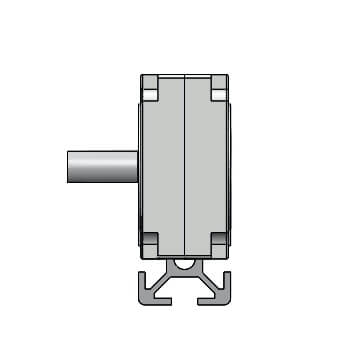

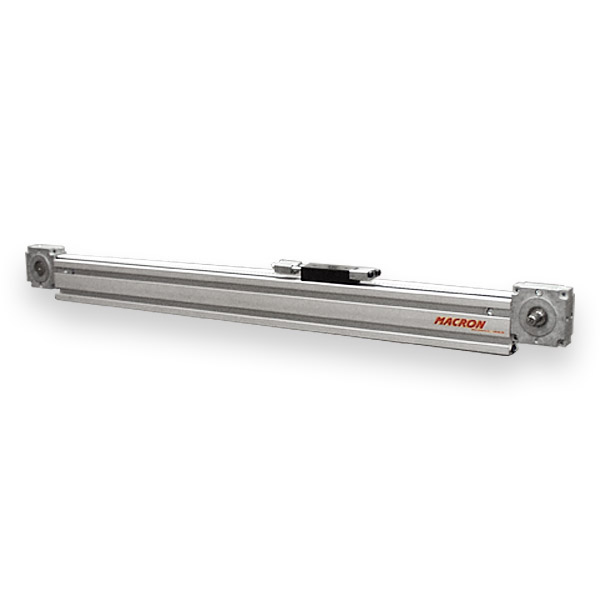

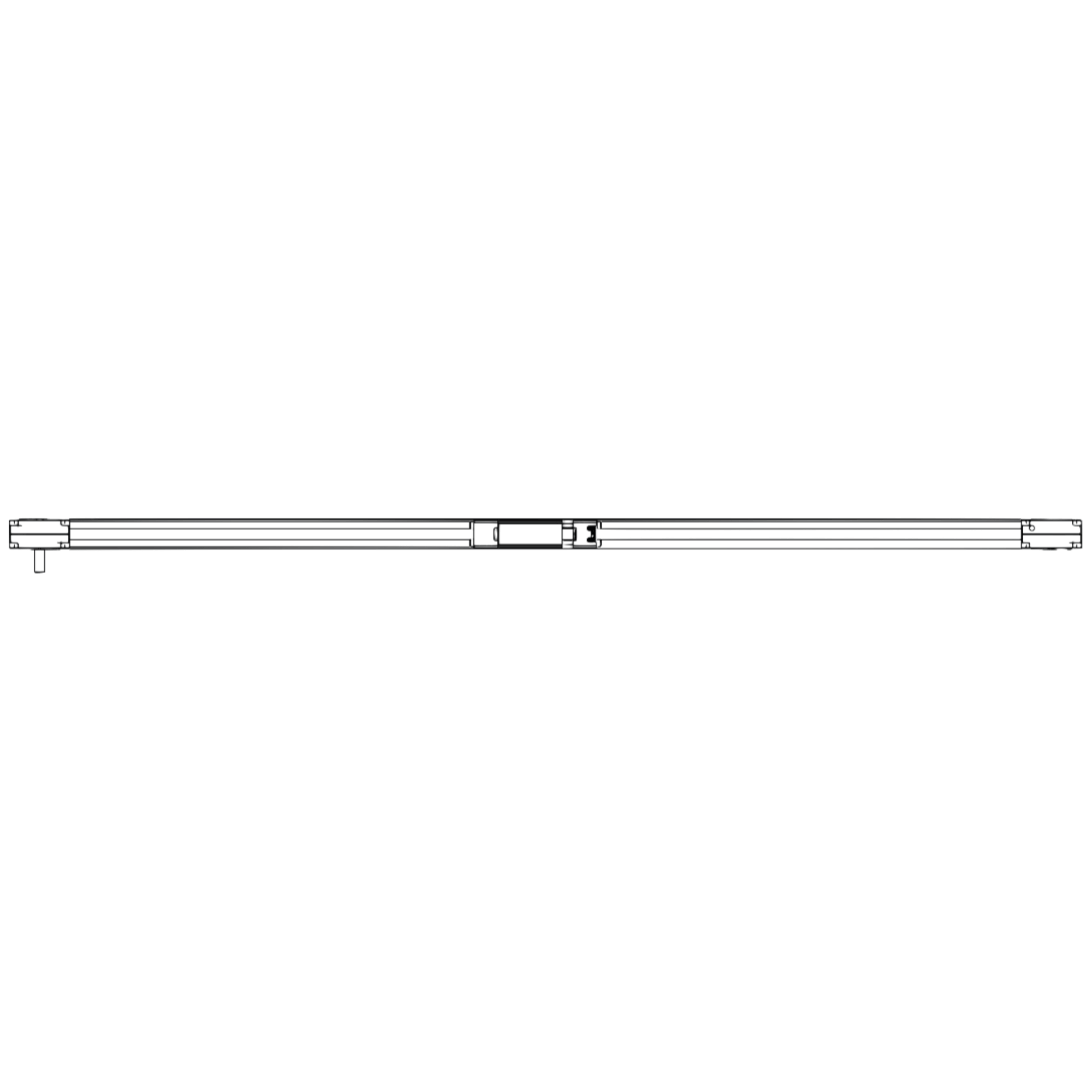

MSA-SB1 Belt Drive
MSA-SB1 Options
Enter your configuration options below to submit a Request for a Quote or a CAD drawing:
TRAVELS (Min 150 mm - Max 5825 mm in 25 mm increments)
- Gearboxes
- Sensors
- Motor Mounting
Part Number As Configured
MSA-SB1-B-GB-x0x-x
*Select your configuration options to submit a request.
Please Confirm Your Contact Information:
Notes:
Motor and model part number are required for final order process.
Features
- Extruded aluminum actuator body with T-slots for ease of mounting
- Easy to adjust belt tensioner
- One piece, machined and stress proof shafted pulley
- Zero backlash belt to pulley design
- Corrosion resistant components
- Longer travel lengths are available on special request
Specifications
| Specifications | |
| Motion | Horizontal or Vertical |
| Max Speed – horizontal [vertical] – mm/sec | 5050 [2525] |
| Max Force – horizontal [vertical] – lbf | 100 [50] |
| Repeatability – mm | +/- 0.025 |
| Moment Load max – lbs. at mm off centerline | NONE |
| Positional Accuracy – mm/meter | +/- 0.4 |
| Acceleration max – G’s | 5 |
| Beam Dimensions – mm | 28 x 56 |
| Ultimate tensile strength of belt – lbs. [N] | 800 [3559] |
| Recommended belt running load – lbs. [N] | 200 [889] |
| Cart Guide | None |
| Motor Sizing Information | |
| Weight of Drive Pulley – oz. / kgs. | 4.7 / 0.13 |
| Weight of Idler Pulley – oz. / kgs. | 4.3 / 0.12 |
| Weight of Belt – kgs. based on travel selected | ((Travel in meters x 2) + .51) x .04 |
| Travel per Revolution – mm | 105 |
| Pulley Pitch Diameter – mm | 33.42 |
| Pulley Material / Width – mm | steel / 16.3 |
| Weight | |
| System Weight (kg) | (Travel in meters x 1.5) + 1.3 |
| Travels | |
| Standard Travels- min / max – mm (25 mm increment) | 150 / 5825 |
