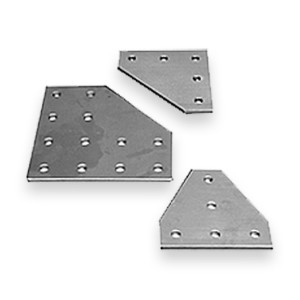

Connecting Plate
Models
Item # M20116, Corner Connecting Plate 40, Seven Hole
| Size (mm) | 40 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
Item # M20115, Corner Connecting Plate 40, Four Hole
| Size (mm) | 40 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
Item # M20114, T-Connecting Plate 80
| Size (mm) | 80 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
Item # M20113, Corner Connecting Plate 80
| Size (mm) | 80 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
Item # M20112, Connecting Plate 80, Double
| Size (mm) | 80 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
Item # M20111, Connecting Plate 40, Double
| Size (mm) | 40 |
| Material | 6061-T6 Aluminum, .25 thick |
| Finish | Clear Anodized |
| Fastening Hardware Required | One M20058 T-Nut and one M8x16 BHCS for each hole |
