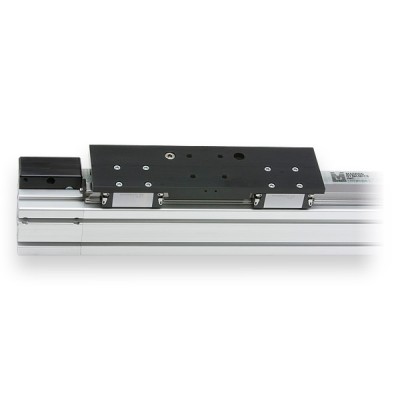

MSA-R20 Options
Please select from the following:
Please Give Me Options for:
- Controls
- Motor
- Gearbox
Part Number As Configured
MSA-R20-G-BC-xx-x
Features
- Extruded aluminum actuator body with T-slots for ease of mounting
- Easy to adjust belt tensioner
- One piece, machined and stress proof shafted pulley
- Zero backlash belt to pulley design
- Corrosion resistant components
Specifications
| Specifications | |
| Motion | Horizontal or Vertical |
| Maximum Speed | 10160 mm/sec |
| Maximum Load | 400 lbs. |
| Repeatability | +/- 0.025 mm |
| Moment Load | 460 in.-lbs. (52 Nm) |
| Acceleration Exceeding | 20 G's |
| Beam Dimensions | 80 x 80 mm |
| Motor Sizing Information | |
| Weight of Drive Pulley | 11.3 oz. |
| Weight of Idler Pulley | 7.7 oz. |
| Weight of Cart | 4.0 lbs. |
| Weight of Belt | 0.45 lbs. (247 mm), 0.61 lbs. (497 mm), 0.76 lbs. (747 mm), 0.91 lbs. (997 mm), 1.06 lbs. (1247 mm), 1.21 lbs. (1497 mm), 1.37 lbs. (1747 mm) |
| Travel per Revolution | 150 mm |
| Pulley Pitch Diameter | 47.74 mm |
| Pulley Material / Width | steel / 25 mm |
| Breakaway Torque | 26-28 oz.-in |
| Coefficient of Friction | 0.05 mm |
| Weight | |
| First meter of travel | 40.5 lbs. |
| Additional per meter | 19.5 lbs. |
| Travels | |
| Standard Travels | 247 to 1747 mm |
