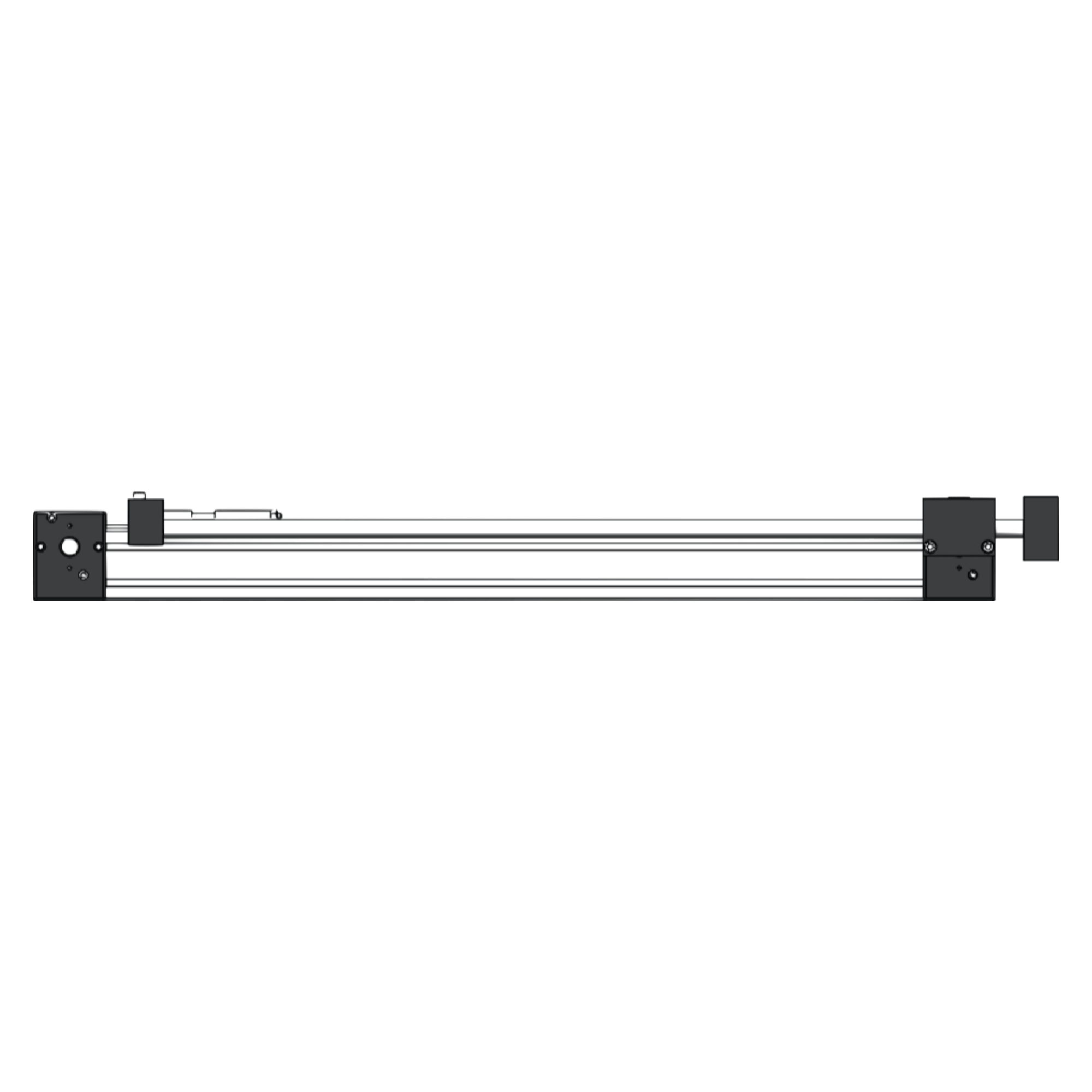

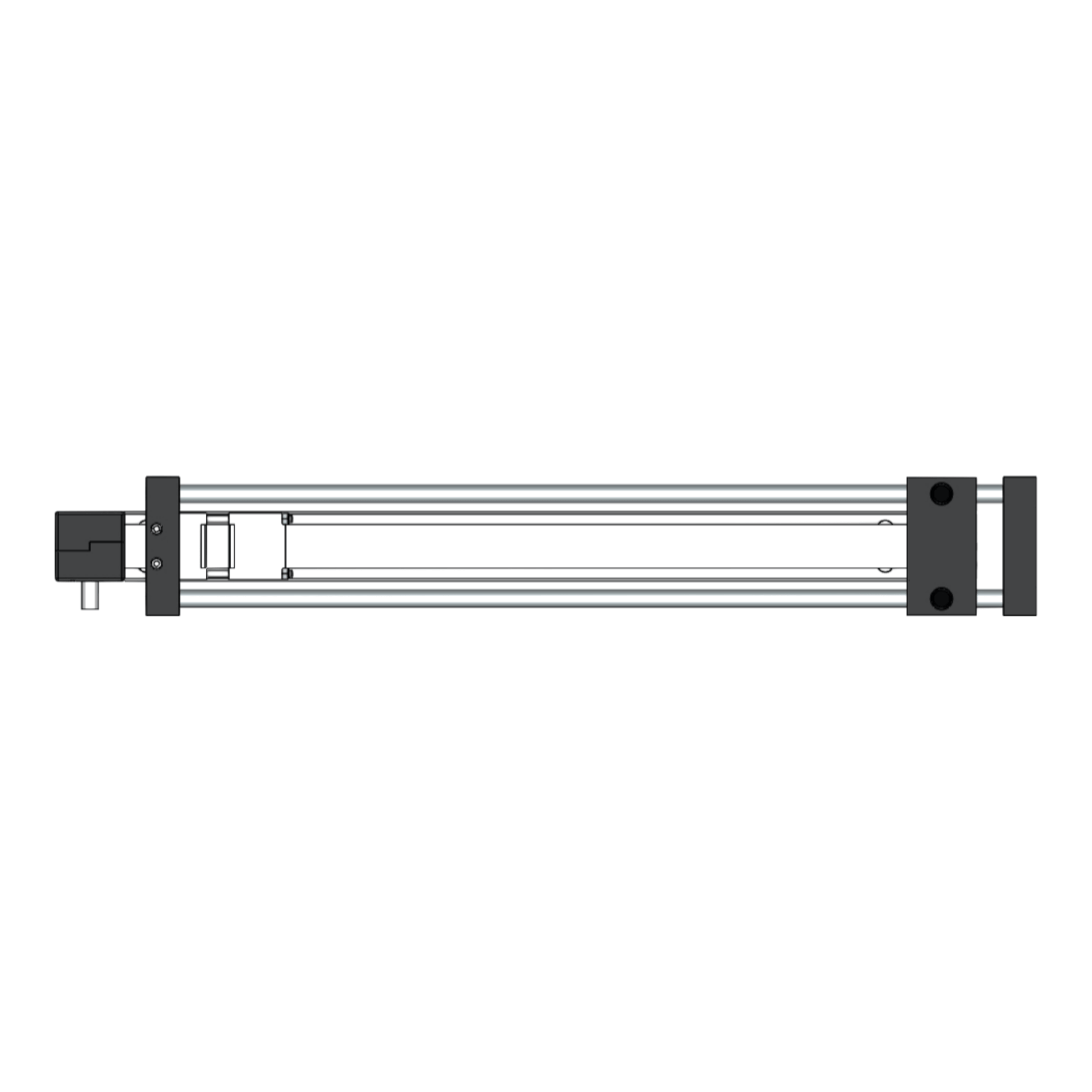

MSA-BT5 Actuator

Features:

  • “Pusher” Belt Actuator.
  • User defined Strokes.
  • Mounting flexibility in any orientation.
  • Designed for extremely High Speed applications.
  • Extruded aluminum actuator body with T-slots for ease of mounting.
  • Easy to adjust belt tensioner.
  • One piece machined and stress proof shafted pulley.
  • Zero backlash belt to pulley design.
  • Corrosion resistant components.
  • Washdown Duty or Water- Resistant Options upon request.

Notes:

  • Each Actuator can be supplied with the following items upon request, T-slot sensors, Gearboxes, or Motor mounting adaptors.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance.

Datasheets

Datasheet

Choosing the Proper Actuator

Maximizing Bearing Life

Specifications

Specifications
Motion Horizontal, Vertical
Max Speed - Horizontal[Vertical] - mm/sec 2000[2000]
Max Force - Horizontal[Vertical] - lbf 500[500]
Repeatability - mm +/- 0.025
Moment Load - in-lbs[Nm] N/A
Positional Accuracy - mm/meter +/- 0.4
Acceleration Max - Gs 5
Recommended Belt Running Load - lbf[N] 500
Cart Guide Linear bearing with profile rail
Weight
System Weight - kg (Travel in meters x 12.2) + 19.4
Motor Sizing Information
Weight of Cart - lbs[kgs] see data sheet
Weight of Belt - kgs based on travel selected ((Travel in meters x 2)+ .74) x . 34
Travel per Revolution - mm 150
Pulley Pitch Diameter - mm 47.75
Pulley Material / Width - mm steel / 54
Breakaway Torque - oz-in 30 to 32
Coefficient of Friction 0.1
Travels (25mm increment)
Standard Travels - min to max 150 to 5725

Configurate a MSA-BT5 Actuator

Enter your configuration options to submit a Request for a Quote or a CAD drawing:

Shaft Type

Drive Shaft Location

Thruster graphic

Travels (in 25mm increments)

Please Give Me Options For:

MPG-114 Inline Gearbox
MRG-114 Right Angle Gearbox
T-Slot Sensor Kits
Transistor Logic
Switching Configuration
Cord Extension Length

Part Number As Configured

MSA-BT5-G-BE-x0x-x

Gearbox: None
Motor Mount: None
T-Slot Sensor: None
Mounting Kit: None

User Guides

Gearbox Installation graphic
Gearbox Install

Download

User Guide Maintenance

Download

Videos

Single Axis Actuator Videos

Replacement Parts

GBK-BT5-XXXX
Guide Block Kit | GBK – BT5 – XX

Fits Actuator: MSA-BT5

  • Includes guide rails, Linear bearings , pusher plate and bearing housing.

Download Datasheet

PAI-BT5
Pulley Assembly Kit | PAI – BT5

Fits Actuator: MSA-BT5

  • Includes Pulley, Bearings , Housing and Hardware.

Download Datasheet

Pulley Assembly Kit | PAS – BES / PAI – BES

Fits actuators: MSA-SB5, MSA-BT5

  • Includes pulley, bearings, housing and mounting hardware fully assembled
  • Drive and idler pulley have unique part number. See datasheet for proper part number configuration and selection. PAI prefix indicates idler, PAS prefix indicates drive

Download Datasheet

Drive Belt Kit | DBK – EA – XX

Fits actuators: MSA-SB5, MSA-BT5

  • Includes belt and tension assembly with hardware. Tension tool sold separately.
  • Dash XX requires completion based on actuator size or special conditions. See datasheet for instructions.

Download Datasheet

Accessories

Item # 399-50, Tensioning Tool – 50mm Belts

Item # 397, Torque Wrench 25-250 lbs-in
