Item # M11160, 80x160H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 298.10 (7.162)
Iy – cm4 (in4) 1030.59 (24.760)
Wx – cm3 (in3) 74.53 (4.548)
Wy – cm3 (in3) 128.82 (7.861)
Profile Section – cm2 (in2) 40.48 (6.275)
Weight – kg/m (lbs/ft) 10.93 (7.35)

Request Quote

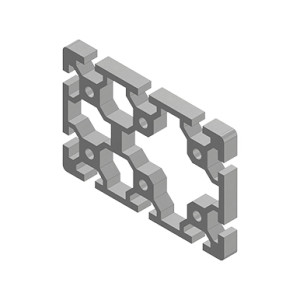

Item # M11122, 80x120H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 266.26 (6.397)
Iy – cm4 (in4) 454.15 (10.911)
Wx – cm3 (in3) 66.57 (4.062)
Wy – cm3 (in3) 75.69 (4.619)
Profile Section – cm2 (in2) 32.86 (5.093)
Weight – kg/m (lbs/ft) 8.87 (5.96)

Request Quote

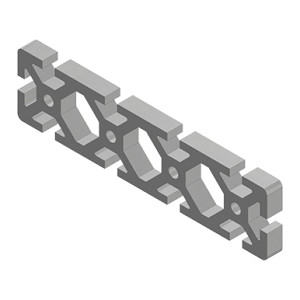

Item # M11140, 40x160H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 517.25 (12.414)
Iy – cm4 (in4) 33.13 (0.795)
Wx – cm3 (in3) 64.65 (3.944)
Wy – cm3 (in3) 16.56 (1.010)
Profile Section – cm2 (in2) 21.48 (3.329)
Weight – kg/m (lbs/ft) 5.80 (3.89)
Packaging – per case 4

Request Quote

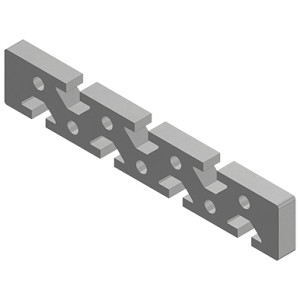

Item # M11128, 28x160H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 190.29 (4.567)
Iy – cm4 (in4) 30.84 (0.740)
Wx – cm3 (in3) 15.42 (0.941)
Wy – cm3 (in3) 38.06 (2.322)
Profile Section – cm2 (in2) 17.88 (2.771)
Weight – kg/m (lbs/ft) 4.94 (3.31)
Packaging – per case 5

Request Quote

Item # M10120, 40x120S Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 24.02 (0.577)
Iy – cm4 (in4) 220.02 (5.286)
Wx – cm3 (in3) 12.01 (0.733)
Wy – cm3 (in3) 36.67 (2.238)
Profile Section – cm2 (in2) 18.88 (2.927)
Weight – kg/m (lbs/ft) 5.10 (3.43)
Packaging – per case 4

Request Quote

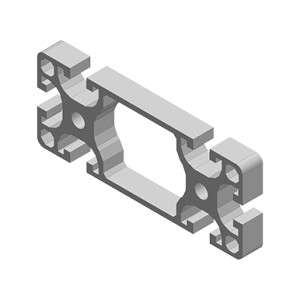

Item # M10100, 40x100S Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 25.64 (0.616)
Iy – cm4 (in4) 131.03 (3.148)
Wx – cm3 (in3) 12.82 (0.782)
Wy – cm3 (in3) 26.21 (1.599)
Profile Section – cm2 (in2) 12.43 (1.927)
Weight – kg/m (lbs/ft) 3.36 (2.26)
Packaging – per case 4

Request Quote

Item # M11098, 80x98H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 247.62 (5.949)
Iy – cm4 (in4) 346.34 (8.321)
Wx – cm3 (in3) 61.90 (3.778)
Wy – cm3 (in3) 86.58 (.002)
Profile Section – cm2 (in2) 39.77 (6.164)
Weight – kg/m (lbs/ft) 10.74 (7.22)

Request Quote

Item # M11088H, 80x80H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 186.89 (4.49)
Wx – cm3 (in3) 46.72 (2.851)
Profile Section – cm2 (in2) 206.35 (4.085)
Weight – kg/m (lbs/ft) 7.11 (4.78)
Packaging – per case 4

Request Quote

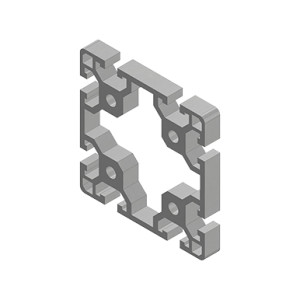

Item # M10088S, 80x80S Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 127.72 (3.068)
Wx – cm3 (in3) 31.93 (1.948)
Profile Section – cm2 (in2) 20.27 (3.142)
Weight – kg/m (lbs/ft) 5.28 (3.547)
Packaging – per case 4

Request Quote

Item # M11080H, 40x80H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 101.88 (2.451)
Iy – cm4 (in4) 26.85 (.643)
Wx – cm3 (in3) 25.34 (1.56)
Wy – cm3 (in3) 13.41 (.816)
Profile Section – cm2 (in2) 16.64 (2.45)
Weight – kg/m (lbs/ft) 4.55 (3.08)
Packaging – per case 8

Request Quote

Item # M10080S, 40x80S Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 67.22 (1.615)
Iy – cm4 (in4) 17.64 (.424)
Wx – cm3 (in3) 16.80 (1.025)
Wy – cm3 (in3) 8.93 (.545)
Profile Section – cm2 (in2) 11.56 (1.792)
Weight – kg/m (lbs/ft) 3.10 (2.08)
Packaging – per case 8

Request Quote

Item # M11040H, 40x40H Aluminum Extrusion – Heavy – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 14.18 (..340)
Wx – cm3 (in3) 7.09 (.433)
Profile Section – cm2 (in2) 9.22 (1.43)
Weight – kg/m (lbs/ft) 2.53 (1.69)
Packaging – per case 16

Request Quote

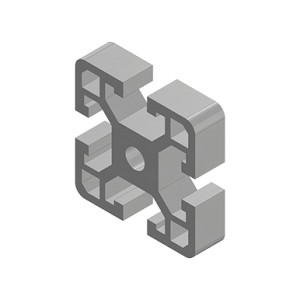

Item # M10040S, 40x40S Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 9.62 (.231)
Wx – cm3 (in3) 4.81 (.294)
Profile Section – cm2 (in2) 6.48 (1.004)
Weight – kg/m (lbs/ft) 1.78 (1.192)
Packaging – per case 16

Request Quote

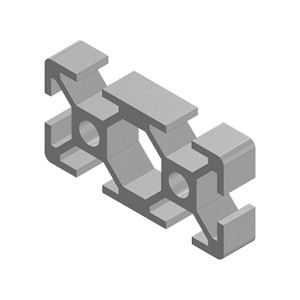

Item # M12428, 28×56 Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 16.52 (.397)
Iy – cm4 (in4) 4.68 (.112)
Wx – cm3 (in3) 5.90 (.360)
Wy – cm3 (in3) 3.34 (.204)
Profile Section – cm2 (in2) 5.65 (.876)
Weight – kg/m (lbs/ft) 1.56 (1.05)

Request Quote

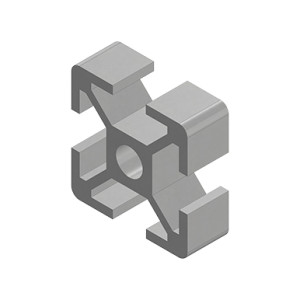

Item # M12028, 28×28 Aluminum Extrusion – 20 ft

Length – mm (ft) 6096 (20)
Material 6005 – T5 Aluminum
Finish Clear Anodized (For other finishes contact Macron)
Ix – cm4 (in4) 2.39 (.057)
Wx – cm3 (in3) 1.71 (.105)
Profile Section – cm2 (in2) 2.99 (.46)
Weight – kg/m (lbs/ft) 0.83 (.55)
